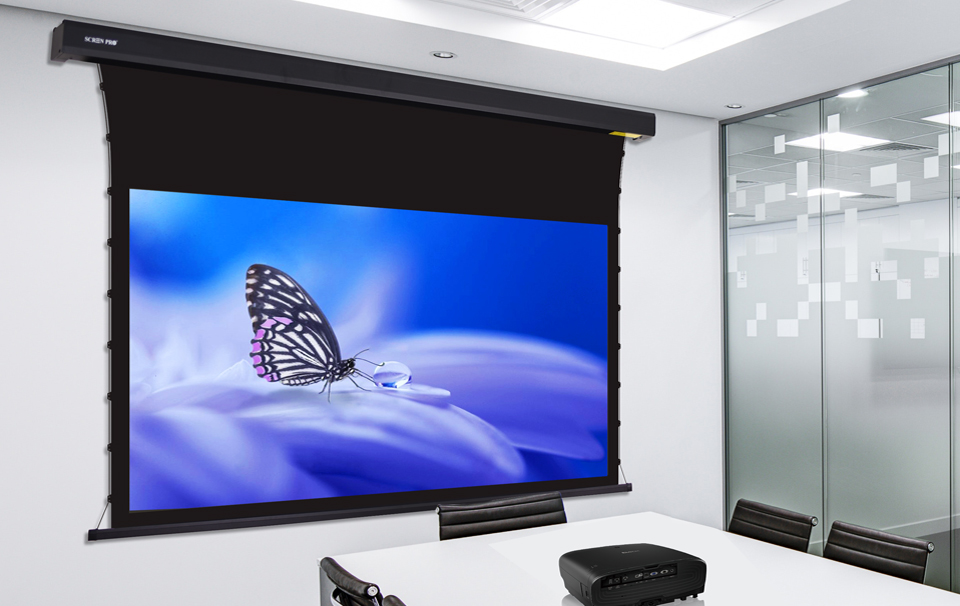

SP-Jampo Series Motorized ALR Screen For Ultra Short Throw Projectors

Purchase consulting
86-755-27154560
Collect
Model: AJ****SPR8
Recommended match
  • FEATURES
  • SURFACE
  • CONTRAST





SELECTING THE RIGHT SCREEN FOR YOUR

At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical

capabilities for your Home Theater project, please refer to the chart below.



SIZE <unit:mm>


FORMATDIAG.SIZEVIEWING AREABLACK BORDERSCREEN OVERALL LENGTHSCREEN OVERALL HEIGHTPACKAGE DIMENSIONSAPPROX. WEIGHTNOTE
(WxH)Top(B1)Bottom(B2)L/R(A)LBW1xH1xL1KgLbs
16:9100"2214x1245400506026781846170x220x276122.30 49.16
106"2347x1320400506028111921170x220x289423.09 50.90
110"2435x1370400506028991971170x220x298223.60 52.03
120"2657x1495400506031212096170x220x320425.00 55.12
135"2984x1688 40050603471 2326 235x235x379142.17 92.97 Jampo L
150"3320x186840050603857 2538 235x235x417746.10 101.63
16:1092"1982x1239400506024461840170x220x252919.90 43.87 Jampo
100"2154x1346400506026181947170x220x270121.75 47.95
106"2283x1427400506027472028170x220x283022.70 50.04
110"2370x1480400506028342081170x220x291723.40 51.59
120"2585x1616400506030492217170x220x313225.00 55.12
135"2903x1823 40050603390 2460 235x235x371041.45 91.38 Jampo L





SP- T Prism ALR Fabric for UST Projector










Fabric Specs

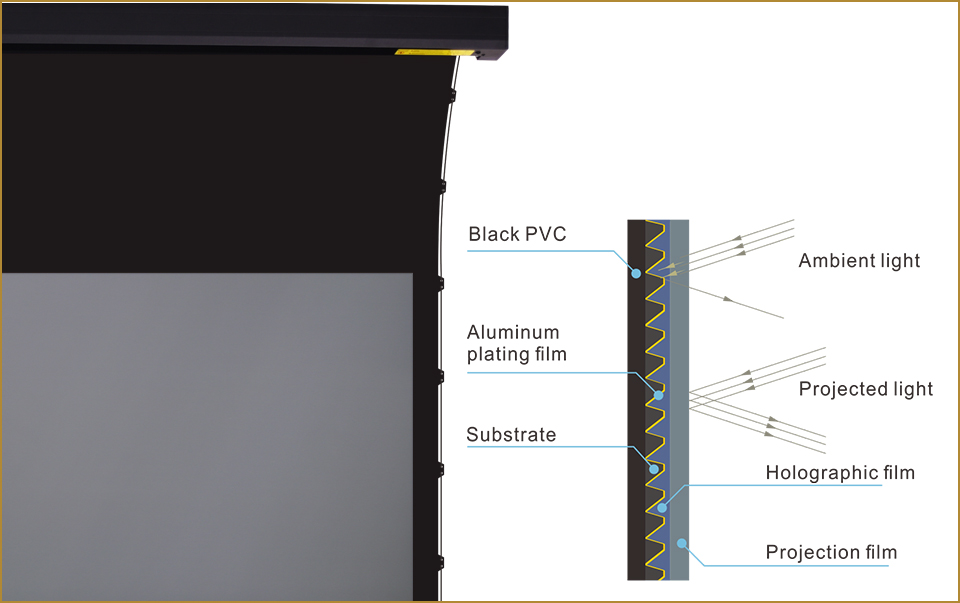

T prism ultra-short-focus anti-light screen, using special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 92% to achieve anti-ambient light function.Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected to the human eye, so that the viewer can view it under natural light. Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.

Applicable Products: Motorized tensioned ALR Screen (AK、AB、AJ), Electric Floor Rising ALR Screen (AD),Home Cinema Fixed Frame ALR Screen (AZ),Special In-Ceiling tensioned ALR Screen (AR)

Applicable environment: use in Complex Environment Lighting (500Lx) environment (sunlight accompanied by indoor light, spotlight, etc).

Matched Projector: short throw and UST projector(Projector Throw Ratio <0.4)

Applicable Places: High-end home Theater, bright environment





Fabric Parameter






Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.






宾至SP.jpg         1589784890468471.jpg           1589784888863577.jpg          1589784887804925.jpg       1589784889624073.jpg


ProductBenz Series Motorized ALR Screen—ABJampo Series Motorized ALR Screen—AJ

Kinglux Series Motorized ALR Screen—AK

Floor Rising Motorized ALR Screen—ADIn-Ceiling Motorized ALR Screen—AR
TypeTab-Tensioned Motorized ScreenTab-Tensioned Motorized ScreenTab-Tensioned Motorized ScreenTab-Motorized Floor Rising ScreenCeiling Recessed Tab-Tensioned Motorized Screen
HousingSteelAluminumAluminumAluminumAluminum
Color OptionsWhite | BlackWhite | BlackSilver | White | BlackBlackWhite
Available Sizes100" ~150"(16:9, 16:10, 2.35:1)100" ~150"(16:9, 16:10, 2.35:1)100" ~120"(16:9, 16:10, 2.35:1)92" ~ 133"(16:9, 16:10, 2.35:1)100" ~150"(16:9, 16:10, 2.35:1)
MotorTubular MotorTubular MotorE-Limit Tubular MotorTubular MotorE-Limit Tubular Motor
Control Options868MHz  IR remote 868MHz IR remote or RF remote 868MHz IR remote or RF remote 868MHz  IR remote +RF remote 868MHz  IR remote +RF remote
Low Voltage TriggerOptionalOptionalOptionalOptionalOptional
Limit AdjustmentManuallyManuallyRemote ManuallyRemote
Expansion PortN/ARS485/RS232、DC AMXRS485/RS232、DC AMXN/ARS485/RS232、DC AMX
Support Projector Ceiling Installation

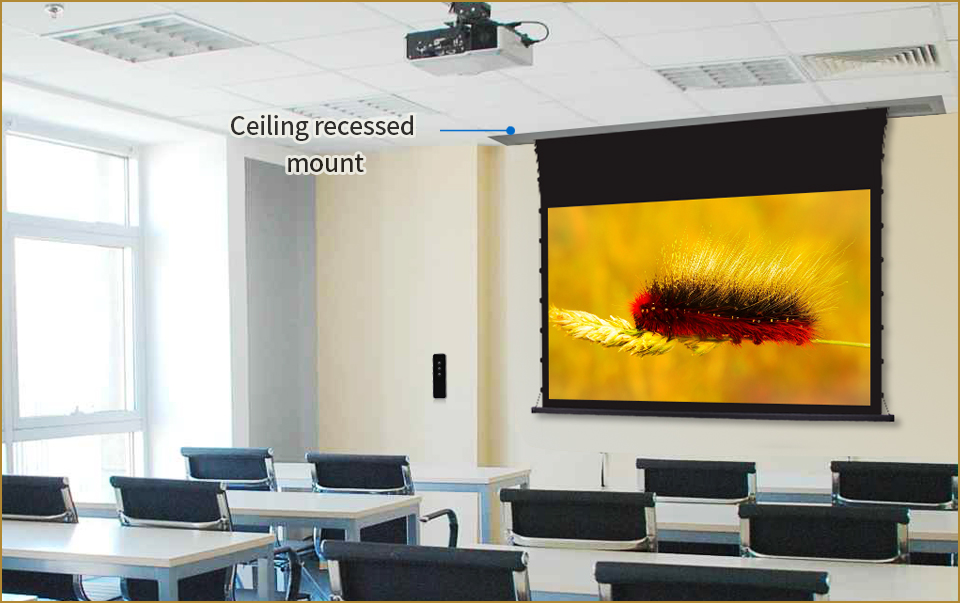

InstallationSuspending | Wall Mount | Ceiling MountSuspending | Wall Mount | Ceiling MountSuspending | Wall Mount | Ceiling MountFloor | Recessed MountingCeiling Recessed

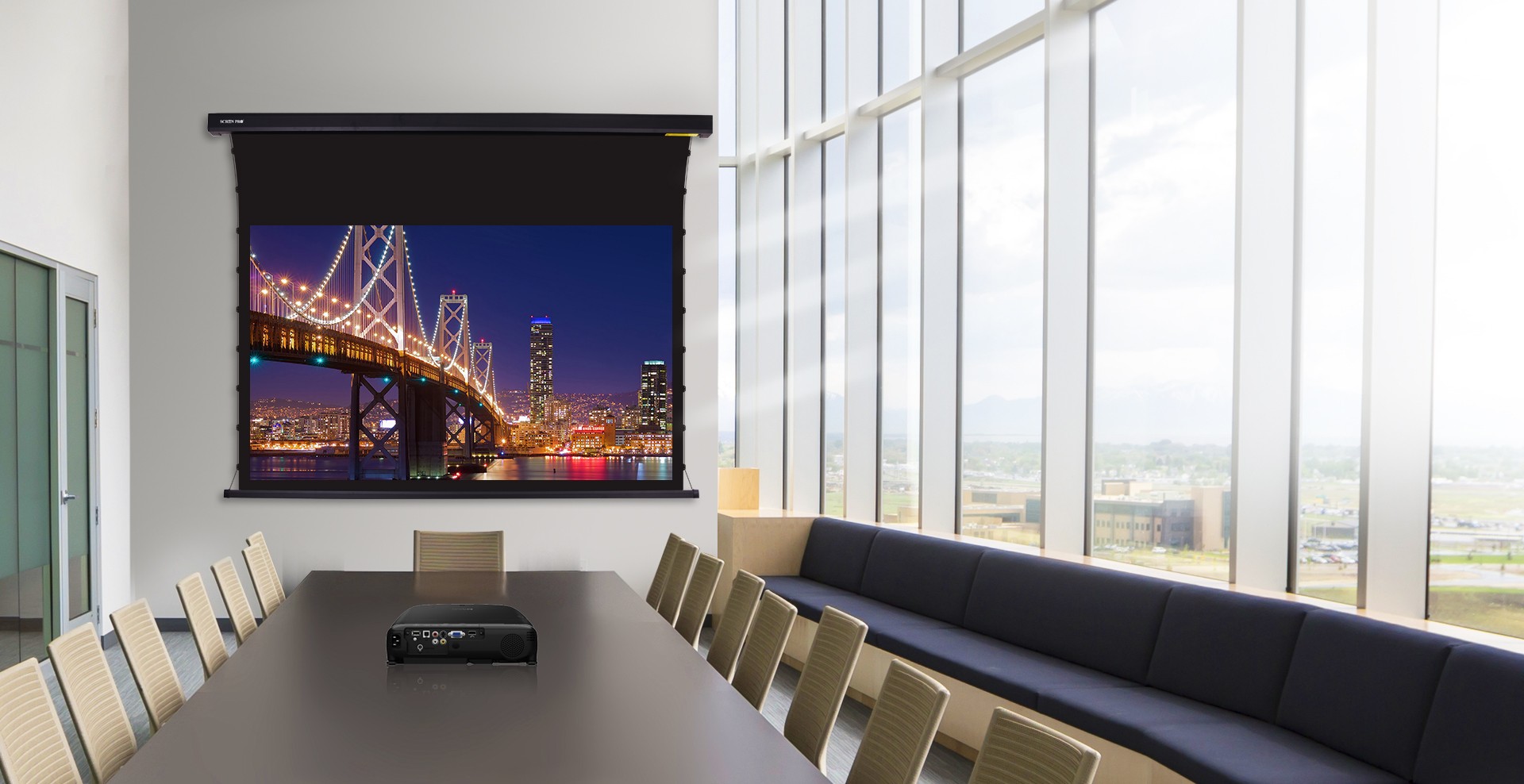

Application

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

● Hotel

etc.
