HOME >> PRODUCT >>ALR Screen for UST Projector >>Motorized ALR Screen >> SP-Floor Rising Motorized ALR Screen For UST Projectors
Product Detail

SP-Floor Rising Motorized ALR Screen For UST Projectors

Purchase consulting
86-755-27154560
Collect
Model: AD****SPR
  • FEATURES
  • SURFACE
  • CONTRAST


Screen for Living Room

Electric ALR Floor Screen for UST Projector

T Prism ALR Screen by SCREENPRO®











New Screen for Living Room

If you don't want a fixed frame screen or ceiling mount electric screen, then the Electric ALR floor screen will be ideal option. 4K ultra-hd imaging, even if used in the bright living room during the day, can also experience the bright, vivid picture, electric screen structure design, can be hidden installation, do not take up the living room space.











What is T Prism?

The fabric is made up of trapezoids structure which separate the reflecting surface & Absorbing surface. By rejecting ambient light from directly above, and perpendicular to the screen, T Prism accurately reproduces bright, colorful images, offering ideal image quality and enhanced contrast in any application.












3D Nano - beschichtung

The surface is coated with 3D nano-beschichtung which combines the contrast and gain perfectly reaching 20000:1 cinema standard. When the SCREENPRO® T-prism anti-light screen is compared with normal matte white screen, the picture comes alive and maintains the contrast of the projector.











Unboxing to Operate

No need to install, you can move it at will. It supports floor mount style,hidden a variety of display ways, suitable for home theater and high-end mobile conference, mobile display.















R8 Built-in Wireless Control

The R8 control system independently developed by SCREENPRO®. It is equipped with 868MHz  remote control, which is convenient and fast to operate and supports limit adjustment. The quiet tubular motor, which is with UL, CE and 3C certification passed, operates smoothly with low noise.











User Friendly

Silent tubular motor drives double v-shaped structure bracket, with uniform force, to avoid stretching deformation of the fabric, and the use of infrared automatic induction, anti-clamping hand device, in the process of closing and closing in case of obstacles, automatic stop, safe and reliable.





















SELECTING THE RIGHT SCREEN FOR YOUR

At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical

capabilities for your Home Theater project, please refer to the chart below.


SIZE <unit:mm>


FORMATDIAG.SIZEVIEWING AREABLACK BORDERSCREEN OVERALL LENGTHSCREEN OVERALL HEIGHTPACKAGE DIMENSIONSAPPROX. WEIGHTNOTE
(WxH)Top(B1)bottom(B2)L/R(A)LBW1xH1xL1KgLbs
16:9100"2214x1245502405024851510280x180x26353271
120"2656x1494502405029271759280x180x30774395
135"2984x1688502405032551953280x180x340550110
16:10100"2154x1346502405024251611280x180x25753271
110"2369x1481502405026401746280x180x27903986
120"2585x1615502405028561880280x180x30064395
135"2903x1823502405031742088280x180x332450110



PRODUCT NOTES

Screen length calculation formula: L = W + 271mm

Formula for calculating package length: L1 = W + 421mm

Packaging volume calculation formula: V=0.0504x(W+421/1000)m3

Explanation:

1. The allowable error between the theoretical size and the actual size of the projected area is ± 5mm, and the allowable error between the physical size and the size in the table is ± 3mm,

please refer to the actual one.

2.The allowable error between the actual weight and the weight in the table is ± 1kg / 2.2Lbs

3.H1 refers to the height dimension between the ceiling and the ceiling

4. The length of the screw rod needs to be determined according to H2. The screw size must be cut to the required length before installation.

• Specifications subject to change without notice.

• Custom formats and sizes are available upon request.

• Detail dimensional drawings, wiring diagrams and installation instructions available upon request.


* Want to know more? Email us: market@samsav.cn

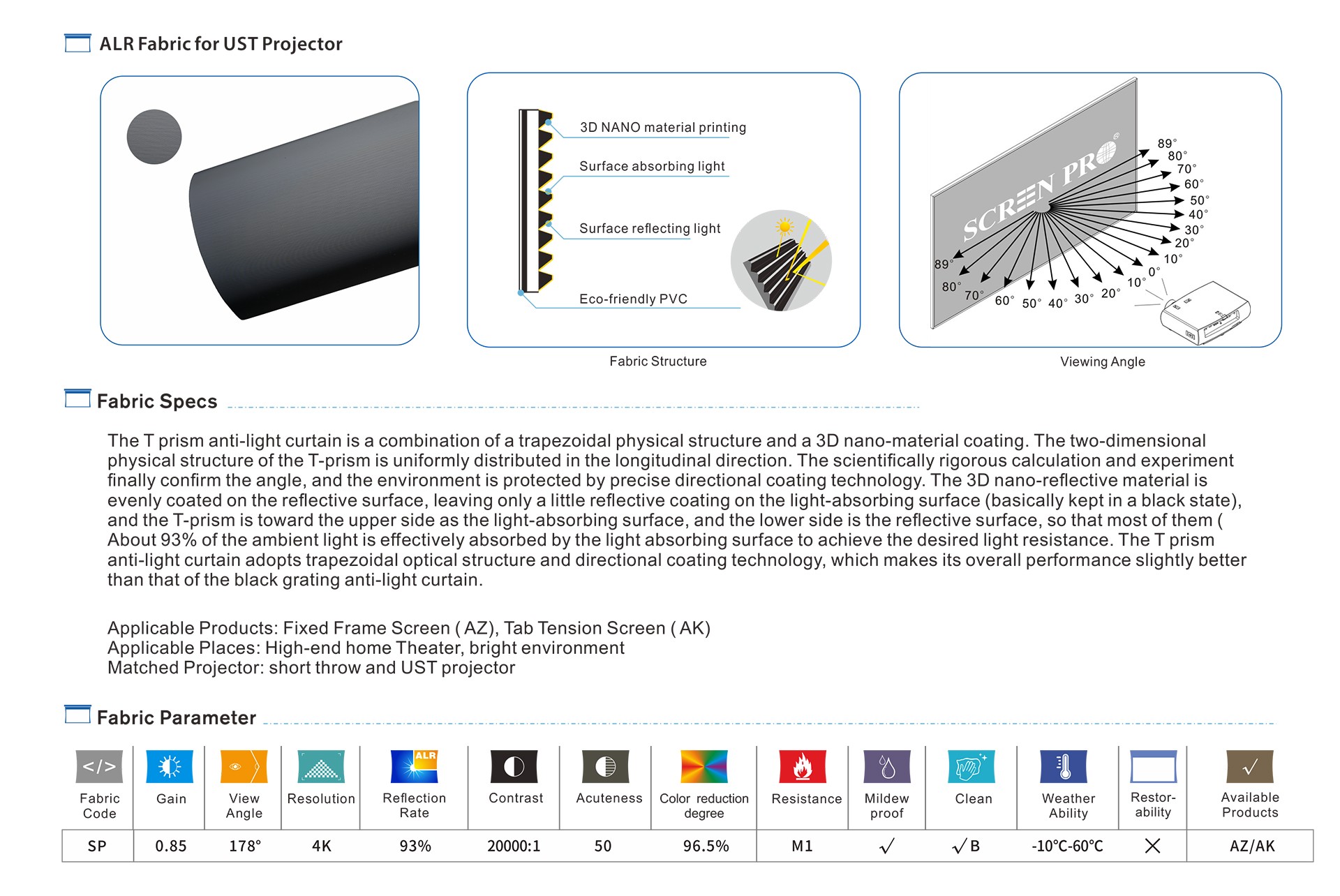

SP- T Prism ALR Fabric for UST Projector










Fabric Specs



T prism ultra-short-focus anti-light screen, using special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 92% to achieve anti-ambient light function.Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected to the human eye, so that the viewer can view it under natural light. Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.

Applicable Products: Motorized tensioned ALR Screen (AK、AB、AJ), Electric Floor Rising ALR Screen (AD),Home Cinema Fixed Frame ALR Screen (AZ),Special In-Ceiling tensioned ALR Screen (AR)

Applicable environment: use in Complex Environment Lighting (500Lx) environment (sunlight accompanied by indoor light, spotlight, etc).

Matched Projector: short throw and UST projector(Projector Throw Ratio <0.4)

Applicable Places: High-end home Theater, bright environment





Fabric Parameter






Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.






宾至SP.jpg         1589784890468471.jpg           1589784888863577.jpg          1589784887804925.jpg       1589784889624073.jpg


ProductBenz Series Motorized ALR Screen—ABJampo Series Motorized ALR Screen—AJ

Kinglux Series Motorized ALR Screen—AK

Floor Rising Motorized ALR Screen—ADIn-Ceiling Motorized ALR Screen—AR
TypeTab-Tensioned Motorized ScreenTab-Tensioned Motorized ScreenTab-Tensioned Motorized ScreenTab-Motorized Floor Rising ScreenCeiling Recessed Tab-Tensioned Motorized Screen
HousingSteelAluminumAluminumAluminumAluminum
Color OptionsWhite | BlackWhite | BlackSilver | White | BlackBlackWhite
Available Sizes100" ~150"(16:9, 16:10, 2.35:1)100" ~150"(16:9, 16:10, 2.35:1)100" ~120"(16:9, 16:10, 2.35:1)92" ~ 133"(16:9, 16:10, 2.35:1)100" ~150"(16:9, 16:10, 2.35:1)
MotorTubular MotorTubular MotorE-Limit Tubular MotorTubular MotorE-Limit Tubular Motor
Control Options868MHz  IR remote 868MHz IR remote or RF remote 868MHz IR remote or RF remote 868MHz  IR remote +RF remote 868MHz  IR remote +RF remote
Low Voltage TriggerOptionalOptionalOptionalOptionalOptional
Limit AdjustmentManuallyManuallyRemote ManuallyRemote
Expansion PortN/ARS485/RS232、DC AMXRS485/RS232、DC AMXN/ARS485/RS232、DC AMX
Support Projector Ceiling Installation
InstallationSuspending | Wall Mount | Ceiling MountSuspending | Wall Mount | Ceiling MountSuspending | Wall Mount | Ceiling MountFloor | Recessed MountingCeiling Recessed
Application

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

etc.

● Home Theater

● Conference room

● Hotel

etc.
