HOME >> PRODUCT >>ALR Screen for UST Projector >>Fixed ALR Screen >> SY-Laser TV Hard Frame ALR Screen
Product Detail

SY-Laser TV Hard Frame ALR Screen

Purchase consulting
86-755-27154560
Collect
Model: AY****SY
  • FEATURES
  • SURFACE
  • CONTRAST






SIZE <unit:mm>


FORMAT DIAG.SIZE VIEWING AREA OVERALL DIMENSIONS PACKAGE DIMENSIONS APPROX. WEIGHT NOTE
(WxH) LxB W1xH1xL1 Kg Lbs
16:9 100" 2214x1245 2232x1263 2358x1361x150
120" 2656x1494 2675x1513 2800x1610x150
135" 2984x1688 3008x1706 3128x1804x150
150" 3320x1867 3338x1886 3464x1983x150
16:10 100" 2154x1346 2172x1364 2298x1462x150
120" 2585x1615 2603x1634 2729x1731x150
135" 2903x1823 2927x1841 3047x1939x150
140" 3015x1885 3033x1903 3159x2001x150
4:3 100" 2032x1524 2056x1542 2176x1640x150
119" 2418x1814 2442x1832 2562x1930x150
126" 2560x1920 2584x1938 2704x2036x150
135" 2743x2057 2767x2075 2887x2173x150



PRODUCT NOTES

Screen length calculation formula: L = W + 271mm

Formula for calculating package length: L1 = W + 421mm

Packaging volume calculation formula: V=0.0504x(W+421/1000)m3

Explanation:

1. The allowable error between the theoretical size and the actual size of the projected area is ± 5mm, and the allowable error between the physical size and the size in the table is ± 3mm,

please refer to the actual one.

2.The allowable error between the actual weight and the weight in the table is ± 1kg / 2.2Lbs

3.H1 refers to the height dimension between the ceiling and the ceiling

4. The length of the screw rod needs to be determined according to H2. The screw size must be cut to the required length before installation.

• Specifications subject to change without notice.

• Custom formats and sizes are available upon request.

• Detail dimensional drawings, wiring diagrams and installation instructions available upon request.



* Want to know more? Email us: market@samsav.cn



SY- T Prism ALR Fabric for UST Projector










Fabric Specs



T prism ultra-short-focus anti-light screen, using special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 92% to achieve anti-ambient light function.Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected to the human eye, so that the viewer can view it under natural light. Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.

Applicable Products: Hard  Fixed Frame ALR Screen (AY)

Applicable environment: use in Complex Environment Lighting (500Lx) environment (sunlight accompanied by indoor light, spotlight, etc).

Matched Projector: short throw and UST projector(Projector Throw Ratio <0.4)

Applicable Places: High-end home Theater, bright environment





Fabric Parameter






Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.



                                            硬屏SP.jpg                               全面屏SP.jpg

ProductHard Frame ALR Screen-AY7mm edge ALR Screen-AZ
FrameAluminumAluminum
Bezel Size12mm(0.5") 7mm(0.3")
Color OptionsBlackBlack
Available Sizes100" ~150"100" ~150"

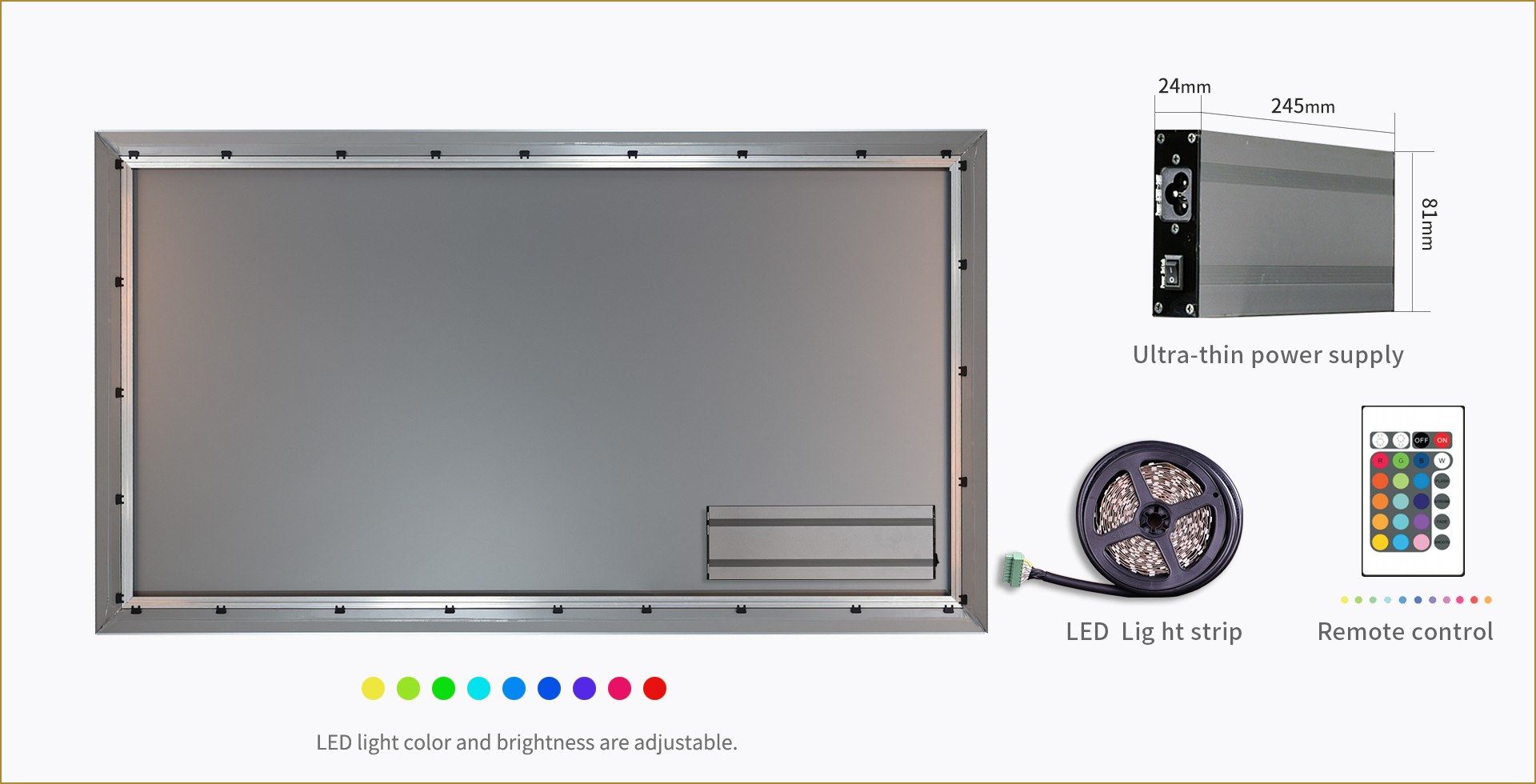

LED Backlight KitN/AOptional
Pre-Assembled

×

InstallationWall MountWall Mount
Application

● Home Theater

● Conference room

● Museum Exhibits

● Classroom

etc.

● Home Theater

● Conference room

● Museum Exhibits

● Classroom

etc.
