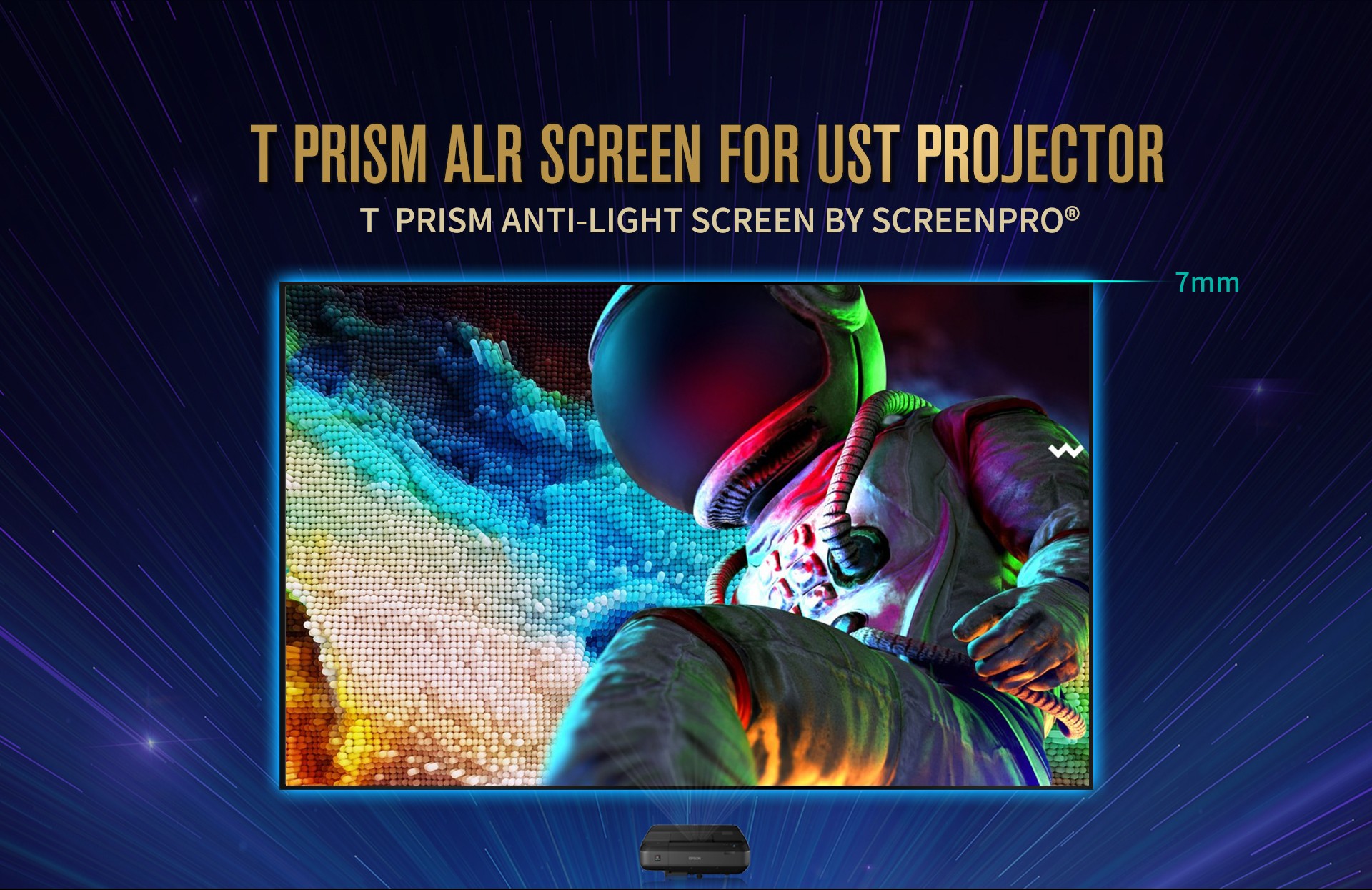

SP-7mm Bezel Frame Series ALR Screen For Ultra Short Throw Projectors

Purchase consulting
86-755-27154560
Collect
Model: AZ****SPD
  • FEATURES
  • SURFACE
  • CONTRAST













T Prism Anti-Light  No limitation

Special optical structure rejecting ambient light from directly above, and perpendicular to the screen. T Prism accurately reproduces bright, colorful images, and maintains the contrast of the projector.

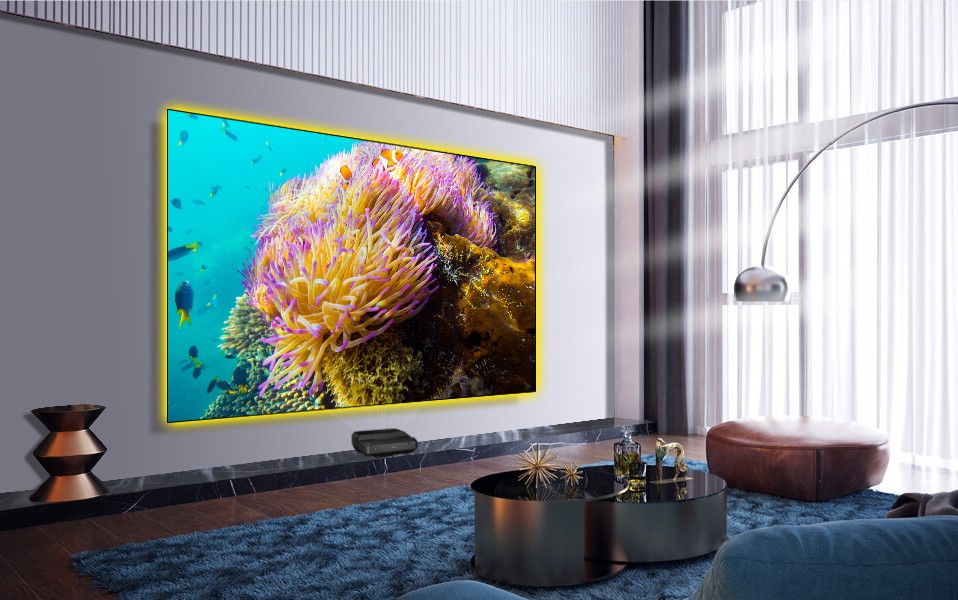

Home Cinema

Available in standard diagonals up to 150'' in 16:9/16:10. With a nearly perfect viewing angle of 178 degrees, our T Prism ALR screen is capable of being viewed from extreme off axis positions. Super thin frame and LED light makes it perfect for home cinema.

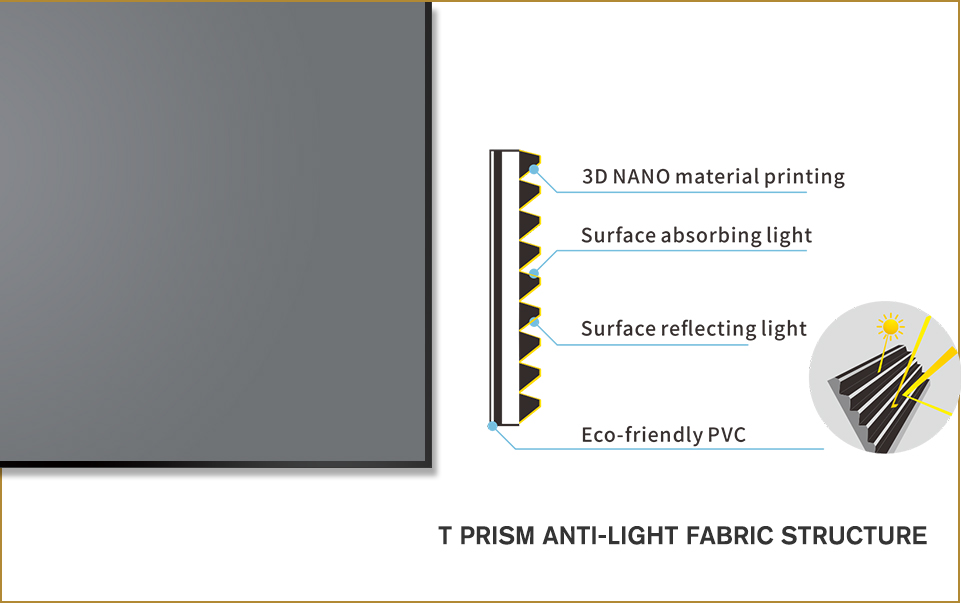

What is T Prism?

The fabric is made up of trapezoids structure which separate the reflecting surface & Absorbing surface. By rejecting ambient light from directly above, and perpendicular to the screen, T Prism accurately reproduces bright, colorful images, offering ideal image quality and enhanced contrast in any application.

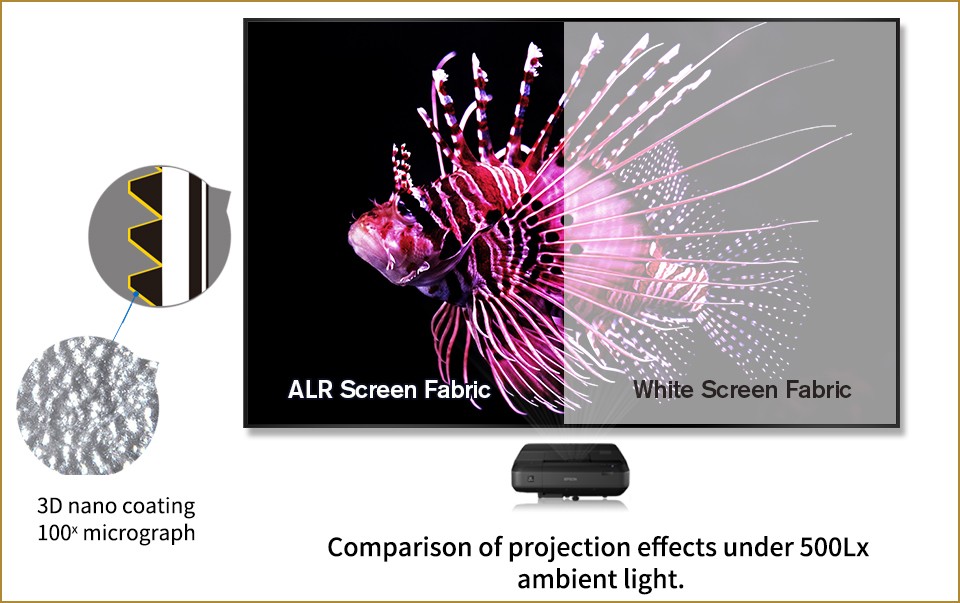

3D Nano - beschichtung

The surface is coated with 3D nano-beschichtung which combines the contrast and gain perfectly reaching 20000:1 cinema standard. When the SCREENPRO® T-prism anti-light screen is compared with normal matte white screen, the picture comes alive and maintains the contrast of the projector.

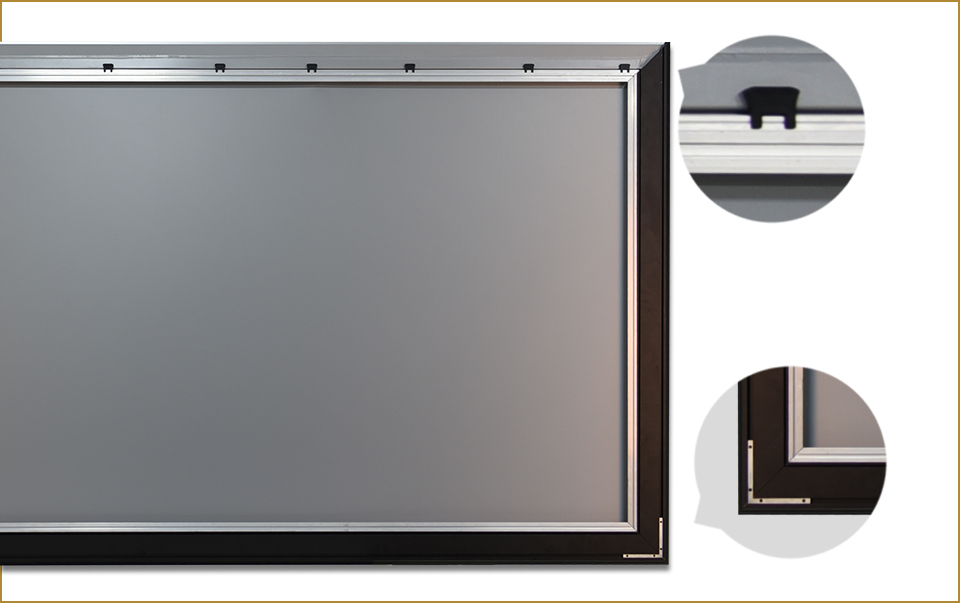

Unique Fabric Tension design

user friendly

All aluminum structure, reinforced corner seamless butt joint, high strength, light weight, totally diffirent to the traditional spring fixed screen, innovative sliding button installation design, saving time and effort, simple and practical, convenient and fast.

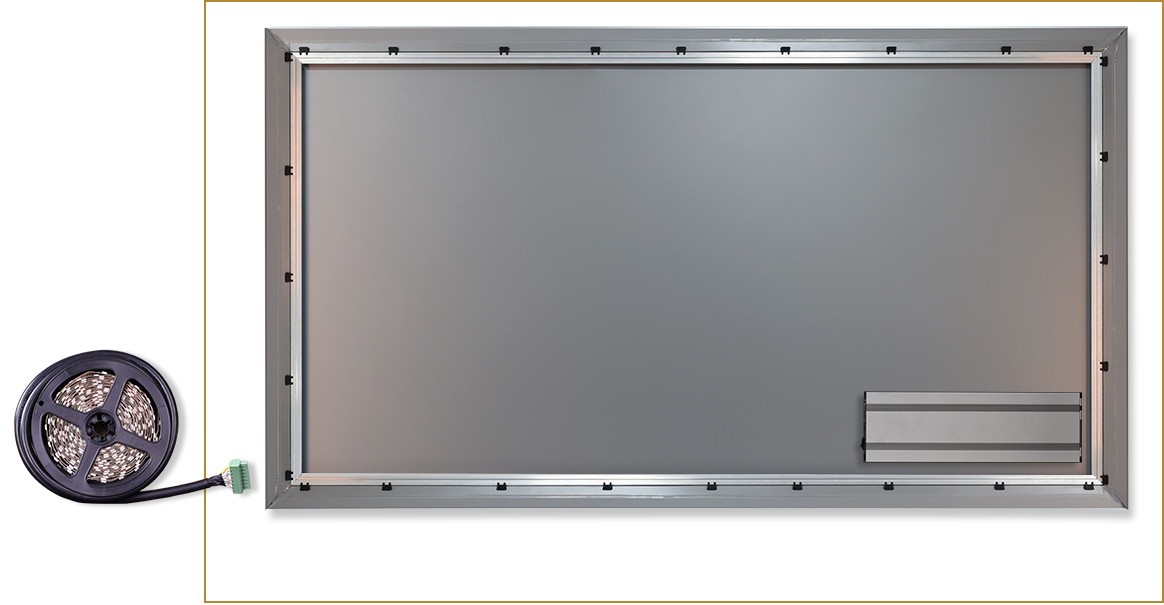

Ultra-Thin LED Power Supply

The backlight is the LED lamp which can switch colors, flicker and change gradually to meet your needs in any scene atmosphere. Already passed UL, CE and 3C certification, and has its own safety protection function. It can be hidden and installed behind the screen without increasing the screen thickness.

















SIZE <unit:mm>


FORMATDIAG.SIZEVIEWING AREAOVERALL DIMENSIONSPACKAGE DIMENSIONSAPPROX. WEIGHT(Kg)APPROX. WEIGHT(Lbs)NOTE
(WxH)LBStandard            (W1xH1xL1)Split Frame             (W1xH1xL1)StandardSplit FrameStandardSplit Frame
16:9100"2214x12452229 1260 315x140x1500260x140x231423.55 23.11 51.91 50.95
120"2657x14952672 1510 315x140x1750260x140x275726.48 26.10 58.38 57.55
135"2984x16882999 1703 315x140x1943260x140x308428.45 28.12 62.71 61.98
150"3320x18683335 1883 315x140x2123260x140x342031.08 30.82 68.51 67.95
16:10100"2154x13462169 1361 315x140x1601260x140x225425.45 24.81 56.12 54.70
120"2585x16162600 1631 315x140x1871260x140x268528.11 27.51 61.97 60.66
135"2903x18232918 1838 315x140x2078260x140x230329.90 29.35 65.92 64.70
140"3010x18903025 1905 315x140x2145260x140x237032.35 31.84 71.32 70.19
2.35:1100"2337x9942352 1009 315x140x1261260x140x243722.31 22.21 49.18 48.96
119"2781x11832796 1198 315x140x1483260x140x288124.39 24.44 53.76 53.87
126"2945x12532960 1268 315x140x1565260x140x304525.28 25.28 55.74 55.73
135"3155x13433170 1358 315x140x16467260x140x325525.98 26.14 57.28 57.62



PRODUCT NOTES

Screen length calculation formula: L = W + 15mm

Packaging volume calculation formula: Split Frame/Non-joint: V=0.0364x(W+100/1000)m3   [16:9/16:10]Joint: V=0.0441x(H+255/1000)m3     [2.35:1]Standard/Joint: V=0.0441x(W÷2+92.5/1000)m3

Explanation:

1. The allowable error between the theoretical size and the actual size of the projected area is ± 5mm, and the allowable error between the physical size and the size in the table is ± 3mm,

please refer to the actual one.

2.The allowable error between the actual weight and the weight in the table is ± 1kg / 2.2Lbs

3.H1 refers to the height dimension between the ceiling and the ceiling

4. The length of the screw rod needs to be determined according to H2. The screw size must be cut to the required length before installation.

• Specifications subject to change without notice.

• Custom formats and sizes are available upon request.

• Detail dimensional drawings, wiring diagrams and installation instructions available upon request.


* Want to know more? Email us: market@samsav.cn



SP- T Prism ALR Fabric for UST Projector










Fabric Specs



T prism ultra-short-focus anti-light screen, using special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 92% to achieve anti-ambient light function.Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected to the human eye, so that the viewer can view it under natural light. Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.

Applicable Products: Motorized tensioned ALR Screen (AK、AB、AJ), Electric Floor Rising ALR Screen (AD),Home Cinema Fixed Frame ALR Screen (AZ),Special In-Ceiling tensioned ALR Screen (AR)

Applicable environment: use in Complex Environment Lighting (500Lx) environment (sunlight accompanied by indoor light, spotlight, etc).

Matched Projector: short throw and UST projector(Projector Throw Ratio <0.4)

Applicable Places: High-end home Theater, bright environment





Fabric Parameter






Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A- Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

  B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.



                                            硬屏SP.jpg                               全面屏SP.jpg

ProductHard Frame ALR Screen-AY7mm edge ALR Screen-AZ
FrameAluminumAluminum
Bezel Size12mm(0.5") 7mm(0.3")
Color OptionsBlackBlack
Available Sizes100" ~150"100" ~150"
LED Backlight KitN/AOptional
Pre-Assembled

×

InstallationWall MountWall Mount
Application

● Home Theater

● Conference room

● Museum Exhibits

● Classroom

etc.

● Home Theater

● Conference room

● Museum Exhibits

● Classroom

etc.
