Self-Rising ALR Screen - AD雅琪备份

Tab-Tensioned Screen for Ultra Short Throw Projectors

[Motorized self-rising ALR screen series]

  • Front projection T-Prism optical material, for environments with high ambient light
  • Deliver exceptionally clear images even in brightly lit surroundings
  • Low noise retraction
  • IR/RF remote control operation
  • Optional on wall bracket
  • Available screen size Max: 150” (130.7" x 73.5") in 16:9
  • Designed for ultra or short-throw projectors. Project within a short distance without shadowing the picture



SCREENPRO sales service

overview & Features SPECS SCREEN MATERIALS GALLERY FAQs

SCREENPRO floor rising screen in different ratioSCREENPRO floor rising screen in different ratio

SCREENPRO floor rising screen in front of window

Self-Rising UST ALR Screen.

SCREENPRO projection screen under light environment

Leveled-up Experience INTRODUCING THE NEW NON-TENSIONED ULTRA VIEW SCREEN.

SCREENPRO motorized floor rising screen

80% Ceiling Ambient Light Resistance Image Quality Improved, Colorful Dynamic & Intensely Cinematic .

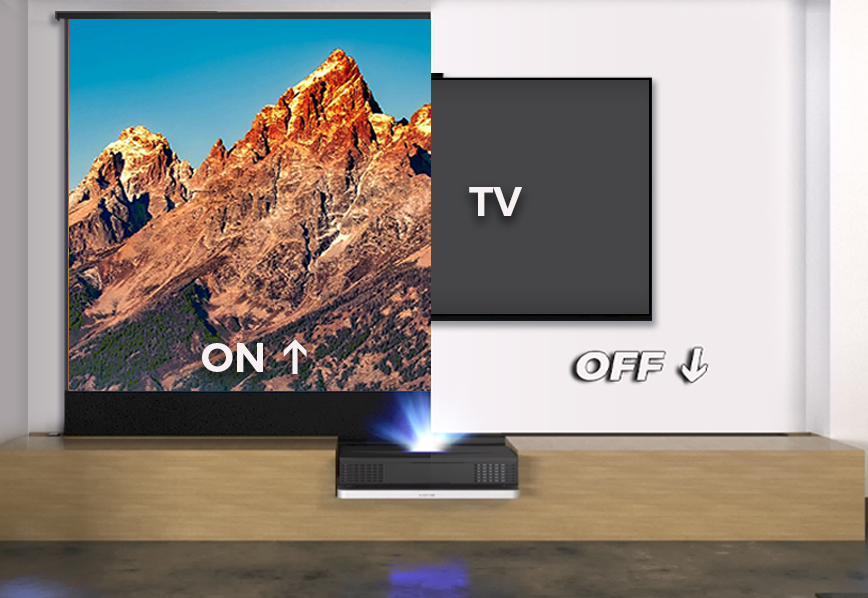

Projector triggered motorized screen rolling down

Light Up Your World

See more and brighter colors than ever

See the world come vividly to life with unprecedented color and pure black contrast. T Prism Compared with the standard white material, T-Prism not only delivers higher contrast but also ALR features, so you won’t miss a single detail in dazzling light or deep shadow.

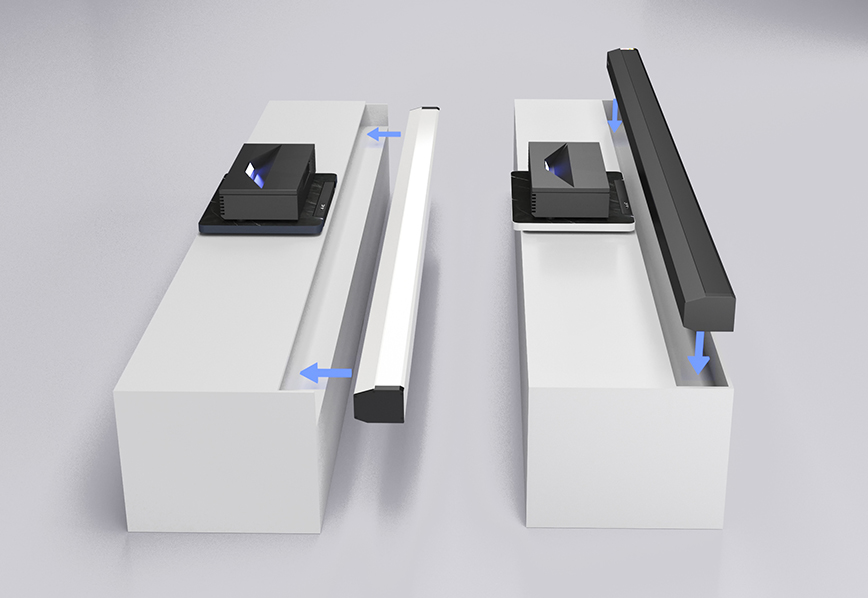

SCREENPRO ALR screen features description

SCREENPRO

Adjusting Screen Height Manually / Set Your Screen Height With One Remote

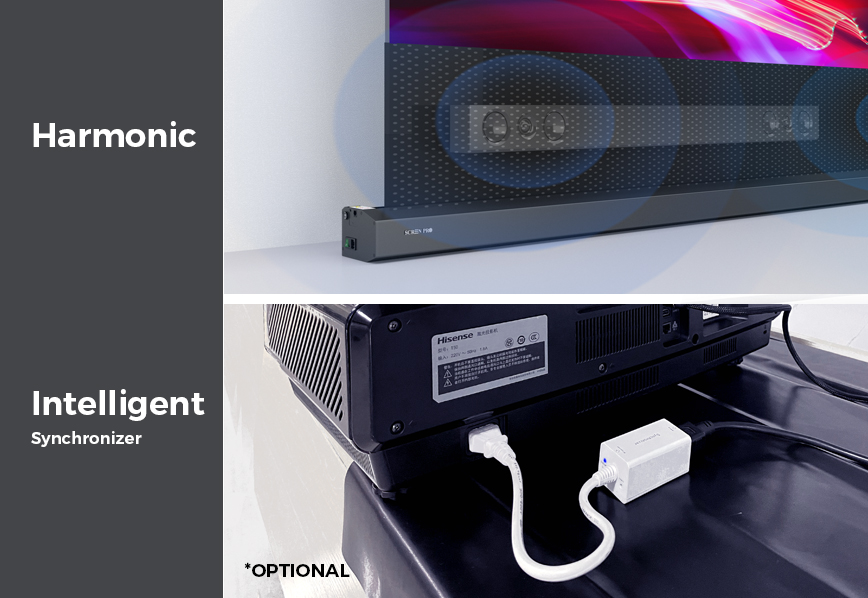

SCREENPRO ALR screen front and back

Stable and Reliable

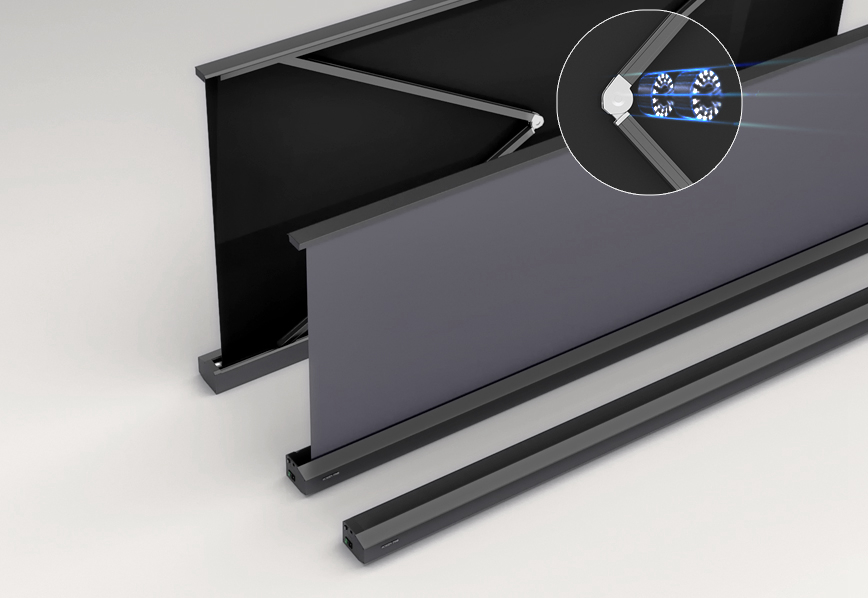

Duo V-SHAPED ARM WITH UNIQUE SPHERICAL BEARING

SCREENPRO ALR screen features description

ELEGANT

with.black

SCREENPRO ALR screen front and back

ELEGANT

with.black

SCREENPRO ALR screen features description

ELEGANT

with.black

SCREENPRO ALR screen front and back

ELEGANT

with.black

SCREENPRO projector screen material sample

Looking for a screen

material sample

(A4 size) to try on?


SHOP NOW




SELECT THE RIGHT SCREEN FOR YOUR SPACE

At SCREENPRO, we're proud of our wide selection of high-quality projection screens.

To help you quickly find the right screen model with the right technical capabilities for your Home Theater project, please refer to the chart below.



FORMAT DIAG.SIZE VIEWING SIZE BLACK BORDER SCREEN OVERALL LENGTH SCREEN OVERALL HEIGHT PACKAGE DIMENSIONS WOODEN CRATE PACKAGING APPROX. WEIGHT
Top Bottom (L/R)
D WxH B1 B2 A L B L1xW1xH1   L2xW2xH2 Kg Lbs
16:9 92˝ 2037x1145 35 400 55 2272 1578 2332x235x235 2362x250x385 32 70
100˝ 2214x1245 35 400 55 2449 1680 2509x235x235 2539x250x385 33 73
110˝ 2435x1370 35 400 55 2670 1805 2730x235x235 2760x250x385 36 79
120˝ 2656x1494 35 400 55 2891 1929 2951x235x235 2981x250x385 38 84
135˝ 2988x1681 35 350 55 3223 2116 3283x235x235 3313x250x385 42 92
150˝ 3320x1868 35 300 55 3555 2253 3615x235x235 3645x250x385 46 100



NOTE:

L=housing length + power supply occupancy(≈70mm)
L-70mm = Housing Length



calculator






What is T-Prism?

SCREENPRO® T-Prism is an anti-light feature material, using a special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 86% to achieve the ambient light rejection function. Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected by the human eye so that the viewer can view it under natural light.
Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.





T-Prism Screen 4 Advantage

























Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."

Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.

WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.






Motorized ALR Screen - AJ
Motorized ALR Screen - AJ
Motorized ALR Screen - AJ
Application
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Ceiling Projection
Expansion Port
RS485/RS232、DC AMX
RS485/RS232、DC AMX
RS485/RS232、DC AMX
Installation
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Low Voltage Trigger
Optional
Optional
Optional
Limit Adjustment
Manually
Manually
Manually
Control Options
868MHz RF remote
868MHz RF remote
868MHz RF remote
Motor
T Type Tubular Motor
T Type Tubular Motor
T Type Tubular Motor
Available Sizes
150
150
150
Color Options
White | Black
White | Black
White | Black
Housing
Aluminum
Aluminum
Aluminum

Can I choose an ALR material such as fabric SP/8K/T8 for my Quick-Fold series screen?

Sadly, it can not match the quick-fold series. Folding the screen may create creases in the material.

Can I purchase a small sample of the material?

Yes, you can buy a screen material sample by clicking HERE.

What is the voltage for the SCREEN PRO motorized series? Can it be used abroad?

110v / 220v. No power transformer is required. We ensure that the voltage is correct for your shipping address.

How many types of projection screens do you produce?

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, etc. Clicking HERE.

Can I customize the screen size?

Yes, the size can be customized from 60 inches to 500 inches plus. Clicking HERE.

What are your specialties?

Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.

What's your Mode of Transport?

A:Air Transport(By Air)
B:Water/Sea Transport(By Water/Sea)
C:Road/Truck Transport(By Road/Truck)
D:Rail Transport(By Rail)
E:Mail Transport(By Mail)
F:Other Transport

Usually, we ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...

Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.
