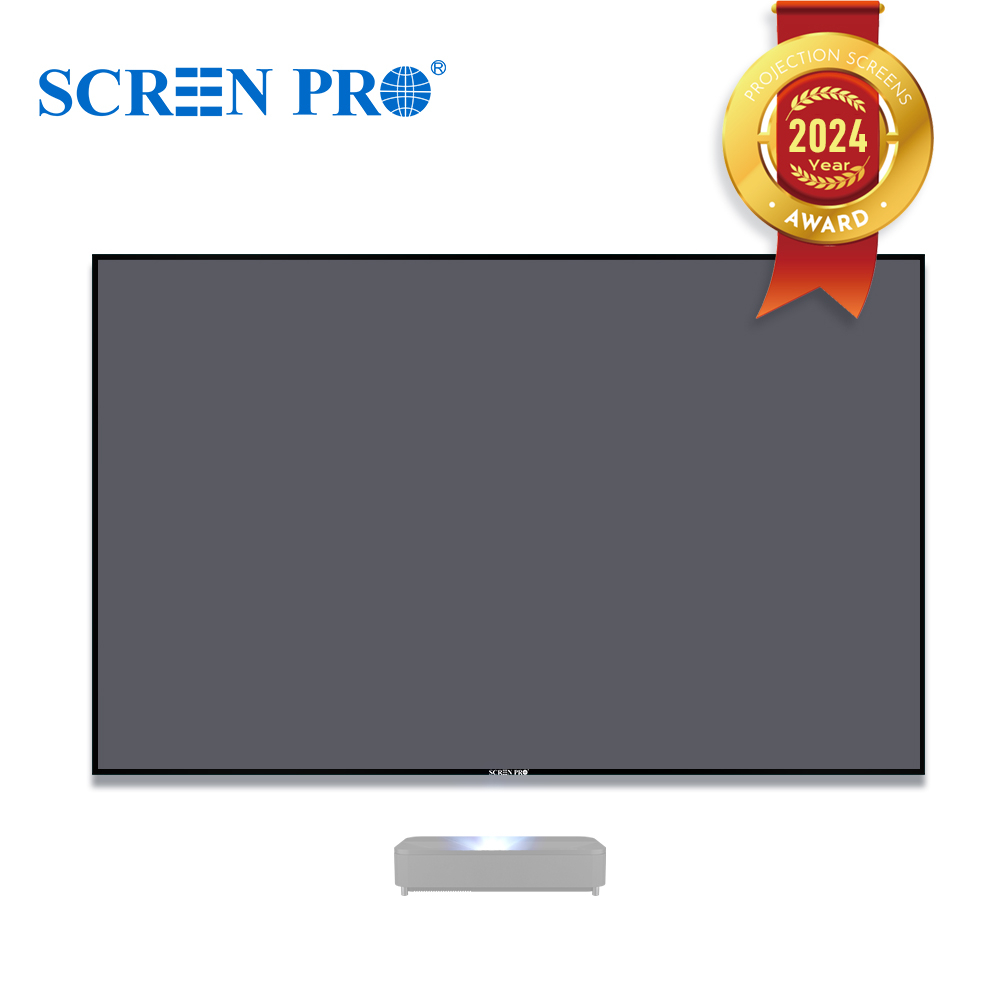

7mm Frame ALR Screen - AZ

Thin Bezel Frame ALR Screen for Ultra Short Throw Projectors

[framed ALR screen series]

• Black aluminum lightweight profile design complements your home's interior
• Better ALR effect (93%) allows truly spectacular picture quality
• 178° superb widespread viewing angle
• Anti-dust technic ensure the long-term flat surface and easy maintenance
• 7mm ultra-thin frame width brings you the HDTV visual effect
• Unique fabric tension design, easy & quick installation
• Ideal for meeting rooms, retail stores, home entertainment, and residential applications
• Add-on option: LED Backlight Kit
• Available screen size Max: 150” (130.7" x 73.5") in 16:9

SCREENPRO sales service


OVERVIEW & FEATURES SPECS SCREEN MATERIALS GALLERY FAQs

ALR Screen for Ultra Short Throw ProjectorsALR Screen for Ultra Short Throw Projectors





150 inches UST projectors screen

Superb Large Size

Our Best Innovation Ever

UST projectors allow displaying a 150 inches image from a short distance(about 16"/40cm).
At SCREEN PRO, we offer an optical revolution that makes all the difference to your viewing experience, a technic improvement the result is a brighter, sharper image and the ultimate viewing experience, either the projector sitting above or below the bottom of the image.

SCREENPRO ALR screen features description

Light Up Your World

Say NO to a messy wiring outlet on your ceiling, or have long runs of HDMI cables from your sources to the projector.

ALR (Ambient Light Rejecting) screens designed for Laser TV/UST (Ultra Short Throw) projectors, carrying vivid high-definition images regardless of ambient light, brands such as:
SAMSUNG | BenQ | XIAOMI | Epson | Hitachi| LG | Optoma l Sony | ViewSonic, etc... Enables compatibility with 8K resolution projectors

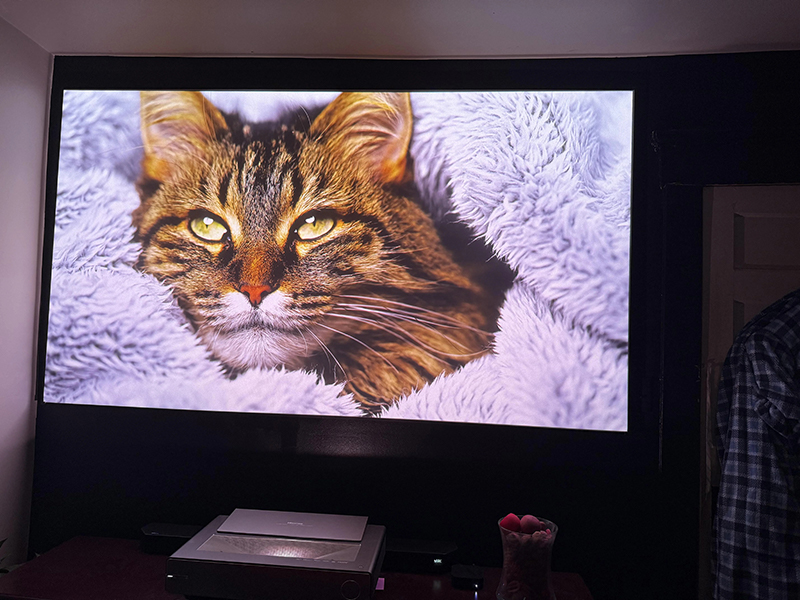

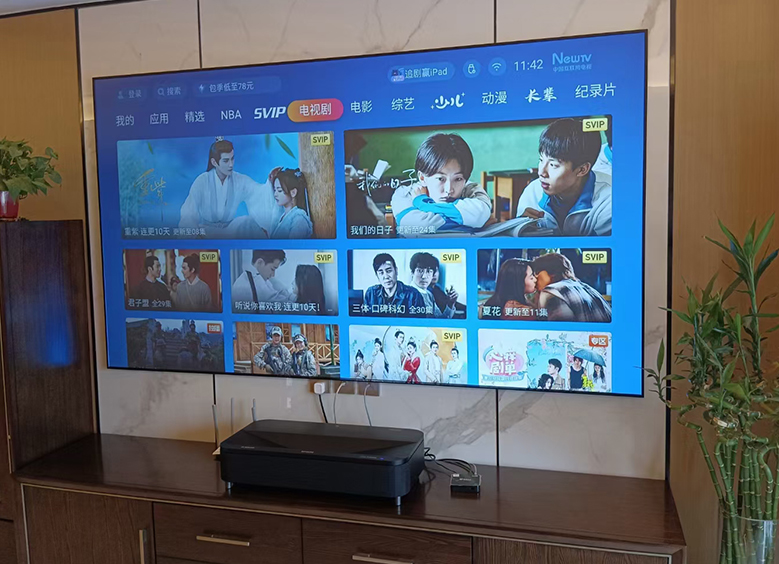

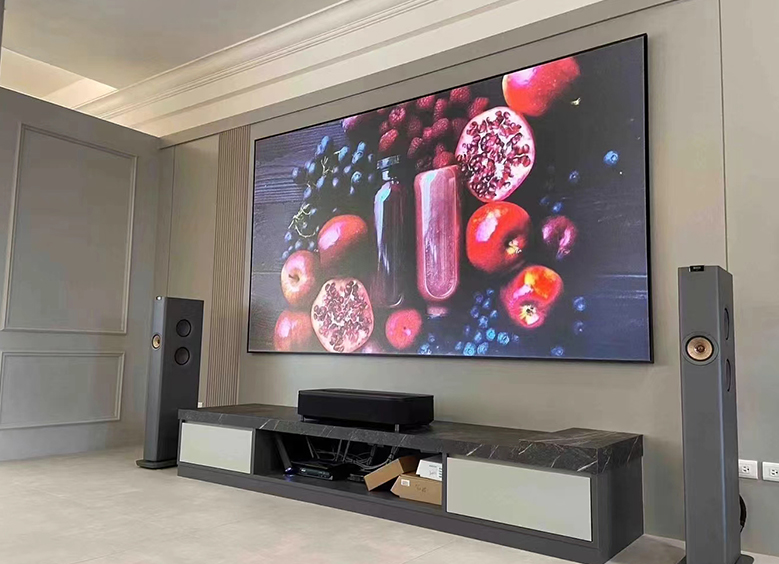

An UST projector placed under the SCREENPRO projector screen

LED Backlight System

An add-on option for your projection screen. Control and set the light color temperature/ speed/ effect/ mode/ from your smartphone device(*"LED Chord", available in Google Play or App store).  Provide a glow to your game, movie, or family reunion. Even have music sync features: A built-in mic allows the LED lights to sync to any music type.
*Note: these LED lights are not waterproof and are designed for indoor use.



〈 WATCH THE INSTALLATION VIDEO?



narrow frame projection screen frame

Classic Matte Black Profile Design

Lightweight aluminum split-frame design. Ultra-thin black bezel trim enhances the aesthetics, and hand-wrapped black velvet is also possible, designed to maximize your viewing experience while minimizing installation space.

the frame or frameless comparison

At One With Your Wall

The incredibly slim profile allows the screen to hang onto your wall like a work of art, enhancing your home interior and adding elegance to your space. Double-layer frame structure, make borderless installation possible.



〈 WATCH THE INSTALLATION VIDEO?

the frame or frameless comparison

What Makes T-Prism Unlike Anything Else?

T-Prism optical material technology allows displaying of true image brightness, color saturation, and contrast for superior picture performance. Unlike others that are restricted by material structural technology, T-Prism is capable of 150 inches of extreme realism and motorized designs.


LEARN MORE
Projector screen material sample

Looking for a screen

material sample

(A4 size) to try on?


SHOP NOW



SELECT THE RIGHT SCREEN FOR YOUR SPACE

At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical capabilities for your Home Theater project, please refer to the chart below.

SIZE <Unit:mm>

FORMAT DIAG.SIZE VIEWING AREA OVERALL DIMENSIONS PACKAGE DIMENSIONS APPROX. WEIGHT
(WxH) L B SplitFrame
(W1xH1xL1)
Standard
(W1xH1xL1)
Kg Lbs Note
16:9 100" 2214x1245 2229 1260 315x140x1500 260x140x2314 23.5 51.9
120" 2657x1495 2672 1510 315x140x1750 260x140x2757 26.5 58.4
135" 2988x1680 3003 1695 315x140x1935 260x140x3088 28.4 62.7
150" 3320x1868 3335 1883 315x140x2123 260x140x3420 31.1 68.5
16:10 100" 2154x1346 2169 1361 315x140x1601 260x140x2254 25.5 56.1
120" 2585x1616 2600 1631 315x140x1871 260x140x2685 28.1 62.0
135" 2908x1817 2918 1838 315x140x2072 260x140x3008 29.9 65.9
140" 3010x1890 3025 1905 315x140x2145 260x140x3110 32.3 71.3
2.35:1 100" 2337x994 2352 1009 315x140x1261 260x140x2437 22.3 49.2
119" 2781x1183 2796 1198 315x140x1483 260x140x2881 24.4 53.8
126" 2945x1253 2960 1268 315x140x1565 260x140x3045 25.3 55.7
135" 3155x1343 3170 1358 315x140x16467 260x140x3255 26.0 57.3



calculator





What is T-Prism?

SCREENPRO® T-Prism is an anti-light feature material, using a special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 86% to achieve the ambient light rejection function. Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected by the human eye so that the viewer can view it under natural light.
Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.





T-Prism Screen 4 Advantage

























Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A-Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.

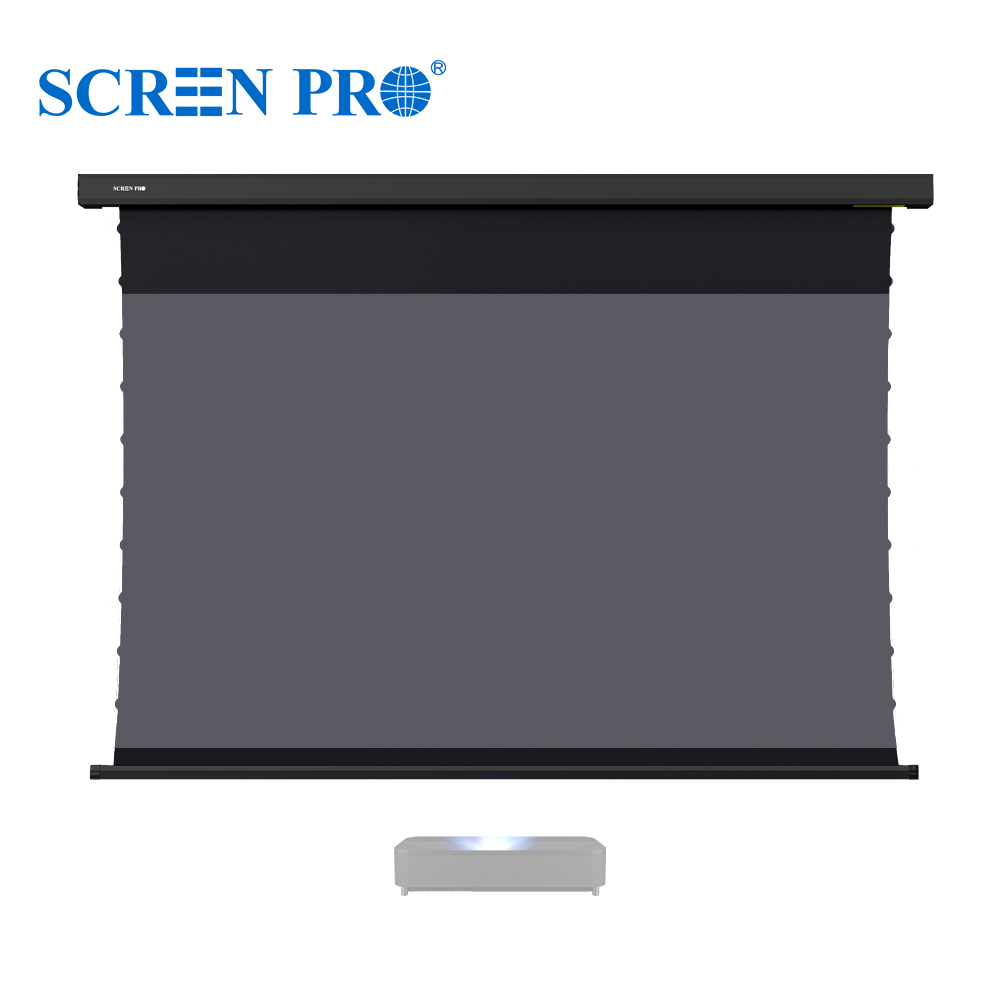

Motorized ALR Screen - AJ
Motorized ALR Screen - AJ
Motorized ALR Screen - AJ
Application
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Installation
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Ceiling Projection
Limit Adjustment
Remote
Remote
Remote
Expansion Port
RS485/RS232、DC AMX
RS485/RS232、DC AMX
RS485/RS232、DC AMX
Low Voltage Trigger
Optional
Optional
Optional
Control Options
868MHz RF remote
868MHz RF remote
868MHz RF remote
Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
Available Sizes
150
150
150
Color Options
White | Black
White | Black
White | Black
Housing
Aluminum
Aluminum
Aluminum

Can I buy a small screen material sample?

Yes, you can buy a screen material sample by clicking Yes, you can buy a screen material sample by clicking HERE.

How many types of projection screens do you produce?

Our factory mainly produces motorized projection screen, tensioned projection screen, fixed frame screen, folding screen, big size projection screen, etc. HERE.

Can I customize the size?

Yes, the size can be customized from 60 inches to 500 inches plus. HERE.

Do all types of projection screens have a warranty&How long do you offer for after-sales services?

12 months, for all types of the projection screen and we do provide lifetime maintenance, but you bear all cost.quipment, we will give you the right plug. HERE.

What's your shipping way?

Usually, we ship by DHL in HK, but considering the inconsistent shipping fee in different countries, we will ship byFedEx, UPS, TNT, etc...

Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.

×
