With a wide viewing angle and a large size range from 100" to 150", the SCREENPRO® TI-8K ALR screen is designed for long-throw projector systems, helping maintain image contrast, color depth, and viewing comfort in modern home theater and meeting room environments.
The flush-mount ceiling design allows the screen to disappear seamlessly into the architecture when not in use. It preserves clean ceiling lines, saves wall space, and creates a refined projection environment for living spaces, private cinemas, conference rooms, and custom AV installations.
The slim aluminum housing integrates discreetly into the ceiling, while the weighted bar creates a clean flush finish when retracted. The enclosed structure helps protect the screen surface and maintains a refined architectural appearance.
The sliding belt installation structure helps simplify ceiling mounting and maintenance. It is designed to support faster alignment, easier adjustment, and more efficient installation for professional AV projects.
SCREENPRO® recessed screens are designed to disappear into the ceiling when not in use, preserving a clean architectural look while delivering a large-format cinema experience on demand. Ideal for modern living rooms, home theaters, meeting rooms, and premium interior projects.
The adjustable top black drop allows the screen position to align more naturally with different ceiling heights, furniture layouts, and viewing environments. Designed for cleaner image placement without compromising the architectural balance of the room.
Yes. It can be installed in a drywall ceiling if the ceiling structure has enough load-bearing support and reserved installation space. We recommend confirming the ceiling opening size, mounting points, and maintenance access before installation.
The required ceiling depth depends on the screen size and housing specification. Please check the product dimension chart or contact SCREENPRO before construction to confirm the correct reserved space.
In most projects, the visible housing edge can be matched with the ceiling finish. Please avoid painting moving parts, fabric surfaces, motor areas, or ventilation gaps.
Designed for long-throw projector systems, the TI-8K recessed ALR screen supports modern 4K and 8K home theater installations with improved ambient light control and architectural integration.
If power is interrupted, the screen will stop operating. Once power is restored, the screen can be controlled again through the remote or connected control system.
Yes. The drop position can usually be adjusted during setup to match the projector image height, seating position, and room layout.
The screen can support professional control integration such as RS485 / RS232 depending on the configuration. For Control4 or Home Assistant projects, please confirm the control method before ordering.
Yes. It can be installed above a TV when the ceiling position, screen drop path, and projector throw distance are properly planned.
Yes. We recommend leaving proper maintenance access for the motor, housing, wiring, and screen mechanism. This is especially important for recessed ceiling installations.
The tab-tension structure helps maintain a flatter projection surface over long-term use. Proper installation, correct drop adjustment, and stable indoor conditions also help preserve screen flatness.
SCREENPRO recessed ceiling projector screens are designed for modern home theater systems, custom AV installations, conference rooms, architectural projection environments, and premium interior cinema applications. Compatible with 4K and 8K long throw projection systems.
```
SCREENPRO Size Chart Pro Ultra
SCREENPRO Ceiling Recessed ALR Screen is designed for long throw and normal throw projector installations where a clean hidden ceiling finish is required.
Confirm viewing size, ceiling slot dimension, housing length, package size, and installation clearance before finalizing your recessed screen project.

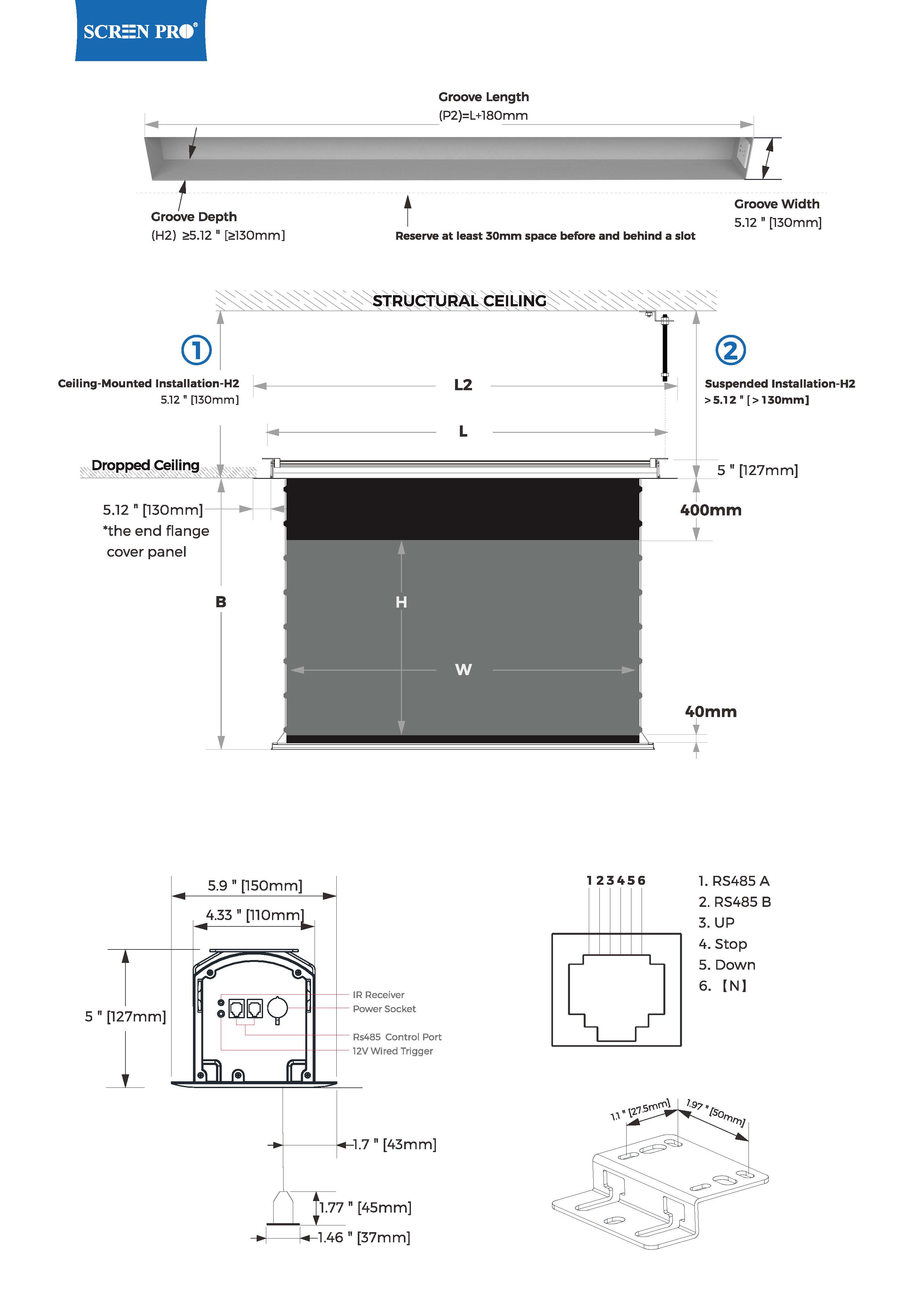

Dimension Diagram
Core viewing size, housing length, ceiling slot size, and weight for quick installation planning.
| Format | Diag. Size | Viewing Size | Housing Length | Ceiling Slot | Weight |
|---|---|---|---|---|---|
| 16:9 | 72″ | 1594×897 | 2152 | 2080×130×130 | 18.6 KG |
| 16:9 | 80″ | 1771×996 | 2329 | 2257×130×130 | 20.2 KG |
| 16:9 | 100″ | 2214×1245 | 2772 | 2700×130×130 | 24.8 KG |
| 16:9 | 120″ | 2657×1495 | 3215 | 3143×130×130 | 28.6 KG |
| 16:9 | 135″ | 2989×1681 | 3547 | 3475×130×130 | 33.3 KG |
| 16:9 | 150″ | 3320×1867 | 3879 | 3807×130×130 | 36.5 KG |
This table is intended for fast screen size comparison. For black border values, L/R margin, full ceiling slot dimensions, package dimensions, and project-level data, open the full engineering specifications below.
Engineering & Installation
View detailed black border, housing, ceiling slot, package, and weight specifications for AV integrators, dealers, and custom installation planning.
Complete dimension reference for SCREENPRO Ceiling Recessed ALR Screen for long and normal throw projectors.
| Format | Diag. | Viewing W | Viewing H | Top Border | L/R | Bottom | L2 | Length | B | Groove L | Groove W | Groove D | Package | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 72″ | 1594 | 897 | 400 | 40 | 40 | 2152 | 1951 | 1382 | 2080 | 130 | 130 | 2019×185×160 | 18.6 KG |
| 16:9 | 80″ | 1771 | 996 | 400 | 40 | 40 | 2329 | 2128 | 1481 | 2257 | 130 | 130 | 2196×185×160 | 20.2 KG |
| 16:9 | 84″ | 1860 | 1046 | 400 | 40 | 40 | 2418 | 2217 | 1531 | 2346 | 130 | 130 | 2285×185×160 | 21.2 KG |
| 16:9 | 92″ | 2032 | 1143 | 400 | 40 | 40 | 2590 | 2389 | 1628 | 2518 | 130 | 130 | 2457×185×160 | 23.2 KG |
| 16:9 | 100″ | 2214 | 1245 | 400 | 40 | 40 | 2772 | 2571 | 1730 | 2700 | 130 | 130 | 2639×185×160 | 24.8 KG |
| 16:9 | 110″ | 2435 | 1370 | 400 | 40 | 40 | 2993 | 2792 | 1855 | 2921 | 130 | 130 | 2860×185×160 | 26.5 KG |
| 16:9 | 120″ | 2657 | 1495 | 400 | 40 | 40 | 3215 | 3014 | 1980 | 3143 | 130 | 130 | 3082×185×160 | 28.6 KG |
| 16:9 | 135″ | 2989 | 1681 | 400 | 40 | 40 | 3547 | 3346 | 2166 | 3475 | 130 | 130 | 3414×185×160 | 33.3 KG |
| 16:9 | 150″ | 3320 | 1867 | 400 | 40 | 40 | 3879 | 3678 | 2352 | 3807 | 130 | 130 | 3745×185×160 | 36.5 KG |
Use the SCREENPRO Projection Screen Size Calculator to estimate viewing distance, screen dimensions, and projector throw compatibility before selecting your final recessed ALR screen.
SCREENPRO® ALR material is designed for long throw and standard throw projection in spaces with ambient light. Its reflective optical surface helps improve image brightness, contrast, and color performance while maintaining a wide viewing area for home theater, conference, and commercial display applications.
This ALR screen surface uses a photoelectric composite structure to reject unwanted ambient light while reflecting the projector image toward the audience. It helps deliver clear images, stronger contrast, and vivid color reproduction for 4K and 8K projection systems.
Prefer the same long-throw ALR viewing performance, but need a different installation style? Explore SCREENPRO ALR screen formats for motorized, floor-rising, in-ceiling and fixed-frame applications.
Premium motorized ALR screen with tab-tensioned flatness, designed for long or normal throw projectors in bright home theater spaces.
View Product →Floor-rising ALR solution for rooms where wall or ceiling mounting is not preferred. Ideal for flexible living room cinema setups.
View Product →Recessed ceiling ALR screen format for architectural projects that require a clean hidden installation when the screen is not in use.
View Product →Ultra-slim fixed frame ALR screen with a clean 7mm visual edge, suitable for dedicated cinema rooms and premium interior projects.
View Product →Classic fixed-frame ALR screen format for permanent installations where maximum screen stability and a theater-style appearance are required.
View Product →Tell us your projector type, room lighting and installation method. SCREENPRO will help match the right ALR screen structure for your project.
Inch-screw compatible ceiling bracket for Epson, Yaber, HAPPRUN, TMY and most standard projectors.
Stable ceiling mounting solution for projector installation in home theater, meeting room and commercial spaces.
Automatic USB trigger solution for synchronizing SCREENPRO motorized screens with compatible projectors and laser TV systems.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
