A small change.
A big impact.
Automatic Screen Control for a Smarter Projection Experience
Sync your projector(sync-trigger), and make your home smart the way you like. A small universal device that can synchronize your projector on and off, along with the screen surface going down and up. No need to consider whether or not to use the trigger port.
How to Sync Your Projector and Screen Without Any Wires？
Wireless Sync-Trigger. So-called Synchronizer. Which synchronizes your screen along with the projector operation the appearance and retracting of the projection screen will be synchronized with the on and off of the projector(*Sync Trigger(add-on option) only applies to the SCREENPRO® series product)
Controls your projector and screen together, and see a new way to sync both of them. Once the projector powers on, the trigger commands the projection screen to drop down from the casing. Power the projector off and the screen retracts back into the casing.
Applicable series：
(Model: TBQ-1264)
SCREENPRO® motorized screen B series(partials)
SCREENPRO® motorized screen J series
(Model: TBQ-2391)
SCREENPRO® motorized screen D series
| SEE MORE |
* The Synchronizer has two sides: socket side and plug side. Each side must be paired separately.
Step 1: Connect the Synchronizer socket side to the projector power cable.
Step 2: Press the screen learning button until the screen moves up and down.
Step 3: Hold the Synchronizer LEARN button until the screen runs once, then release.
Step 4: Connect the Synchronizer plug side to the projector.
Step 5: Press the LEARN button until the indicator flashes and the screen cycles once.
Pairing setup completed.
→ Unplug the screen power.
→ Connect the synchronizer, turn on the projector, and wait until the image is fully displayed.
→ Press and hold the Synchronizer LEARN button, then release when the indicator light starts flashing.
→ Power off the projector.
→ Restore power to the screen.
→ Turn on the projector again.
This process allows the synchronizer to learn the projector’s operating current for proper automatic triggering.
Follow these steps to pair correctly:
→ Unplug the screen power.
→ Turn on the projector and wait until the image is fully displayed.
→ Press and hold the Synchronizer LEARN button, release when the indicator light turns on.
→ Power off the projector.
→ Power on the screen.
→ Turn on the projector again.

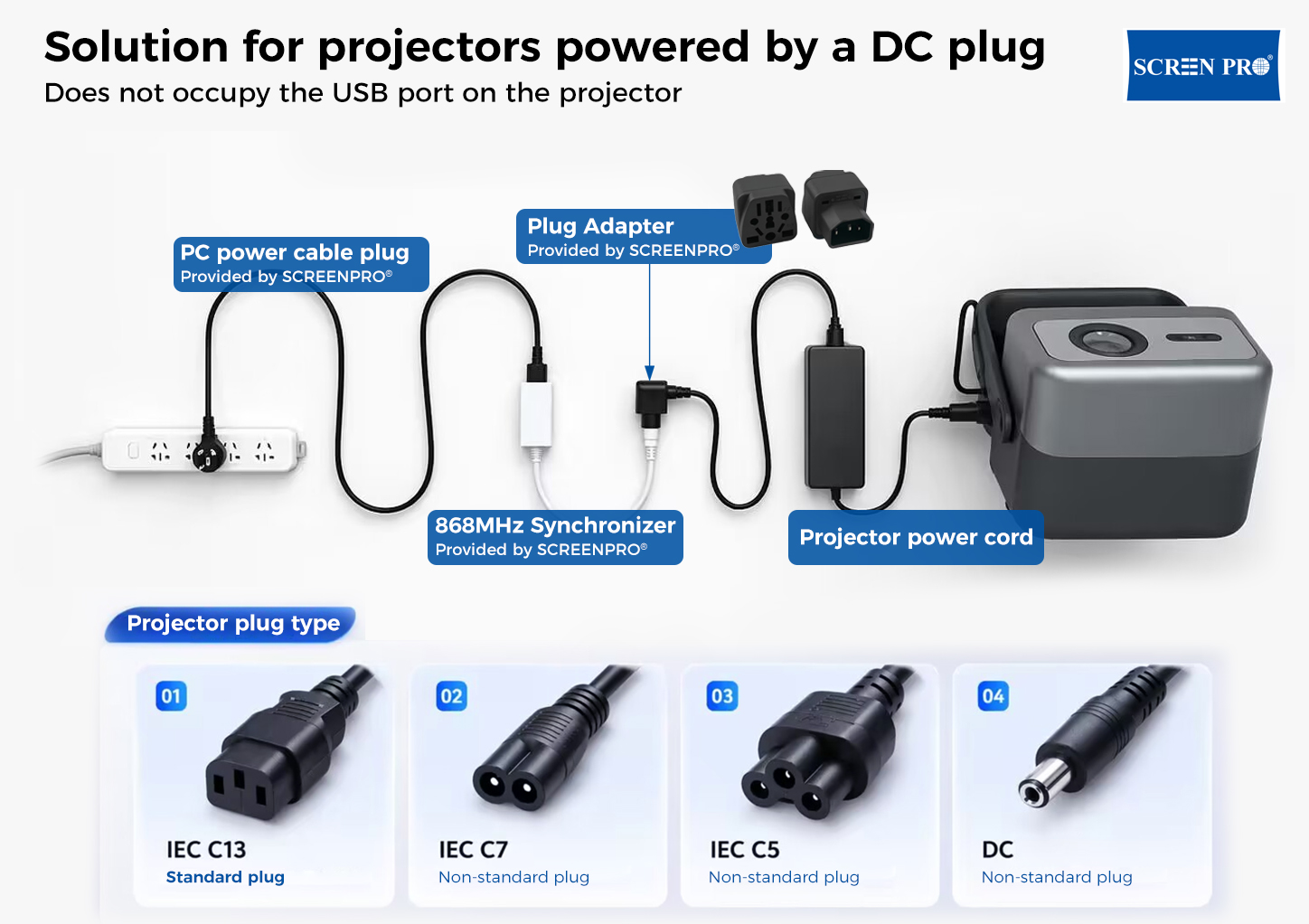

If the projector power plug type or end type is different, use a compatible conversion plug or adapter.
Please make sure the adapter matches the projector power plug type and local electrical standard before use.
Download the SCREENPRO user manual, including installation guidance, setup, synchronizer instructions, and troubleshooting information.
Download PDF ManualContact SCREENPRO for setup support and product matching guidance.
Project Inquiry
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us.
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
