Front & Rear Projection Options
The optional rear projection fabrics expand your usage scenarios for rental events, exhibitions, stage presentations, outdoor cinema and large-format commercial projection.
≥100-150"
【lightweight nylon waterproof portable storage bag with a zipper】
The optional rear projection fabrics expand your usage scenarios for rental events, exhibitions, stage presentations, outdoor cinema and large-format commercial projection.
The inner width of the legs is 110 mm with a double-layer closed structure design. Made from nylon with 25% glass fiber, the reinforced legs help reduce deformation and provide stable support for the quick fold projector screen. Optional rear projection fabric is available.
Comes with ground stakes, rigging cord and support rigs in a nylon waterproof portable storage bag with zipper for easy storage and carrying. The screen can be set up quickly for backyard movies, sporting events, slideshows, resorts, outdoor parties and special events. While the screen is weather-resistant, it should not be left outside permanently.
No tools are needed. Each leg has a buckle setting; simply press it to complete the locking or releasing operation of the leg.
NOTE: The BENZ series easy fold screen with adjustable brace and extension legs is not compatible with the VICTOR series easy fold screen design.

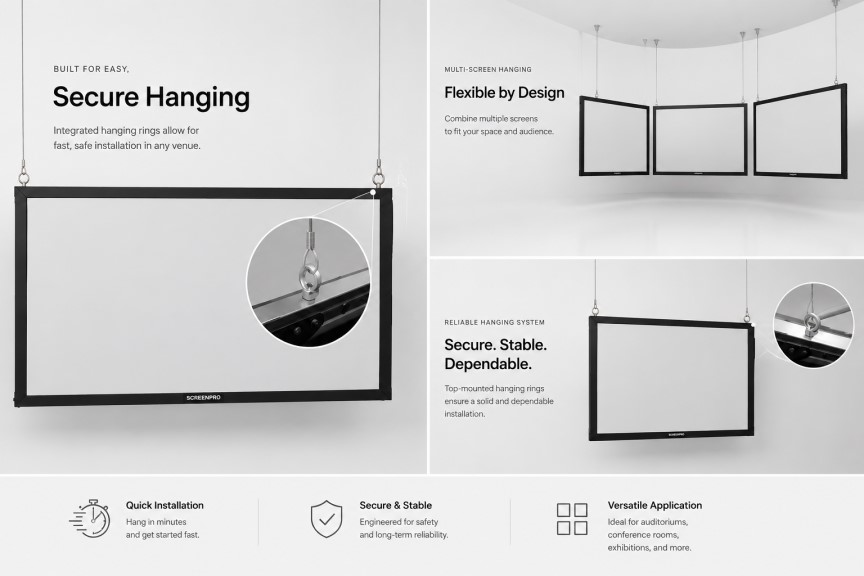

The screen can be suspended safely from a stage batten by its frame, making it suitable for churches, rental staging, live events, exhibitions and temporary projection installations.
Unlike LED TV light emission, projector images are viewed through diffuse reflection. This creates a softer, large-format viewing experience for movies, presentations, and event projection.
At SCREENPRO, we provide a wide selection of high-quality projection screens. Use the size chart below to compare screen format, viewing size, overall dimensions, frame height, leg extension, black border and approximate weight.
| SCREENPRO Quick Fold Screen With Handbag - Victor | Unit: mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| FORMAT | DIAG. SIZE | VIEWING SIZE | OVERALL DIMENSIONS | BOTTOM OF FRAME TO GROUND |
FEET FULLY EXTENDED |
BLACK BORDER | STANDARD LEGS | APPROX. WEIGHT | NOTE | ||
| D | W x H | L x B | H2 | L2 | A | L3 | Kg | Lbs | |||
| 16:9 | 100" | 2214 x 1245 | 2406 x 1437 | 600 | 1030 | 100 | 926 | VT | 10.2 | 22.6 | — |
| 106" | 2347 x 1320 | 2539 x 1512 | 600 | 1030 | 100 | 926 | VT | 10.5 | 23.2 | — | |
| 120" | 2657 x 1494 | 2849 x 1686 | 600 | 1030 | 100 | 926 | VT | 11.1 | 24.5 | — | |
| 135" | 2988 x 1680 | 3180 x 1874 | 600 | 1030 | 100 | 926 | VT | 11.9 | 26.3 | — | |
| 144" | 3188 x 1793 | 3380 x 1985 | 600 | 1030 | 100 | 926 | VAT | 12.0 | 26.5 | — | |
Use our calculator to estimate screen size based on viewing distance, installation space, and aspect ratio.
Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.
Matte white projection fabric for general-purpose front projection applications.
Micro-perforated acoustic transparent fabric for behind-screen speaker setups.
Long-throw ALR material designed to improve contrast under ambient light.
High ALR micro-perforated fabric for large-format professional projection.
Rear projection fabric for professional installations requiring hidden projector placement.
Explore SCREENPRO screen solutions for live events, conference halls, rental staging, education spaces and portable projection setups.
Easy-fold portable screen system with height-adjustable legs for mobile events and professional staging setups.
View Product →Portable fast-fold outdoor screen system designed for event projection, temporary installs, and cinema-anywhere setups.
View Product →Large-venue quick-fold projection screen for professional stage events, conferences, and touring AV applications.
View Product →Professional portable frame screen for stage, exhibition, training, and commercial presentation environments.
View Product →Tell us your venue size, projection distance, screen ratio, and installation method. SCREENPRO can help match the right screen structure for your project.
Universal ceiling mounting solution for projector positioning in meeting rooms, classrooms, and event spaces.
Compact 1/4-inch screw projector mount bracket compatible with portable and mini projector models.
Professional stage drapery kit for masking, event presentation, and cleaner projection environments.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample .
No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.
Yes. Wall-mounting brackets are included with the wall-mounted screen series.
Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us .
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
