【For Long-focus/Normal-throw Laser Projectors】
The SCREENPRO® FZ combines a 7 mm ultra-thin fixed frame with acoustically transparent projection materials for an immersive, cinema-style installation. Speakers can be positioned behind the screen so dialogue and sound effects appear to come directly from the projected image.
When configured with T8 material, the screen also provides ambient light rejecting performance for compatible normal-throw and long-throw projector systems.
FZ is designed for premium home cinemas, media rooms and professional AV installations where both image quality and speaker placement matter. Its acoustically transparent surface allows the center, left and right speakers to be concealed behind the screen, creating a cleaner room layout and a more accurately positioned soundstage.
The screen supports high-resolution 4K and 8K projection and is well suited to HDR content, Dolby Atmos systems and large-format immersive viewing.
T8 is a micro-perforated acoustic transparent ALR material developed for compatible normal-throw and long-throw projection systems. Its precision perforation structure allows sound to pass through the screen while preserving image clarity, uniform brightness and natural color reproduction.
The optical grey surface also helps reduce the effect of ambient light and improve perceived black levels and contrast compared with a conventional matte white screen.
Key T8 specifications:
Screen gain: 1.1
Ambient light rejection: up to 90%
Viewing angle: 140°
Material type: ALR micro-perforated acoustic transparent

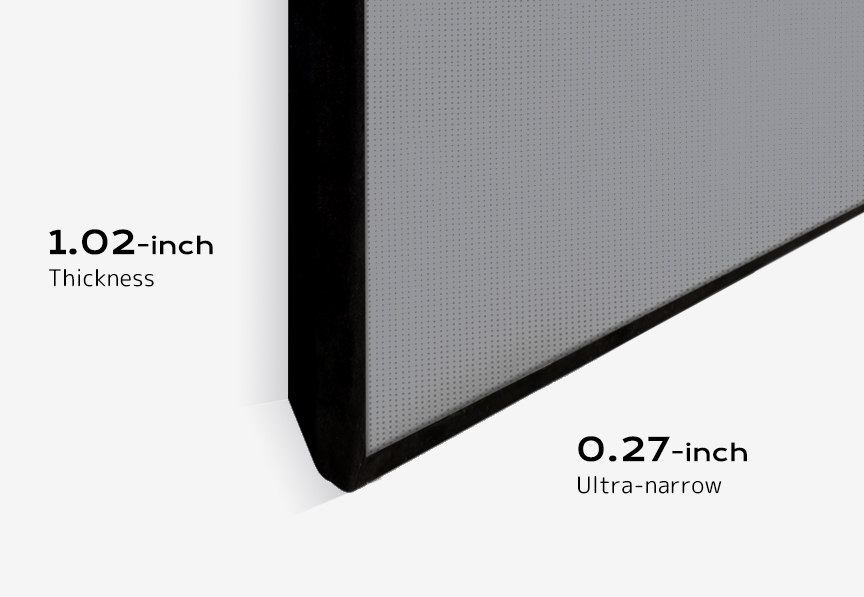

The visible frame measures only 7 mm wide, creating a clean, nearly borderless appearance while keeping the projected image visually defined. The matte black finish absorbs stray projected light around the image edge and helps maintain a precise, professional presentation.
Its minimal profile allows the screen to integrate naturally into modern home theaters, media rooms and commercial AV spaces without the heavy appearance of a conventional wide-bezel frame.
The ultra-slim frame allows the projection surface to become the visual focus of the room. Once installed, the screen sits cleanly against the wall and creates the appearance of a dedicated cinema display rather than a conventional projection accessory.

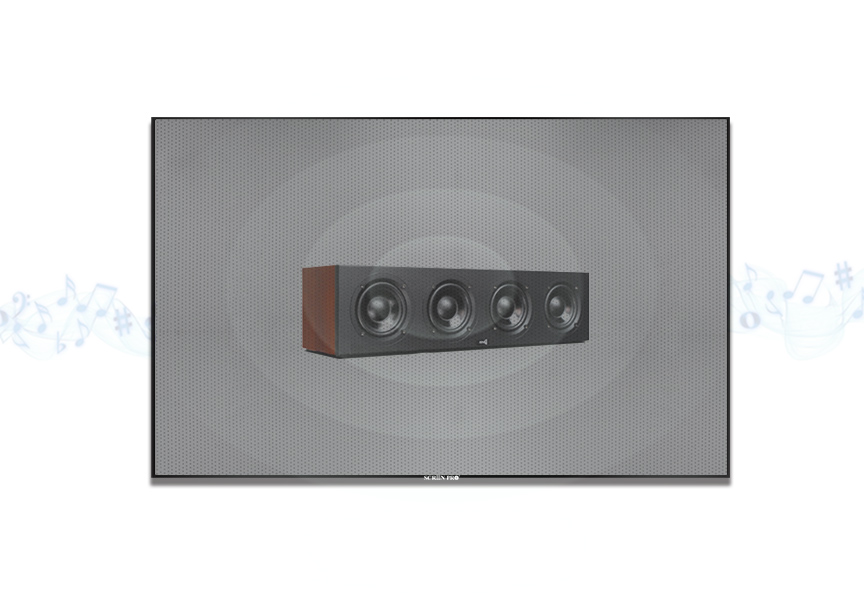

By placing the speakers behind the acoustically transparent surface, visible audio equipment can be reduced and the front wall can maintain a symmetrical, uncluttered design.
The FZ uses a dual aluminum frame structure to improve rigidity while maintaining its ultra-thin visible bezel. A distributed tensioning system applies consistent force around the projection surface to help maintain flatness and accurate screen geometry.
The modular frame design also makes the product easier to pack and transport than a fully assembled large-format frame. Follow the included instructions carefully and confirm that the frame is square and level before completing wall installation.
The FZ frame system supports multiple SCREENPRO® projection materials for different projector types, room conditions and audio requirements. Available configurations may include T8 ALR micro-perforated material, TM micro-perforated material, TW woven acoustic transparent fabric and 3W woven anti-speckle acoustic transparent material.
For project planning, we recommend testing an A4 or A3 material sample with your actual projector, room lighting and viewing position before confirming the final screen configuration.
Each FZ screen is packed to help protect the aluminum frame, projection material and installation components during international transportation. Internal protective materials are used to separate and cushion the components, reducing movement and contact inside the carton.
For large-format or project orders, reinforced export packaging and customized wooden protection can be provided according to the screen size, shipping method and destination requirements.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® Fixed Frame Screen - Ultra Thin series is designed for premium home theater, custom cinema rooms, and professional AV projects. Compare popular screen formats, viewing dimensions, overall frame size, split-frame packaging, and project-level installation data before planning your screen system.
Choose from 16:9, 16:10, and 2.35:1 formats based on projector type, room width, seating distance, and cinematic viewing preference.
Use the engineering labels together with the Quick Specs and Full Engineering Specifications below.
Core viewing size, overall frame dimensions, and weight for fast screen comparison.
| Format | Diag. Size | Viewing Size | Overall Width | Overall Height | Weight |
|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2229 mm | 1260 mm | 14.0 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2671 mm | 1509 mm | 16.4 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3335 mm | 1883 mm | 26.1 kg |
| 16:9 | 200" | 4427 × 2490 mm | 4442 mm | 2505 mm | 35.5 kg |
| 16:10 | 100" | 2153 × 1346 mm | 2169 mm | 1361 mm | 14.4 kg |
| 16:10 | 120" | 2584 × 1615 mm | 2600 mm | 1630 mm | 17.2 kg |
| 16:10 | 150" | 3230 × 2019 mm | 3246 mm | 2034 mm | 27.0 kg |
| 16:10 | 200" | 4307 × 2692 mm | 4323 mm | 2707 mm | 36.7 kg |
| 2.35:1 | 100" | 2337 × 994 mm | 2352 mm | 1010 mm | 13.6 kg |
| 2.35:1 | 126" | 2945 × 1253 mm | 2960 mm | 1268 mm | 16.9 kg |
| 2.35:1 | 150" | 3505 × 1491 mm | 3521 mm | 1507 mm | 24.4 kg |
| 2.35:1 | 200" | 4674 × 1989 mm | 4690 mm | 2004 mm | 33.0 kg |
Engineering & Installation
View complete 16:9, 16:10, and 2.35:1 specification data, including viewing size, overall dimensions, T value, split-frame package dimensions, and approximate weight for integrators, dealers, and project quotation.
Detailed project-level dimensions for SCREENPRO Fixed Frame Screen - Ultra Thin.
| Format | Diag. Size | Viewing Size | Overall L | Overall B | T | Package Dimensions | Approx. Weight |
|---|---|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2229 mm | 1260 mm | 540 mm | 270 × 140 × 1385 mm | 14.0 kg |
| 16:9 | 106" | 2346 × 1319 mm | 2361 mm | 1335 mm | 577 mm | 270 × 140 × 1459 mm | 14.7 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2450 mm | 1385 mm | 602 mm | 270 × 140 × 1509 mm | 15.3 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2671 mm | 1509 mm | 665 mm | 270 × 140 × 1635 mm | 16.4 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3003 mm | 1696 mm | 745 mm | 270 × 140 × 1825 mm | 23.4 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3335 mm | 1883 mm | 838 mm | 270 × 140 × 2010 mm | 26.1 kg |
| 16:9 | 160" | 3541 × 1992 mm | 3557 mm | 2007 mm | 932 mm | 270 × 140 × 2135 mm | 28.9 kg |
| 16:9 | 180" | 3984 × 2241 mm | 3999 mm | 2256 mm | 1025 mm | 270 × 140 × 2385 mm | 31.7 kg |
| 16:9 | 200" | 4427 × 2490 mm | 4442 mm | 2505 mm | 1150 mm | 270 × 140 × 2630 mm | 35.5 kg |
| 16:9 | 220" | 4869 × 2739 mm | 4885 mm | 2754 mm | 1274 mm | 270 × 140 × 2885 mm | 39.5 kg |
| 16:9 | 250" | 5534 × 3112 mm | 5549 mm | 3128 mm | 1460 mm | 270 × 140 × 3260 mm | 45.7 kg |
| 16:9 | 300" | 6640 × 3735 mm | 6656 mm | 3750 mm | 1772 mm | 270 × 140 × 3880 mm | 56.5 kg |
| 16:10 | 100" | 2153 × 1346 mm | 2169 mm | 1361 mm | 590 mm | 270 × 140 × 1490 mm | 14.4 kg |
| 16:10 | 106" | 2283 × 1426 mm | 2298 mm | 1442 mm | 630 mm | 270 × 140 × 1570 mm | 15.2 kg |
| 16:10 | 110" | 2369 × 1480 mm | 2384 mm | 1496 mm | 658 mm | 270 × 140 × 1625 mm | 15.8 kg |
| 16:10 | 120" | 2584 × 1615 mm | 2600 mm | 1630 mm | 725 mm | 270 × 140 × 1760 mm | 17.2 kg |
| 16:10 | 135" | 2907 × 1817 mm | 2923 mm | 1832 mm | 826 mm | 270 × 140 × 1960 mm | 24.2 kg |
| 16:10 | 150" | 3230 × 2019 mm | 3246 mm | 2034 mm | 927 mm | 270 × 140 × 2165 mm | 27.0 kg |
| 16:10 | 160" | 3446 × 2153 mm | 3461 mm | 2169 mm | 995 mm | 270 × 140 × 2300 mm | 28.9 kg |
| 16:10 | 180" | 3877 × 2423 mm | 3892 mm | 2438 mm | 1130 mm | 270 × 140 × 2570 mm | 32.7 kg |
| 16:10 | 200" | 4307 × 2692 mm | 4323 mm | 2707 mm | 1265 mm | 270 × 140 × 2840 mm | 36.7 kg |
| 16:10 | 220" | 4738 × 2961 mm | 4754 mm | 2977 mm | 1398 mm | 270 × 140 × 3105 mm | 40.8 kg |
| 16:10 | 250" | 5384 × 3365 mm | 5400 mm | 3381 mm | 1600 mm | 270 × 140 × 3510 mm | 47.2 kg |
| 16:10 | 300" | 6461 × 4038 mm | 6477 mm | 4054 mm | 1937 mm | 270 × 140 × 4185 mm | 58.5 kg |
| 2.35:1 | 100" | 2337 × 994 mm | 2352 mm | 1010 mm | 415 mm | 270 × 140 × 1315 mm | 13.6 kg |
| 2.35:1 | 106" | 2477 × 1054 mm | 2493 mm | 1069 mm | 445 mm | 270 × 140 × 1385 mm | 14.3 kg |
| 2.35:1 | 119" | 2781 × 1183 mm | 2796 mm | 1199 mm | 510 mm | 270 × 140 × 1535 mm | 16.0 kg |
| 2.35:1 | 126" | 2945 × 1253 mm | 2960 mm | 1268 mm | 545 mm | 270 × 140 × 1620 mm | 16.9 kg |
| 2.35:1 | 135" | 3155 × 1342 mm | 3170 mm | 1358 mm | 590 mm | 270 × 140 × 1725 mm | 22.5 kg |
| 2.35:1 | 150" | 3505 × 1491 mm | 3521 mm | 1507 mm | 663 mm | 270 × 140 × 1900 mm | 24.4 kg |
| 2.35:1 | 165" | 3856 × 1641 mm | 3872 mm | 1656 mm | 738 mm | 270 × 140 × 2075 mm | 26.9 kg |
| 2.35:1 | 180" | 4207 × 1790 mm | 4222 mm | 1805 mm | 813 mm | 270 × 140 × 2250 mm | 29.5 kg |
| 2.35:1 | 200" | 4674 × 1989 mm | 4690 mm | 2004 mm | 912 mm | 270 × 140 × 2485 mm | 33.0 kg |
| 2.35:1 | 250" | 5843 × 2486 mm | 5858 mm | 2501 mm | 1160 mm | 270 × 140 × 3065 mm | 42.2 kg |
| 2.35:1 | 300" | 7011 × 2983 mm | 7027 mm | 2999 mm | 1410 mm | 270 × 140 × 3650 mm | 52.0 kg |
| 2.35:1 | 350" | 8180 × 3481 mm | 8196 mm | 3496 mm | 1658 mm | 270 × 140 × 4240 mm | 62.5 kg |
SCREENPRO supports project-based screen size planning, fabric selection, and OEM / ODM customization for dealers, AV integrators, and home theater projects.
SCREENPRO® T8 combines ambient light rejection with a precision micro-perforated acoustic structure, allowing speakers to be positioned behind the screen while maintaining strong image contrast, brightness, and fine 4K/8K detail.

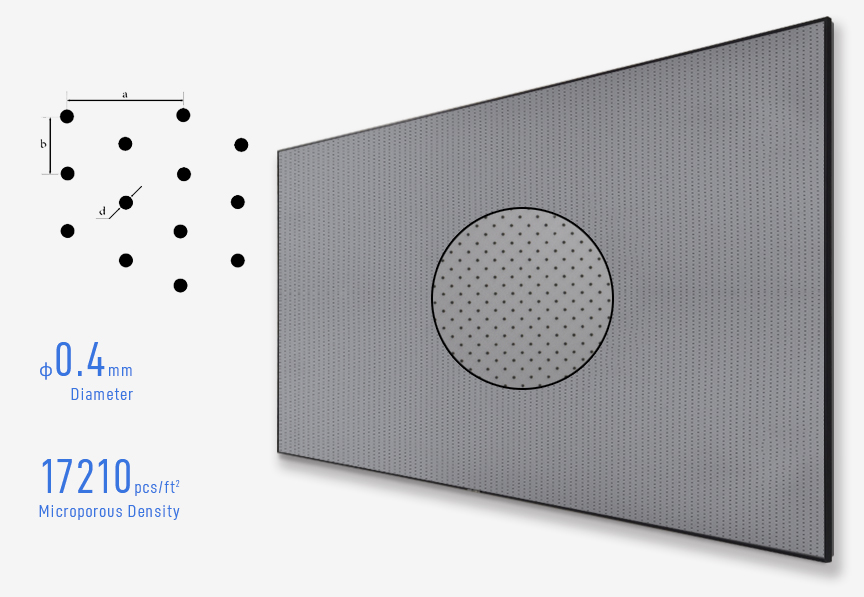

The T8 material uses a uniform φ0.4 mm micro-perforated structure to allow sound to pass through the projection surface. This enables center and front speakers to be installed behind the screen, creating more natural dialogue positioning and a cleaner, cinema-style installation.
Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural, and professional projection environments.
Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.
View Product →Recessed screen solution for clean architectural integration in premium residential or commercial spaces.
View Product →Classic electric projection screen for flexible residential, education and commercial display applications.
View Product →Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.
View Product →Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.
View Product →Tell us your projector model, room environment and installation requirements. SCREENPRO will recommend the most suitable screen structure and optical surface for your project.
Stable ceiling mounting solution for projector installation in home theater, meeting room and commercial spaces.
Add customizable ambient RGB backlighting to compatible slim frame projection screens for a more immersive home theater experience.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
