[Tab-tensioned motorized screen series]
The TI-3C housing is designed for recessed ceiling installation, allowing the screen to retract discreetly above the finished ceiling when projection is not required. This creates a clean architectural appearance for home theaters, media rooms, meeting spaces, and premium residential interiors.
Only the lower closure panel remains visible after installation, helping the projection system blend naturally into the room instead of becoming a permanent visual feature.

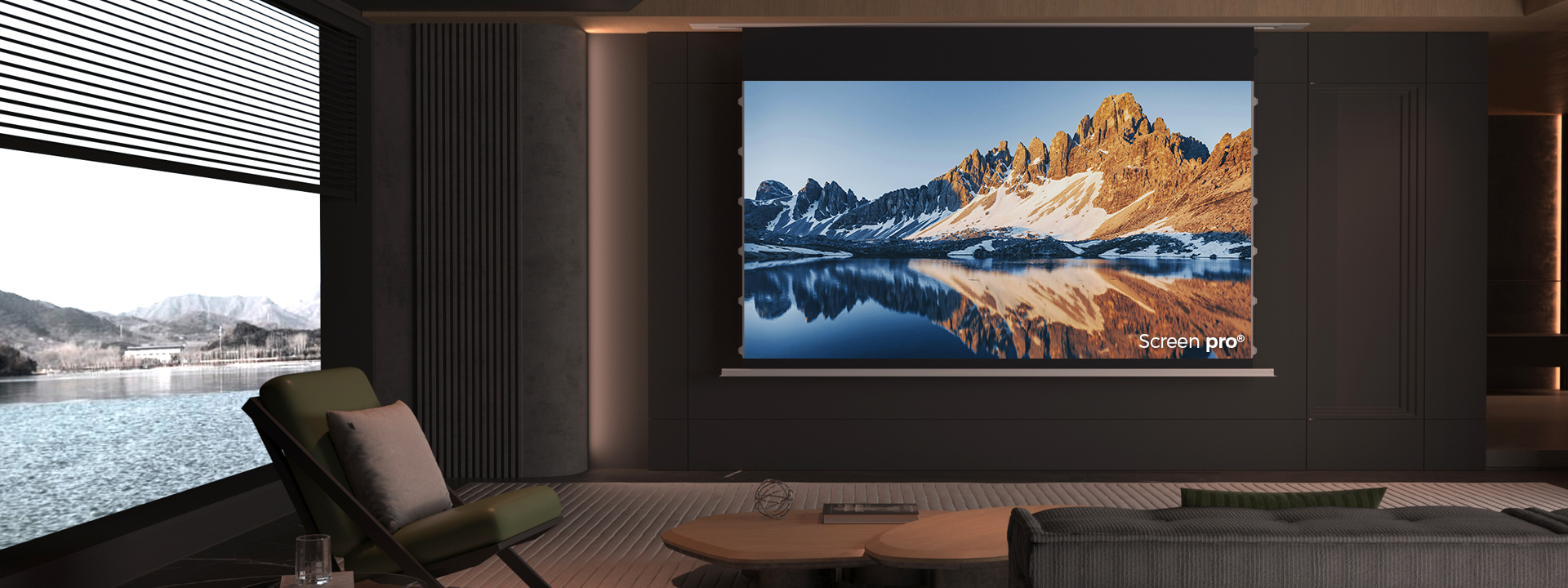

TI-3C provides a large-format projection surface while preserving the room's appearance when the screen is retracted. It is suitable for living rooms, dedicated theaters, multipurpose media spaces, and custom AV projects where a permanently visible television or fixed screen is not preferred.
Available screen sizes should be selected according to viewing distance, projector brightness, throw distance, ceiling structure and installation clearance.
SCREENPRO® 3C material is engineered for RGB triple-laser and other compatible high-brightness projector systems. Its specialized optical surface helps reduce visible laser speckle, producing a smoother image texture and more comfortable viewing than conventional screen surfaces in suitable room conditions.

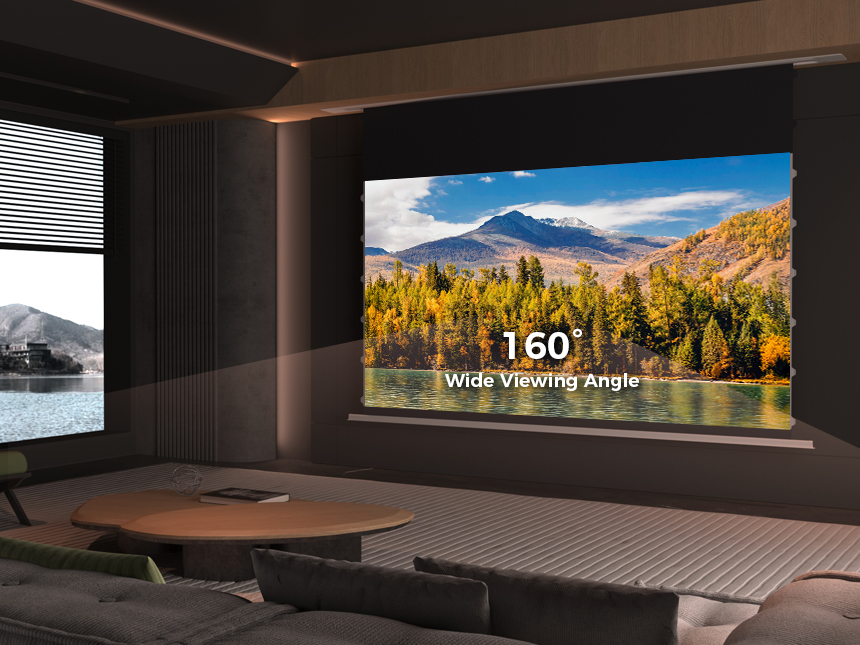

With 0.8 gain, a 160° viewing angle and support for high-resolution 4K and 8K content, the material is designed to preserve fine detail, natural color and balanced image contrast across a wide seating area.
The reinforced housing is designed for integration into a prepared ceiling recess. Its motorized structure lowers the viewing surface smoothly for projection and retracts it into the ceiling after use.
The system includes an automatic overload cutout for safer long-term operation. Final ceiling slot dimensions, service access, power routing, and structural support should be confirmed before installation begins.
A low-noise motor provides controlled screen movement for residential and professional environments. The enclosed lower bar helps create a clean finished appearance and protects key components when the screen is retracted.
Optional control configurations may include RF remote control, wall control, trigger synchronization, RS232 or selected smart-control integration. Availability depends on the motor and control package specified for the project.
TI-3C can be integrated into new construction, renovation and custom AV projects. Installation details should be coordinated with the ceiling contractor, electrician and AV integrator before the ceiling is closed.
Confirm the screen size, housing length, ceiling opening, recess depth, wiring position, maintenance access and final image height before ordering. All project dimensions should be checked against the engineering specification table for the selected size.
The screen includes an extended top black border to help position the viewing area at a comfortable height below the ceiling. This is especially useful in rooms with high ceilings, built-in furniture or fixed projector placement.
The final upper and lower stopping positions should be adjusted carefully according to the supplied instructions. Do not operate the motor beyond its designed travel range.
TI-3C can be configured for integration with compatible projectors and third-party control systems. A trigger or automation interface can allow the screen to lower when the projector is switched on and retract after the projector is turned off.
Control compatibility varies by motor version and selected accessories. Confirm the required voltage, plug type, control protocol, and automation method before production.
The side-tensioning system applies balanced tension across the projection surface to help maintain flatness. A flatter screen supports more consistent focus, straighter image geometry and better preservation of fine projected detail.
This is particularly important for high-resolution RGB laser projection, where waves or surface deformation can make image distortion and focus variation more visible.
Projector optics, laser architecture, room lighting, wall color, and viewing distance can all affect the final image. Testing a material sample with the actual projector is the most reliable way to evaluate speckle reduction, brightness, contrast, texture and color performance before confirming a full-size screen.
SCREENPRO offers projection material samples for project evaluation. Share your projector model and room conditions if you need help choosing between 3C, 3W or another compatible material.
Each TI-3C screen is packed to help protect the housing, motorized components, projection material and installation accessories during transportation. Internal cushioning reduces movement and contact between components inside the package.
Reinforced packaging or customized wooden protection can be specified for large-format screens, project orders and selected international shipping methods. Inspect the package and product condition before installation.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® ceiling recessed ALR screen is designed for long / normal throw projectors. Compare viewing dimensions, ceiling slot requirements, package dimensions, and approximate weight before planning your home theater or custom installation project.
Estimate viewing distance, screen width, screen height, ceiling space, and installation clearance before choosing your recessed ALR screen.
Use the diagram labels together with the Quick Specs and Full Engineering Specs below.
Core viewing size, ceiling slot, package size, and weight for quick project planning.
| Format | Diag. Size | Viewing Size | Ceiling Slot | Package Size | Weight |
|---|---|---|---|---|---|
| 16:9 | 72" | 1594 × 897 mm | 2080 × 130 × 130 mm | 2019 × 185 × 160 mm | 18.6 kg |
| 16:9 | 80" | 1771 × 996 mm | 2257 × 130 × 130 mm | 2196 × 185 × 160 mm | 20.2 kg |
| 16:9 | 84" | 1860 × 1046 mm | 2346 × 130 × 130 mm | 2285 × 185 × 160 mm | 21.2 kg |
| 16:9 | 92" | 2032 × 1143 mm | 2518 × 130 × 130 mm | 2457 × 185 × 160 mm | 23.2 kg |
| 16:9 | 100" | 2214 × 1245 mm | 2700 × 130 × 130 mm | 2639 × 185 × 160 mm | 24.8 kg |
| 16:9 | 110" | 2435 × 1370 mm | 2921 × 130 × 130 mm | 2860 × 185 × 160 mm | 26.5 kg |
| 16:9 | 120" | 2657 × 1495 mm | 3143 × 130 × 130 mm | 3082 × 185 × 160 mm | 28.6 kg |
| 16:9 | 135" | 2989 × 1681 mm | 3475 × 130 × 130 mm | 3414 × 185 × 160 mm | 33.3 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3807 × 130 × 130 mm | 3745 × 185 × 160 mm | 36.5 kg |

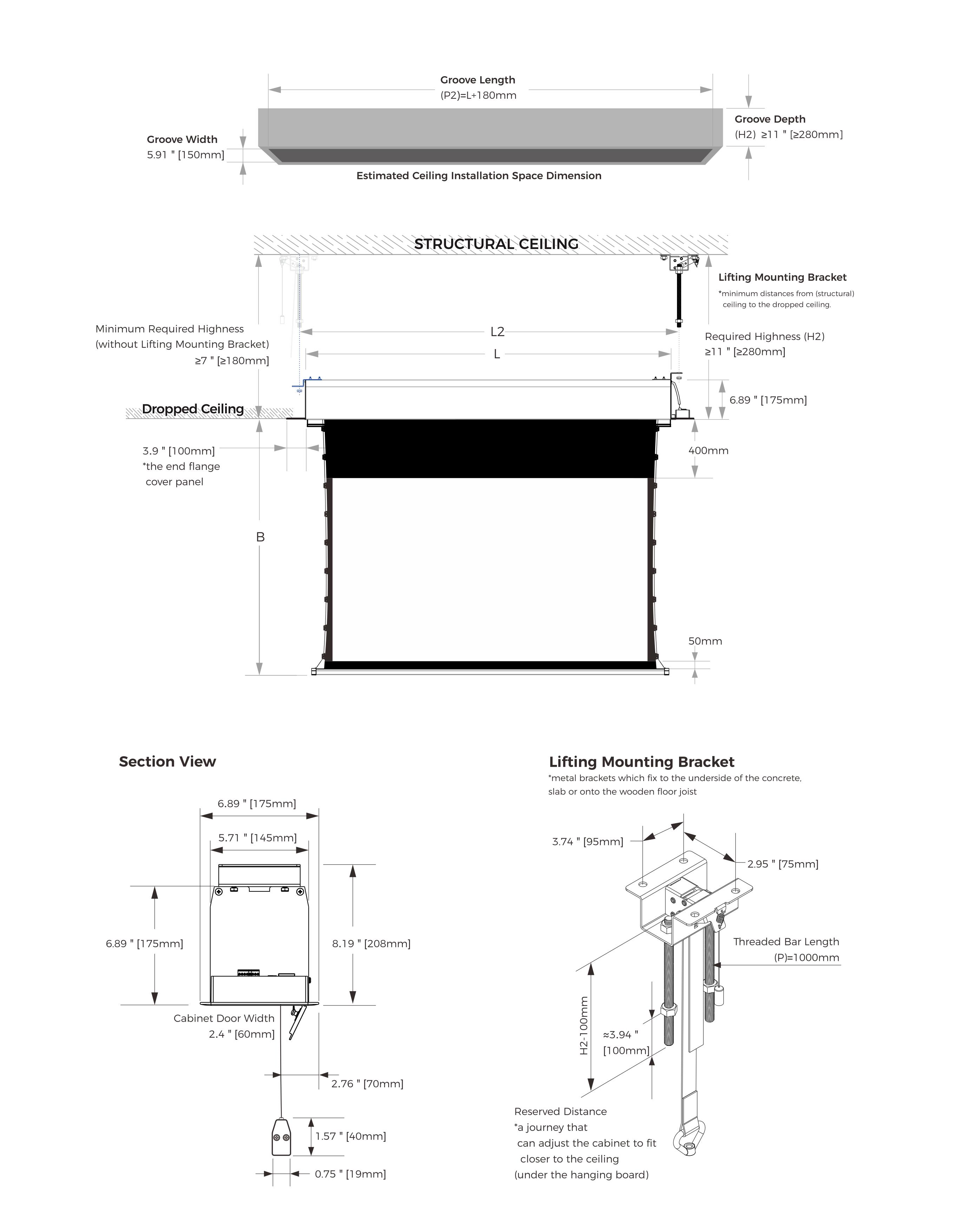

Engineering & Installation
View detailed black border values, housing length, ceiling slot dimensions, package dimensions, and project-level specifications for AV integrators, dealers, and custom installation planning.
Detailed dimensions for project quotation, logistics planning, and recessed ceiling installation confirmation.
| Format | Diag. | Viewing Size | Top B1 |
L/R A |
Bottom B2 |
Length L2 |
Length L |
Height B |
Groove Length P2 |
Groove Width W2 |
Groove Depth H2 |
Package L1 × W1 × H1 |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 72" | 1594 × 897 mm | 400 mm | 40 mm | 40 mm | 2152 mm | 1951 mm | 1382 mm | 2080 mm | 130 mm | 130 mm | 2019 × 185 × 160 mm | 18.6 kg |
| 16:9 | 80" | 1771 × 996 mm | 400 mm | 40 mm | 40 mm | 2329 mm | 2128 mm | 1481 mm | 2257 mm | 130 mm | 130 mm | 2196 × 185 × 160 mm | 20.2 kg |
| 16:9 | 84" | 1860 × 1046 mm | 400 mm | 40 mm | 40 mm | 2418 mm | 2217 mm | 1531 mm | 2346 mm | 130 mm | 130 mm | 2285 × 185 × 160 mm | 21.2 kg |
| 16:9 | 92" | 2032 × 1143 mm | 400 mm | 40 mm | 40 mm | 2590 mm | 2389 mm | 1628 mm | 2518 mm | 130 mm | 130 mm | 2457 × 185 × 160 mm | 23.2 kg |
| 16:9 | 100" | 2214 × 1245 mm | 400 mm | 40 mm | 40 mm | 2772 mm | 2571 mm | 1730 mm | 2700 mm | 130 mm | 130 mm | 2639 × 185 × 160 mm | 24.8 kg |
| 16:9 | 110" | 2435 × 1370 mm | 400 mm | 40 mm | 40 mm | 2993 mm | 2792 mm | 1855 mm | 2921 mm | 130 mm | 130 mm | 2860 × 185 × 160 mm | 26.5 kg |
| 16:9 | 120" | 2657 × 1495 mm | 400 mm | 40 mm | 40 mm | 3215 mm | 3014 mm | 1980 mm | 3143 mm | 130 mm | 130 mm | 3082 × 185 × 160 mm | 28.6 kg |
| 16:9 | 135" | 2989 × 1681 mm | 400 mm | 40 mm | 40 mm | 3547 mm | 3346 mm | 2166 mm | 3475 mm | 130 mm | 130 mm | 3414 × 185 × 160 mm | 33.3 kg |
| 16:9 | 150" | 3320 × 1867 mm | 400 mm | 40 mm | 40 mm | 3879 mm | 3678 mm | 2352 mm | 3807 mm | 130 mm | 130 mm | 3745 × 185 × 160 mm | 36.5 kg |
Use the SCREENPRO® calculator to estimate viewing distance, screen dimensions, and room fit before selecting your ceiling recessed ALR screen.

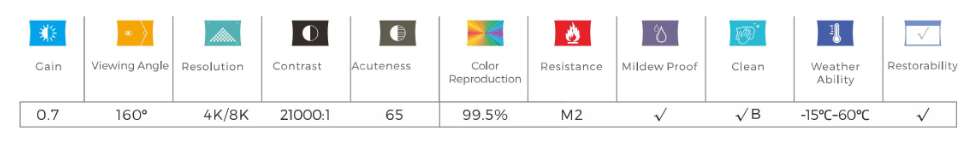

SCREENPRO® 3C anti-speckle projection fabric is engineered for RGB triple-laser and high-brightness projector systems. Its specialized optical surface helps reduce visible laser speckle while maintaining contrast, color accuracy, and fine image detail for premium home theater and professional projection applications.
The 3C fabric is developed for modern RGB laser projection, where speckle can be more noticeable on conventional screen surfaces. It helps deliver a smoother image texture, deeper perceived contrast, and more comfortable viewing in controlled-light home theater environments.
Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural, and professional projection environments.
Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.
View Product →Recessed screen solution for clean architectural integration in premium residential or commercial spaces.
View Product →Classic electric projection screen for flexible residential, education and commercial display applications.
View Product →Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.
View Product →Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.
View Product →Tell us your projector model, room environment and installation requirements. SCREENPRO will recommend the most suitable screen structure and optical surface for your project.
Stable ceiling mounting solution for projector installation in home theater, meeting room and commercial spaces.
Automatic USB trigger solution for synchronizing SCREENPRO motorized screens with compatible projectors and laser TV systems.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
