UST ALR SERIES
Premium tab-tensioned UST ALR projection screen engineered for residential and commercial applications.
Before laser TV projectors came out, our options were limited to a flat－screen TV that topped out at 80 inches or a home theater projector in a dedicated dark room with lots of space to display such a large image. Now your favorite theater is in your very home. Up to 150-inch for a cinematic experience catered to your living space.
T-Prism is a front projection fabric for environments with high ambient light (up to 150″ 16:9 seamless), geared toward ultra-short-throw projectors.

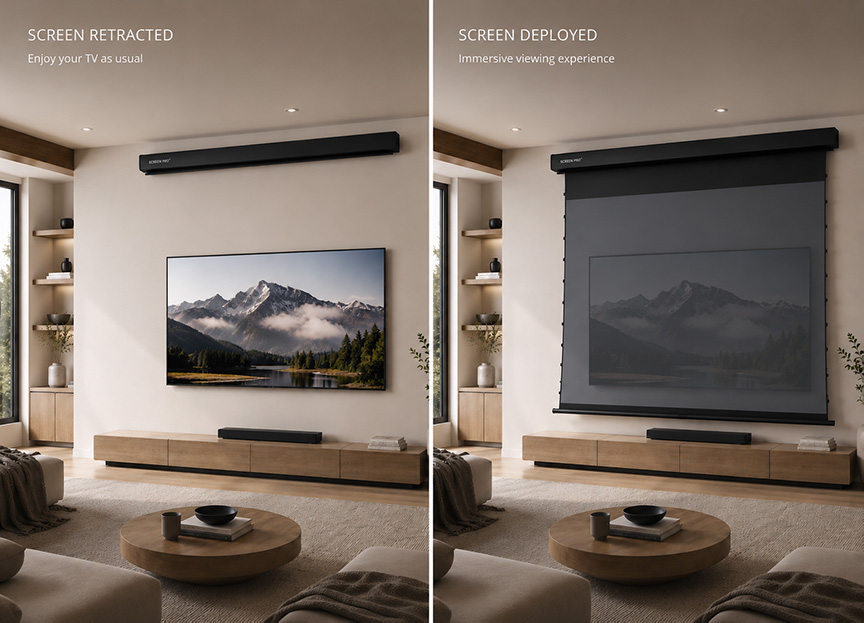

Prefer to keep your TV in your living room? No extra room in your apartment? The motorized screen is the one you are looking for. UST projectors are also referred to as Laser TVs; they require a suitable projection screen to display the image, and the laser projector's light is so intense that if you accidentally look at it directly for just a second, your eyes will recover for a while.
T-Prism optical material technology enables true image brightness, color saturation, and contrast for superior picture performance. Unlike others that are restricted by material and structural technology, T-Prism offers 150 inches of extreme realism and motorized designs.
Looking for a projector screen for the UST laser projector that will be mounted on the ceiling?
No more messy wires or obstructed views. Unlike traditional projectors, the UST(ultra-short-throw) projector provides a new private theater experience. T-Prism material supports ceiling projection, which can be deployed in places where a rigid TV cannot.
*Support the UST projector ceiling mount installation (upon request). Verify the Screen Orientation: If buying a motorized drop-down version, confirm if it is built for floor-projection or ceiling-mounted inverted projection, as the micro-prisms are directionally locked. (Raw fabric or a fixed frame, it will be fine)
Introducing the SCREENPRO® JAMPO Series — a premium ultra short throw (UST) ALR projector screen engineered for modern laser TV and home theater environments. Featuring SCREENPRO T-Prism optical technology, the screen delivers enhanced contrast, vivid color reproduction, and excellent ambient light rejection for immersive large-screen viewing.

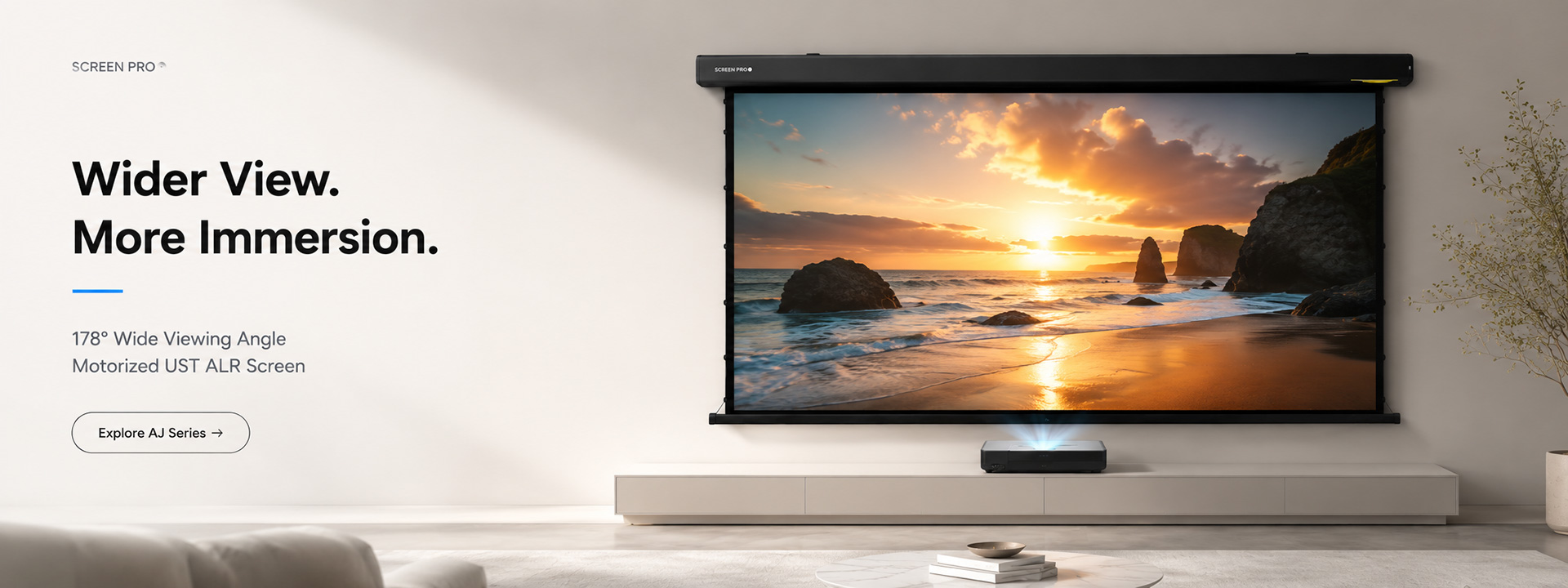

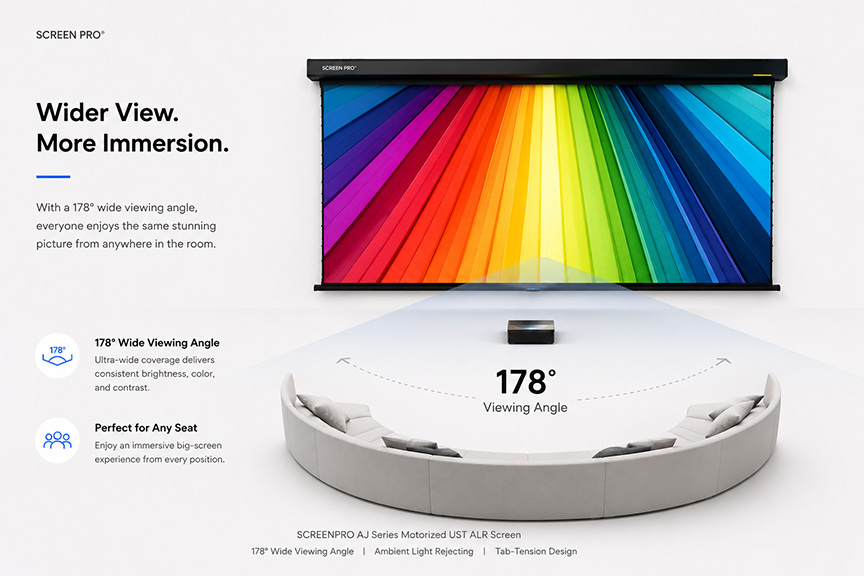

With a wide 178° viewing angle and large-format size options, the SCREENPRO UST ALR screen maintains image clarity and color consistency even from extreme off-axis viewing positions with the ceiling light on. Its motorized rollable design allows users to enjoy cinematic projection performance without permanently occupying valuable wall space.

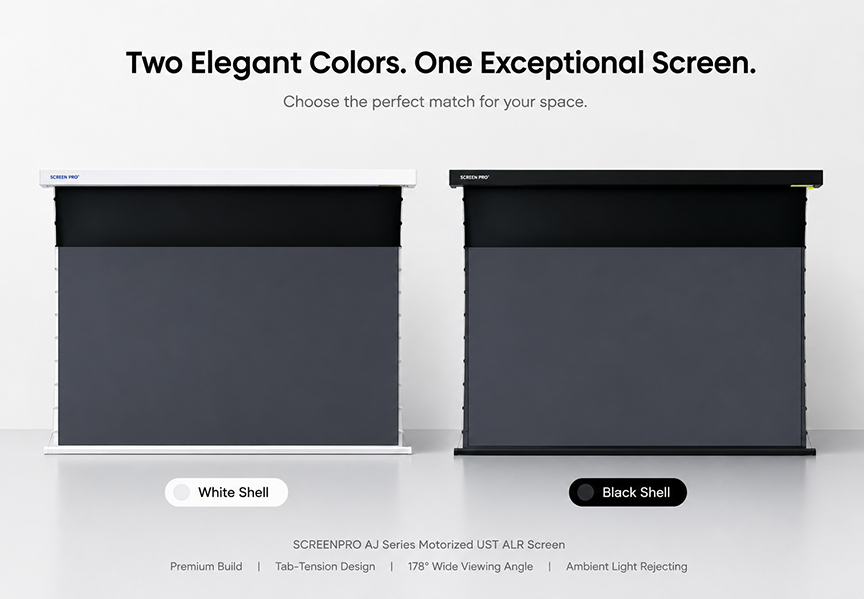

Features a minimalist seamless casing developed through a collaborative Chinese and European engineering design approach. Available in refined white or black finishes, the enclosure is designed to complement modern laser TV and home theater interiors.
The fully enclosed lower bar design (*L Series) helps reduce dust accumulation while maintaining a clean architectural appearance. Flexible rear, ceiling, and wall sliding rail mounting options allow easier installation across different room layouts and furniture configurations.
Smart Home & Professional AV Integration
SCREENPRO motorized screens support multiple control methods, including RF Remote, Synchronizer Trigger, RS232, RS485, Tuya Smart App, Google Assistant, and Alexa. Designed for modern home theaters and professional AV projects, SCREENPRO integrates easily with third-party automation platforms including Crestron, Control4, Savant, RTI, ELAN, and Home Assistant.
*Tuya Smart Home Integration is optional and available on selected models only.

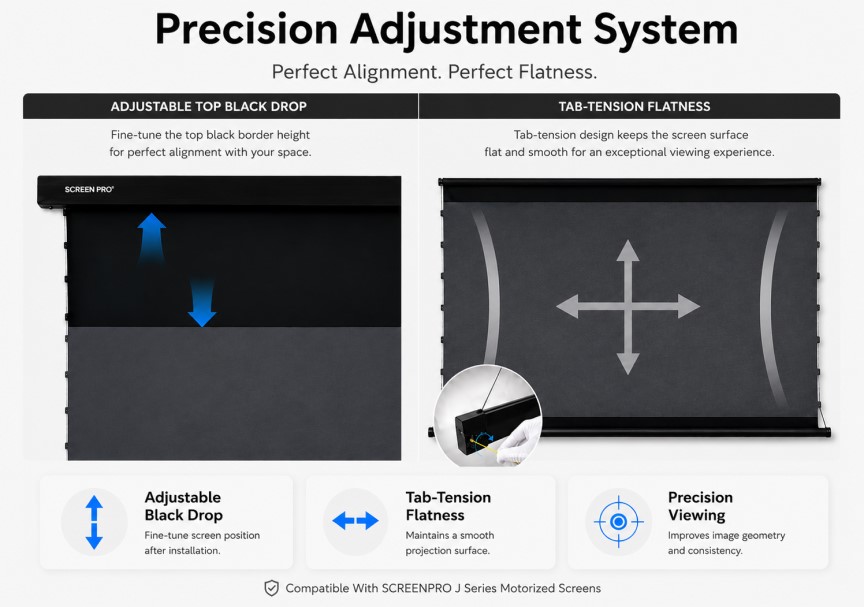

Perfect Alignment. Perfect Flatness.
SCREENPRO AJ Series combines tab-tension technology and adjustable black-drop positioning to achieve a perfectly aligned viewing surface.
The tension system helps maintain a flat projection area, while the adjustable top black border allows fine positioning after installation, making it easier to match different room layouts and furniture heights. Together, they deliver a clean, professional viewing experience with improved image consistency across the entire screen.
SCREENPRO AJ Series supports three installation methods to suit different environments: suspended, ceiling-mounted, or wall-mounted installation.
Compare optical performance, texture, and viewing characteristics with SCREENPRO A4 sample kits.
| REQUEST SAMPLE |
Every SCREENPRO screen is prepared for international delivery with reinforced protective packaging designed for large-format transport.
The inner carton structure uses pearl cotton and foam buffer protection, while a reinforced wooden outer frame helps minimize shipping damage during global transit.
Get product recommendations, project support, OEM/ODM consultation, and shipping information from SCREENPRO.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® Motorized ALR Screen for UST - AJ series is designed for ultra short throw projection, recessed ceiling installation, and premium home theater projects. Compare viewing size, screen dimensions, packaging, ceiling slot dimensions, and approximate weight before planning your installation.
Use the engineering table to confirm viewing size, housing dimensions, ceiling slot requirement, wooden crate packaging, and project logistics.

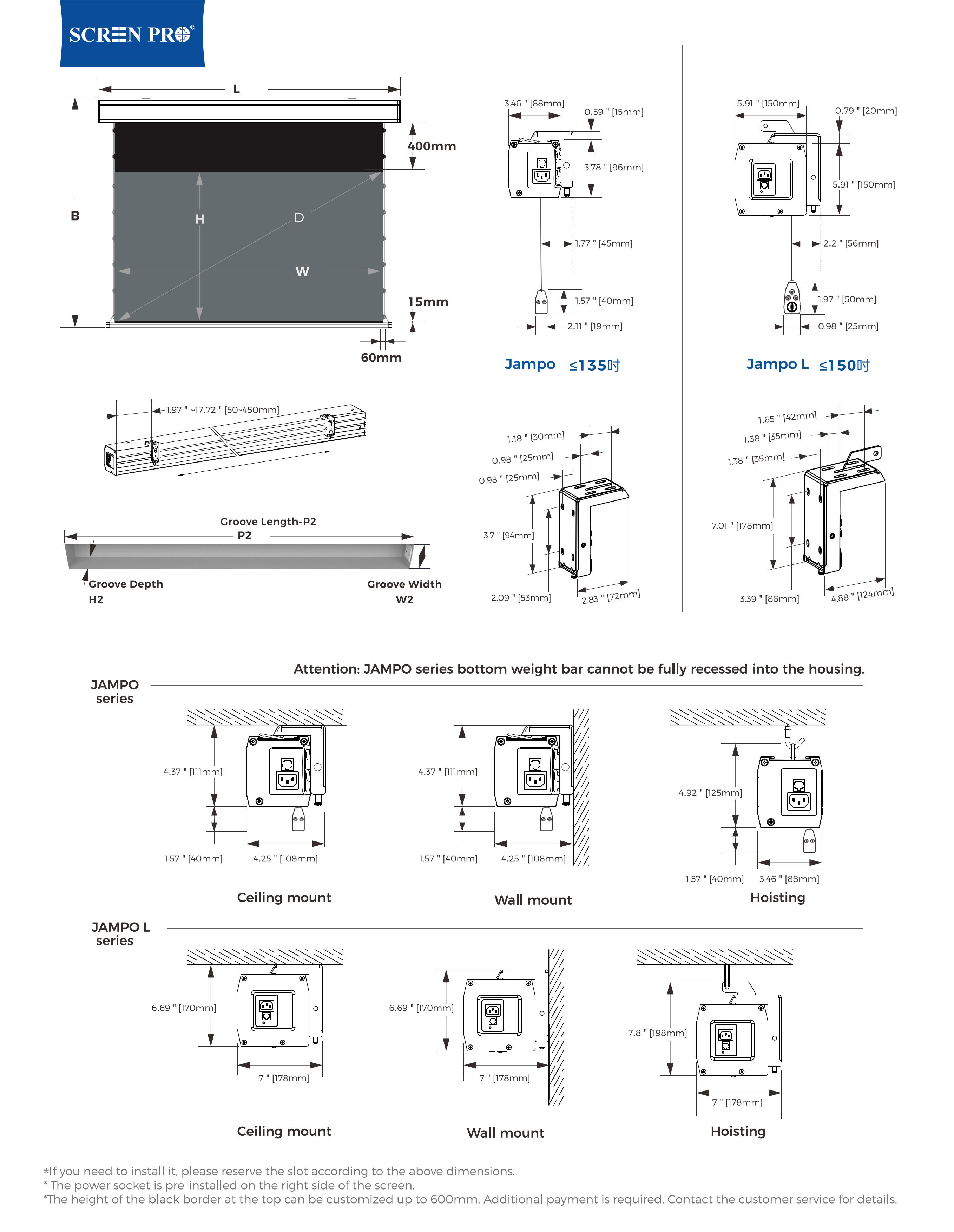

Use the product dimension image together with the Quick Specs and Full Engineering Specifications below.
Core viewing size, overall screen size, package dimensions, and weight for fast comparison.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Package Dimensions | Weight |
|---|---|---|---|---|---|---|
| 16:9 | 100" | 2214 × 1245 mm | 2537 mm | 1816 mm | 230 × 185 × 2587 mm | 23 kg |
| 16:9 | 120" | 2657 × 1494 mm | 2980 mm | 2065 mm | 230 × 185 × 3030 mm | 27 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3643 mm | 2438 mm | 230 × 185 × 3693 mm | 35 kg |
Engineering & Installation
View complete AJ specification data, including black border, overall screen size, package dimensions, wooden crate packaging, ceiling slot dimensions, Jampo compatibility note, and approximate weight for dealers, AV integrators, and project quotation.
Detailed project-level dimensions for SCREENPRO Motorized ALR Screen for UST - AJ.
| Format | Diag. Size | Viewing Size | Top Border | Bottom Border | L/R Border | Overall L | Overall H | Package Dimensions | Wooden Crate Packaging | Ceiling Slot P2 | Ceiling Slot H2 | Ceiling Slot W2 | Note | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 84" | 1859 × 1046 mm | 400 mm | 50 mm | 60 mm | 2182 mm | 1617 mm | 230 × 185 × 2232 mm | 250 × 335 × 2282 mm | 2282 mm | 150 mm | 130 mm | Jampo 96×88 mm | 19 kg |
| 92" | 2037 × 1146 mm | 400 mm | 50 mm | 60 mm | 2360 mm | 1717 mm | 230 × 185 × 2410 mm | 250 × 335 × 2460 mm | 2460 mm | 150 mm | 130 mm | Jampo 96×88 mm | 21 kg | |
| 100" | 2214 × 1245 mm | 400 mm | 50 mm | 60 mm | 2537 mm | 1816 mm | 230 × 185 × 2587 mm | 250 × 335 × 2637 mm | 2637 mm | 150 mm | 130 mm | Jampo 96×88 mm | 23 kg | |
| 110" | 2435 × 1370 mm | 400 mm | 50 mm | 60 mm | 2758 mm | 1941 mm | 230 × 185 × 2808 mm | 250 × 335 × 2858 mm | 2858 mm | 150 mm | 130 mm | Jampo 96×88 mm | 25 kg | |
| 120" | 2657 × 1494 mm | 400 mm | 50 mm | 60 mm | 2980 mm | 2065 mm | 230 × 185 × 3030 mm | 250 × 335 × 3080 mm | 3080 mm | 150 mm | 130 mm | Jampo 96×88 mm | 27 kg | |
| 135" | 2989 × 1681 mm | 400 mm | 50 mm | 60 mm | 3312 mm | 2252 mm | 230 × 185 × 3362 mm | 250 × 335 × 3412 mm | 3412 mm | 150 mm | 130 mm | Jampo 96×88 mm | 31 kg | |
| 150" | 3320 × 1867 mm | 400 mm | 50 mm | 60 mm | 3643 mm | 2438 mm | 230 × 185 × 3693 mm | 250 × 335 × 3743 mm | 3743 mm | 150 mm | 130 mm | Jampo 96×88 mm | 35 kg |
SCREENPRO supports project-based screen size planning, fabric selection, and OEM / ODM customization for dealers, AV integrators, and home theater projects.
SCREENPRO® T-Prism is an ambient light rejecting screen material engineered for ultra short throw projection. Its trapezoidal optical micro-structure helps separate overhead ambient light from projector light, improving contrast and image clarity in bright living rooms and home theater spaces.
The T-Prism surface uses a directional optical structure to absorb unwanted ambient light while reflecting the projector image back toward the viewer. It helps maintain brightness, contrast, and 4K / 8K image detail for daily home entertainment.
Explore SCREENPRO ultra short throw ALR screen solutions for floor-rising, motorized, in-ceiling and fixed-frame installations — designed for modern laser TV and UST projector environments.
Motorized floor-rising UST ALR screen designed for laser TV and ultra short throw projector installations.
View Product →Ceiling or wall mounted UST ALR projector screen for premium laser TV and living room cinema environments.
View Product →Recessed in-ceiling UST ALR screen solution for hidden architectural laser TV installations.
View Product →Ultra-slim 7mm frame UST ALR screen with modern minimalist appearance for premium interiors.
View Product →Acoustic transparent UST ALR screen with ZeroWave technology, designed for immersive front sound placement and premium laser TV rooms.
View Product →Tell us your projector model, room environment and installation requirements. SCREENPRO will recommend the most suitable UST ALR screen structure for your project.
Automatically raise or lower your SCREENPRO motorized screen when the projector powers on or off.
Stable ceiling mounting solution for projector installation in home theater, meeting room and commercial spaces.
Inch-screw compatible ceiling bracket for Epson, Yaber, HAPPRUN, TMY and most standard projectors.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
