[Motorized ALR screen series]

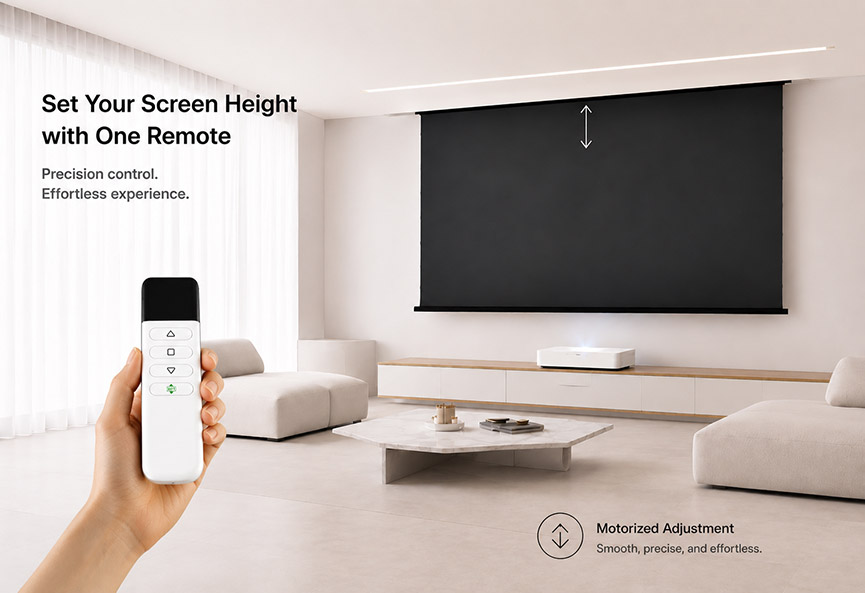

• Standard 868MHz RF (Radio Frequency) remote control/IR (Infrared) control is optional
• Ready to use, NO ASSEMBLY REQUIRED!
• With an arm expansion structure, the ultimate smooth-viewing experience with anti-wind arm technology for a perfectly flat, ripple-free screen every time.
• Better ALR effect (93%), better visual effect.
• Providing an outstanding contrast ratio and 178-degree viewing angle.
• Compatible with a 3rd party control system, ideal for use in meeting rooms, retail stores, home entertainment, and residential applications.
• Housing color option: White/Black
• Screen size up to a seamless 150-inch (130.7" x 73.5") in 16:9.

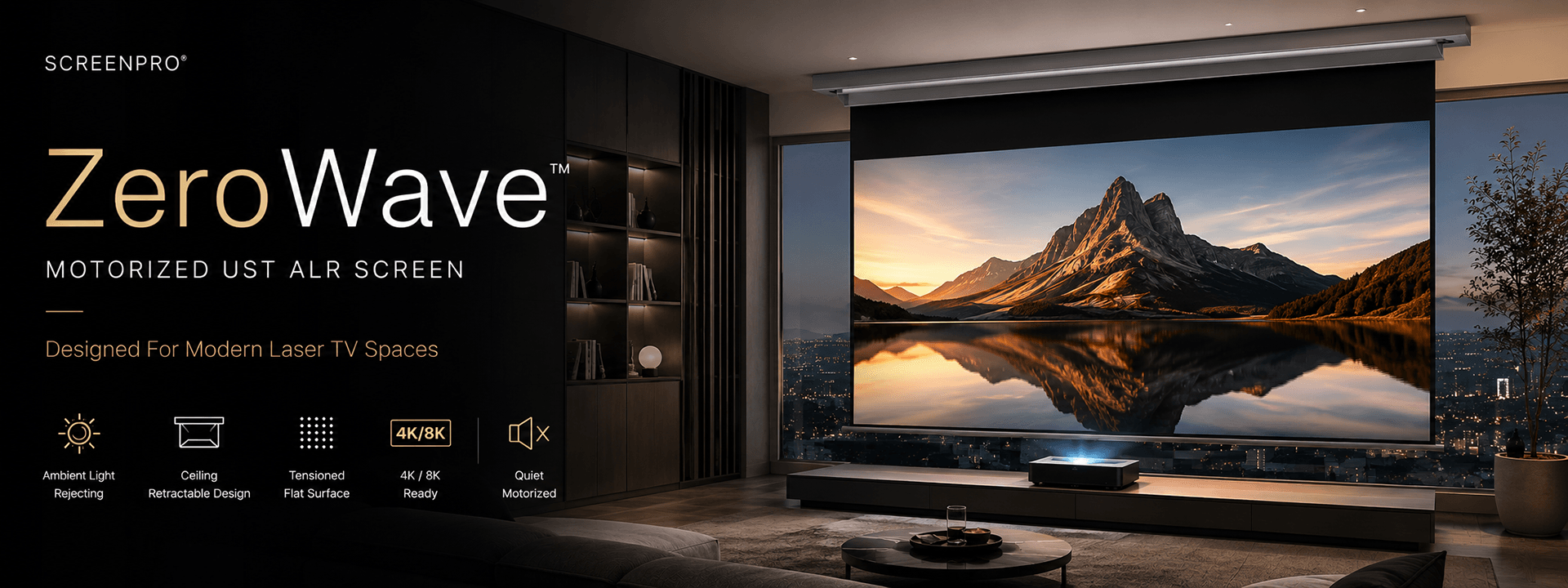

ZeroWave AW is a ceiling retractable UST ALR projection screen designed for Laser TV and ultra-short throw projectors.
It combines SCREENPRO T-Prism ambient light-rejecting technology with a motorized structure for clean installation, vivid contrast, and a premium home theater experience.

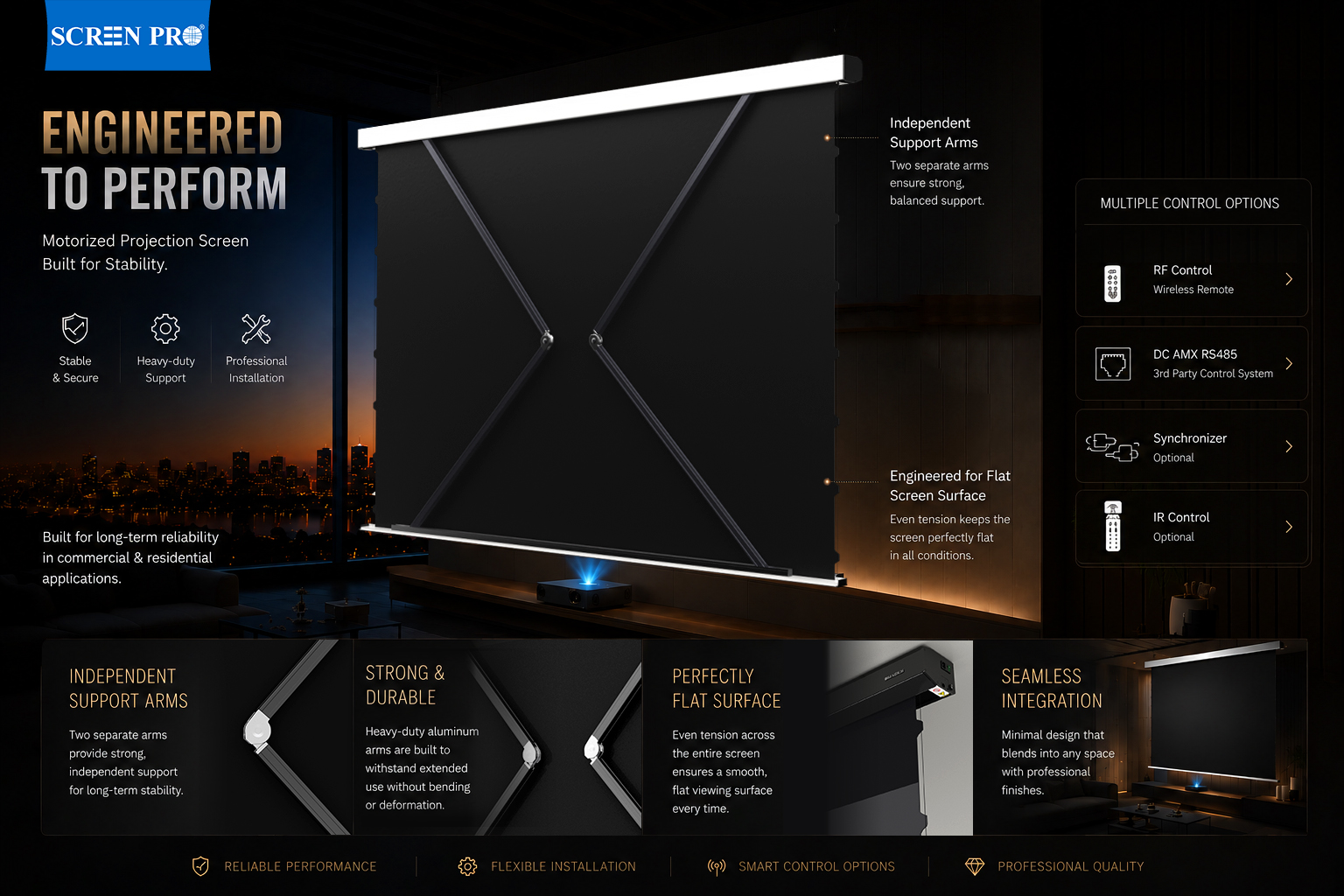

ZeroWave AW uses an innovative arm expansion structure to help keep the screen surface stable and smooth.
The reinforced X-structure supports the surface and helps reduce unwanted movement caused by airflow, ventilation, or indoor environmental disturbance.

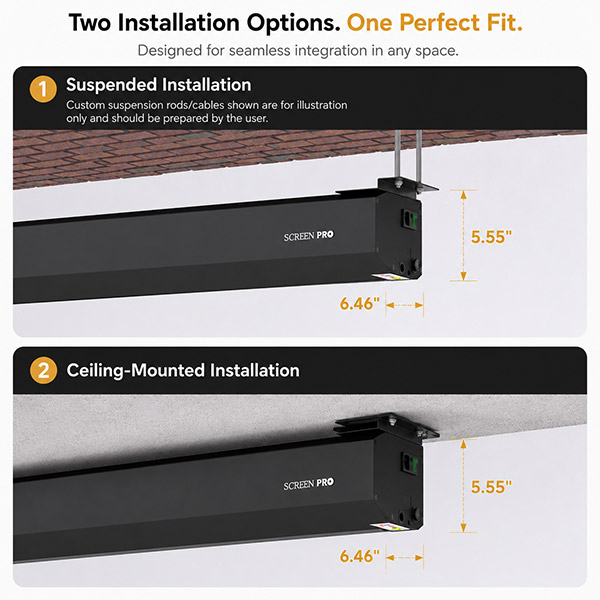

ZeroWave AW supports different installation directions depending on your projector placement.
The standard version is designed for projector placement below the screen, while the reversed version supports projector placement above the screen.
ZeroWave AW is designed for popular Laser TV and ultra short-throw projector brands, including Samsung, BenQ, Epson, Hisense, LG, Optoma, Sony, ViewSonic, Xiaomi, and other UST projector systems.
For the best image performance, the projector placement and screen version should be selected according to your installation direction.
WATCH INSTALLATION VIDEO
SCREENPRO ALR screens are designed for Laser TV and UST projection environments, helping preserve vivid color, image depth, and perceived black levels in rooms with ambient light.

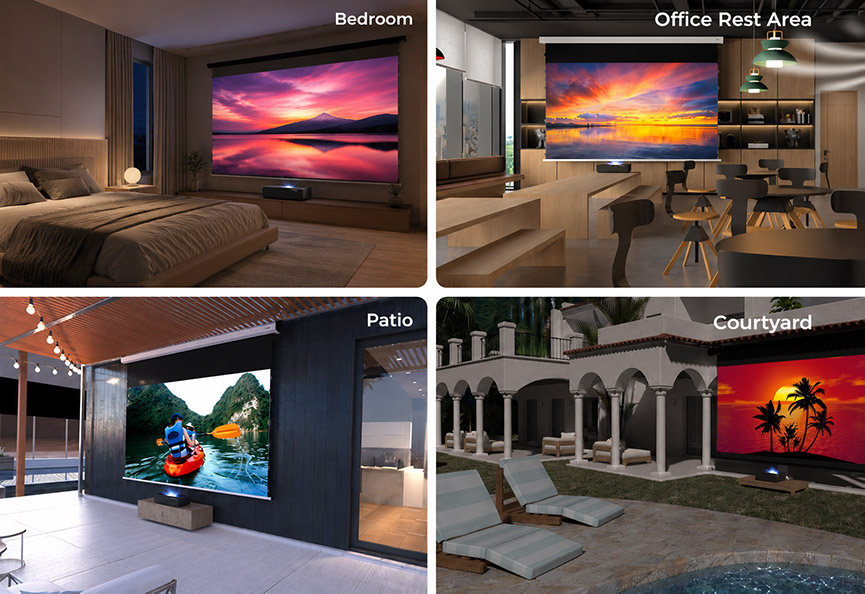

ZeroWave AW supports modern 4K and 8K projection systems and is suitable for home theater, business presentation, education, hospitality, and premium entertainment spaces.

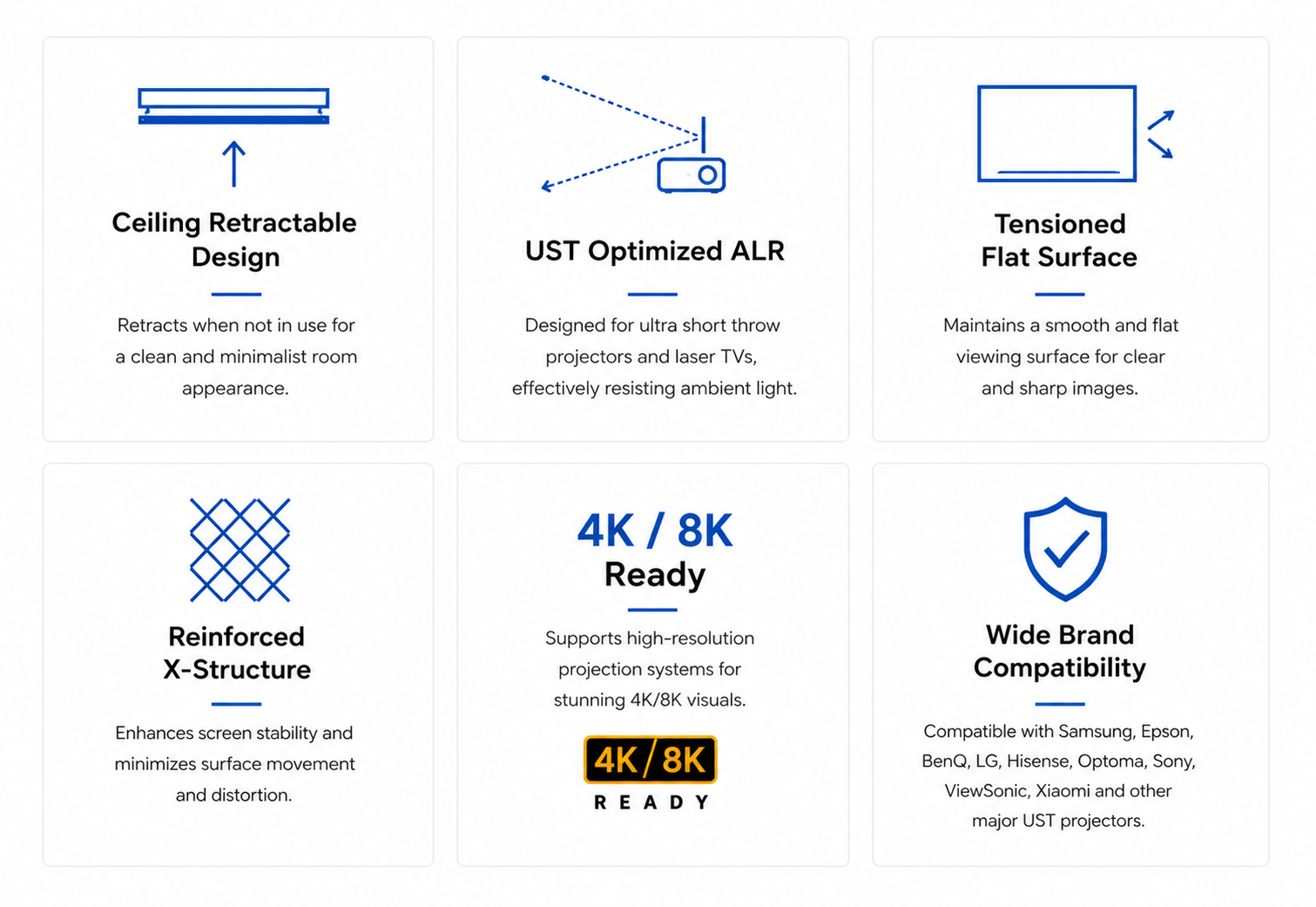

ZeroWave AW combines ceiling retractable installation, UST ALR image performance, reinforced stability, and smart compatibility for premium residential and commercial projection environments.

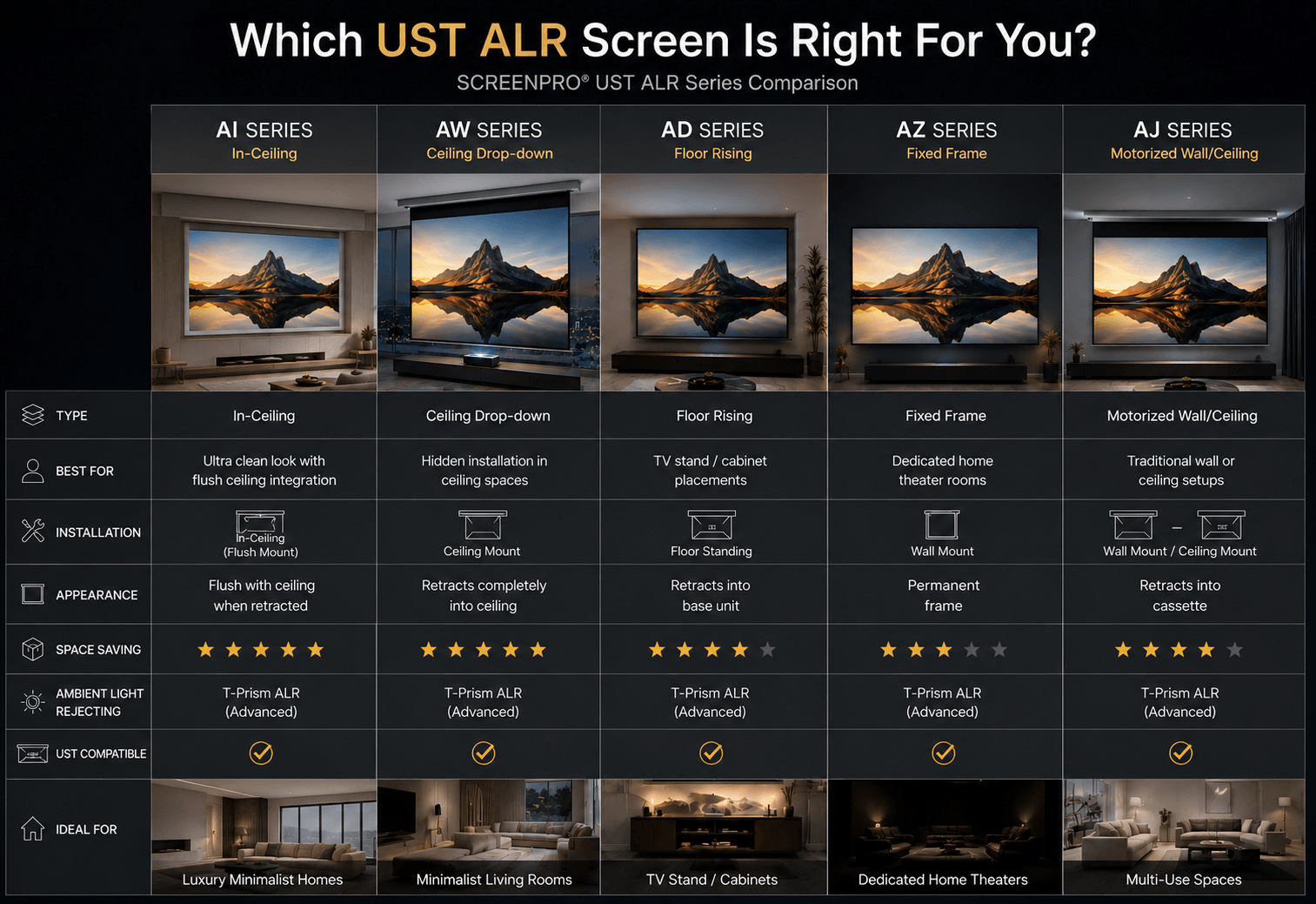

SCREENPRO® UST ALR Series Comparison. 5 UST ALR Screen Solutions. One SCREENPRO® Ecosystem.
From hidden in-ceiling installations to floor rising and fixed frame solutions, discover the ideal UST ALR screen for your space, installation style, and viewing environment.
Detailed dimensions are listed in millimeters. On mobile devices, swipe horizontally to view the complete specification table.
| SCREENPRO Motorized UST ALR Screen — ZeroWave | Unit: mm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Format | Diag. Size |
Viewing Size |
Black Border | Screen Overall Width |
Screen Overall Height |
Case Length |
Package Dimensions |
Ceiling Slot Dimension | Approx. Weight |
|||||
| Top | Bottom | L/R | P2 | H2 | W2 | Kg | Lbs | |||||||
| D | W×H | B2 | B1 | A | L | B | L3 | L1×W1×H1 | Cut-out Size | Weight | ||||
| 16:9 | 84″ | 1859×1046 | 275 | 35 | 55 | 2094 | 1356 | 2144 | 2182×230×180 | 2204 | 145 | 170 | 26 | 57 |
| 92″ | 2037×1145 | 275 | 35 | 55 | 2272 | 1453 | 2322 | 2360×230×180 | 2382 | 145 | 170 | 29 | 64 | |
| 100″ | 2214×1245 | 275 | 35 | 55 | 2449 | 1555 | 2499 | 2520×230×180 | 2559 | 145 | 170 | 32 | 70 | |
| 110″ | 2435×1370 | 275 | 35 | 55 | 2670 | 1680 | 2720 | 2730×230×180 | 2780 | 145 | 170 | 34 | 75 | |
| 120″ | 2656×1494 | 275 | 35 | 55 | 2891 | 1804 | 2941 | 2960×230×180 | 3001 | 145 | 170 | 37 | 81 | |
| 135″ | 2988×1681 | 225 | 35 | 55 | 3223 | 1941 | 3273 | 3300×230×180 | 3333 | 145 | 170 | 40 | 88 | |
| 150″ | 3320×1868 | 175 | 35 | 55 | 3555 | 2078 | 3605 | 3630×230×180 | 3665 | 145 | 170 | 44 | 97 | |
Note: L + 100 mm = screen overall length. For 135″ and 150″ models, wooden crate packaging may be required depending on shipping requirements.
What is T-Prism?
SCREENPRO® T-Prism is an ambient-light–rejection (ALR) screen material that uses a specialized trapezoidal optical micro-structure. This structure physically separates natural ambient light from the light coming from an ultra-short-throw (UST) projector.
The light-absorbing surface attenuates ambient light by approximately 86%, enabling effective ALR performance. On the reflective surface, a multi-layer directional coating is applied to optimize contrast, color accuracy, gain, and viewing angle. As a result, roughly 85% of the projector’s light is directed back toward the viewer’s eyes, maintaining image brightness and clarity even under natural lighting conditions.
This allows the screen to deliver consistent image quality in both day and night environments, and to preserve 4K UHD detail even in bright living rooms or other high-ambient-light spaces.
T-Prism Screen 4 Advantage
Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."
Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.
WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.
Explore compatible SCREENPRO systems designed for Laser TV, UST ALR viewing, home theater, architectural and professional projection environments.
Motorized ceiling retractable UST ALR screen for hidden Laser TV installations.
Floor rising ALR screen designed for TV cabinets, living rooms and Laser TV setups.
In-ceiling recessed UST ALR screen designed for clean architectural integration and hidden Laser TV installations.
Classic motorized UST ALR projection screen designed for residential, commercial and multi-purpose viewing spaces.
Ultra-slim fixed frame UST ALR screen for dedicated home theater and premium interior environments.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us.
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
