FIXED FRAME UST ALR SERIES
Ultra-slim fixed frame UST ALR projection screen designed for laser TV and ultra-short throw projectors, combining a modern 7mm bezel design with exceptional bright-room image performance.
UST projectors allow displaying a 150-inch image from a short distance(about 16"/40cm).
At SCREEN PRO, we offer an optical revolution T-Prism that makes all the difference to your viewing experience, a technical improvement that results in a brighter, sharper image and the ultimate viewing experience, whether the projector is sitting above or below the bottom of the image.
See more immaculate and brighter colors than ever
See the world come vividly to life with unprecedented color and pure black contrast. T Prism Compared with the standard white material, T-Prism not only delivers higher contrast but also ALR features, so you won’t miss a single detail in dazzling light or deep shadow.
ALR (Ambient Light Rejecting) screens designed for Laser TV/UST (Ultra Short Throw) projectors, carrying vivid high-definition images regardless of ambient light, brands such as:
SAMSUNG | BenQ | XIAOMI | Epson | Hitachi| LG | Optoma | Sony | ViewSonic, etc, enable compatibility with 8K resolution projectors
Supports Both Table and Ceiling Installation
Standard version - projector below the screen
With the standard version (Position A), the projector should be mounted below the screen for optimal image quality.
Reversed version - projector above screen
With the Position B version, the projector is mounted above the screen to simplify the desktop setting.
An add-on option for your projection screen. Control and set the light color temperature/ speed/ effect/ mode/ from your smartphone device(*"LED Chord", available in Google Play or App Store). Provide a glow to your game, movie, or family reunion. Even have music sync features: A built-in mic allows the LED lights to sync to any music type.
*Note: These LED lights are not waterproof and are designed for indoor use.
〈 WATCH THE INSTALLATION VIDEO?
Lightweight aluminum split-frame design. Ultra-thin black bezel trim enhances the aesthetics, and hand-wrapped black velvet is also possible, designed to maximize your viewing experience while minimizing installation space.
The incredibly slim profile allows the screen to hang on your wall like a work of art, enhancing your home interior and adding elegance to your space. The double-layer frame structure makes borderless installation possible.
T-Prism optical material technology allows the display of true image brightness, color saturation, and contrast for superior picture performance. Unlike others that are restricted by material structural technology, T-Prism is capable of 150 inches of extreme realism and motorized designs.
| LEARN MORE |
SCREENPRO retractable projector table projects up to 150" with the cabinet close to the wall. Enlarge surface area, compatible with 99% of laser projectors on the market. Automatically slides out/back when powering on/off your projector.
| FIND OUT MORE |
At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.
| SHOP NOW |
We send packages overseas and ensure that your screen is securely wrapped to prevent damage. The inner layer of the carton package consists of a pearl cotton and foam board buffer layer, while the outer frame is made of customized solid wood to guarantee that the product arrives in good condition. You can relax and wait for it to arrive at your doorstep.

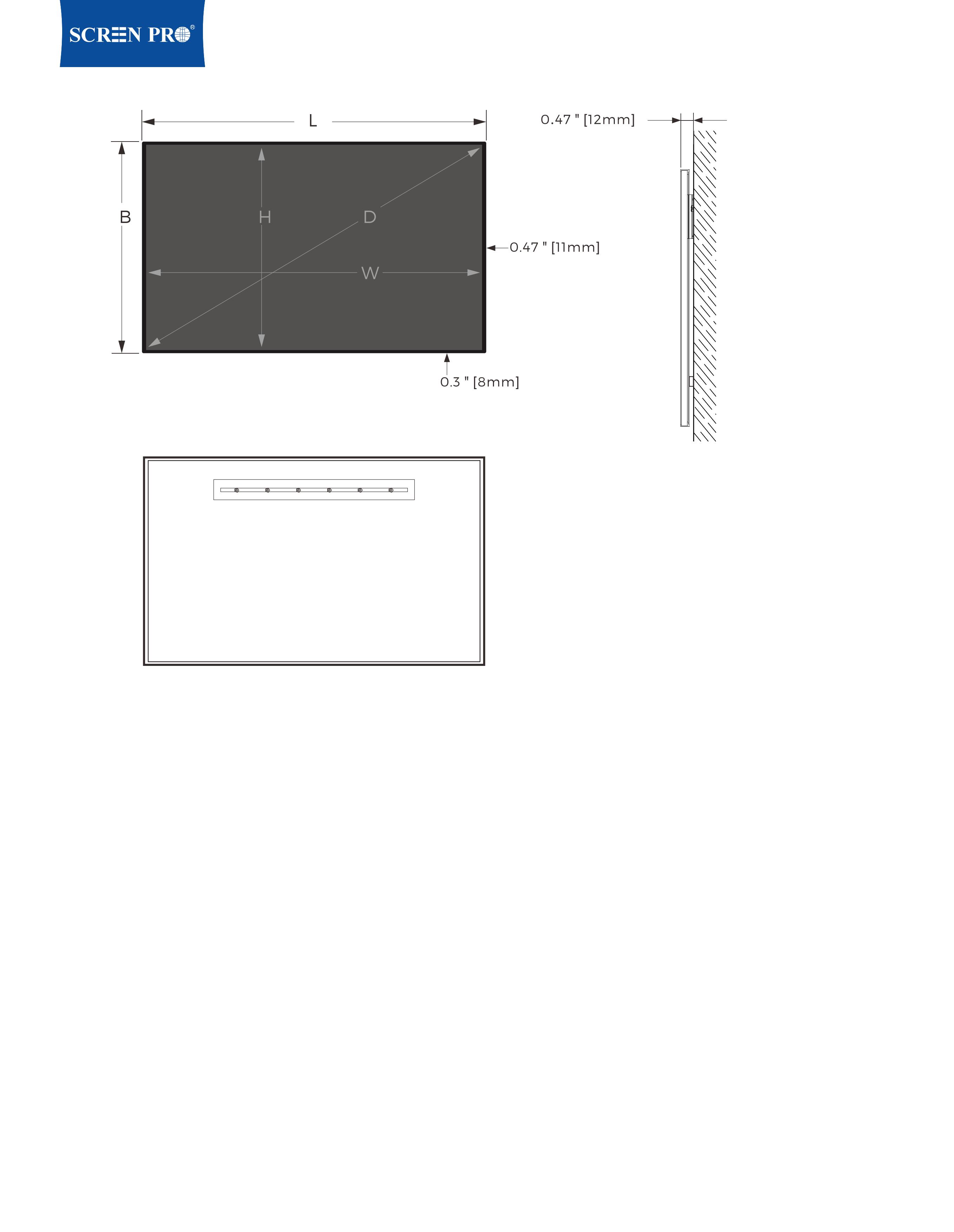

SCREENPRO Size Chart Pro Ultra
SCREENPRO Fixed ALR Screen For UST - AZ is designed for ultra short throw projector installations. Compare popular UST screen sizes, overall frame dimensions, package specifications, and installation reference data before planning your Laser TV or home theater system.
Confirm projector throw ratio, cabinet depth, viewing distance, and wall width before selecting the final AZ screen size.
Use the engineering labels together with the Quick Specs and Full Engineering Specifications below.
Core viewing size, overall dimensions, and approximate weight for fast comparison.
| Format | Diag. Size | Viewing Size | Overall L | Overall B | T | Weight |
|---|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2229 mm | 1260 mm | 540 mm | 14.9 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2450 mm | 1385 mm | 602 mm | 16.4 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2671 mm | 1509 mm | 665 mm | 17.7 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3003 mm | 1696 mm | 745 mm | 24.1 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3335 mm | 1883 mm | 838 mm | 26.9 kg |

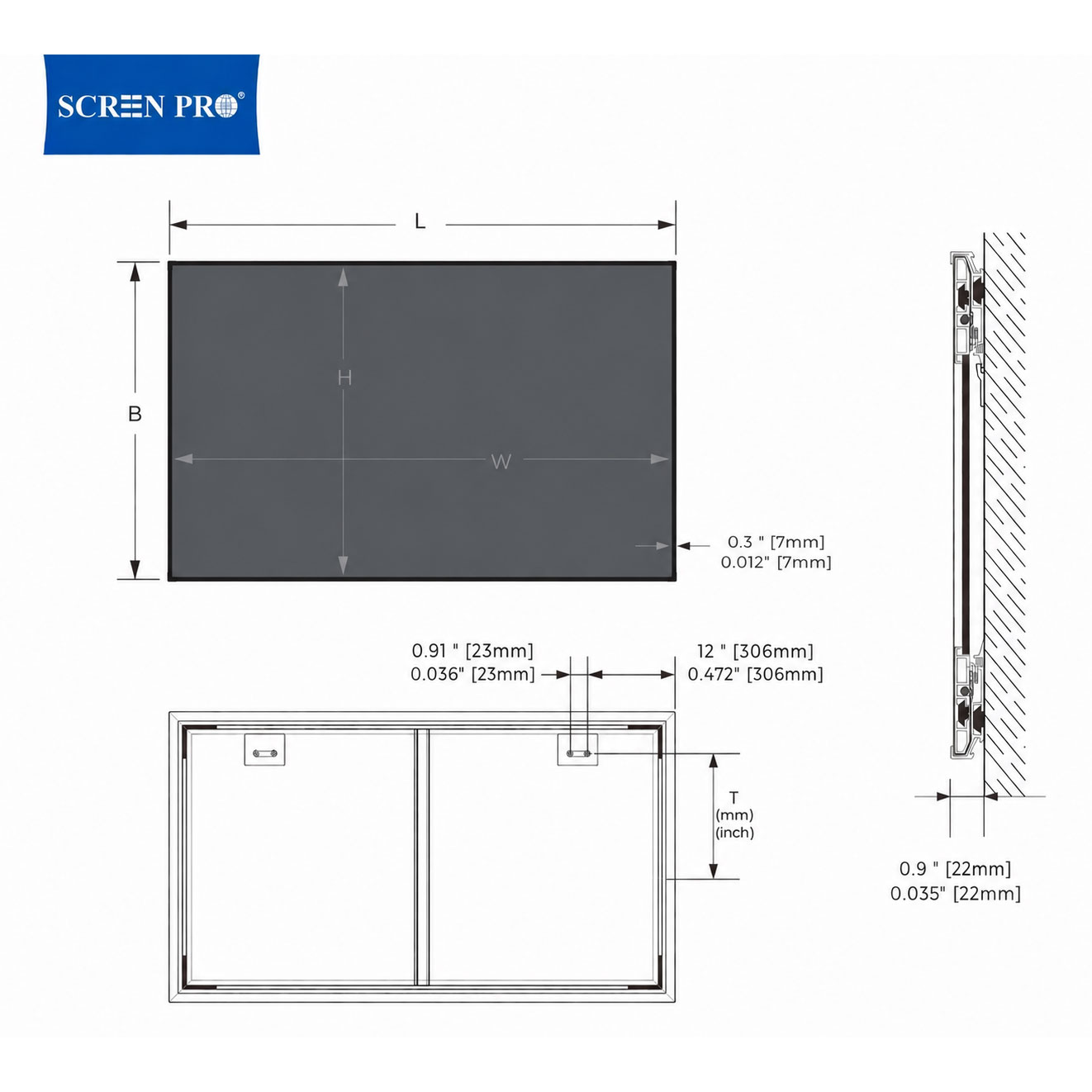

Engineering & Installation
View complete AZ size data including viewing size, overall dimensions, T value, package dimensions, fabric unit information, approximate weight, and frame structure notes.
Detailed project-level dimensions for SCREENPRO Fixed ALR Screen For UST - AZ.
| Format | Diag. Size | Viewing Size | Overall L | Overall B | T | Package Dimensions | Fabric Unit | Weight | Note |
|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2229 mm | 1260 mm | 540 mm | 270 × 140 × 1385 mm |
4.4 kg 1380 × 140 × 115 mm |
14.9 kg | Type 1-A Frame |
| 16:9 | 110" | 2434 × 1369 mm | 2450 mm | 1385 mm | 602 mm | 270 × 140 × 1509 mm | — | 16.4 kg | Type 1-A Frame |
| 16:9 | 120" | 2656 × 1494 mm | 2671 mm | 1509 mm | 665 mm | 270 × 140 × 1635 mm |
5.5 kg 1635 × 140 × 115 mm |
17.7 kg | Type 1-A Frame |
| 16:9 | 135" | 2988 × 1680 mm | 3003 mm | 1696 mm | 745 mm | 270 × 140 × 1825 mm | — | 24.1 kg | Type 1-B Frame |
| 16:9 | 150" | 3320 × 1867 mm | 3335 mm | 1883 mm | 838 mm | 270 × 140 × 2010 mm | — | 26.9 kg | Type 1-B Frame |
| 16:10 | 100" | 2153 × 1346 mm | 2169 mm | 1361 mm | 590 mm | 270 × 140 × 1490 mm | — | 15.4 kg | Type 1-A Frame |
| 16:10 | 110" | 2369 × 1480 mm | 2384 mm | 1496 mm | 658 mm | 270 × 140 × 1625 mm | — | 16.9 kg | Type 1-A Frame |
| 16:10 | 120" | 2584 × 1615 mm | 2600 mm | 1630 mm | 725 mm | 270 × 140 × 1760 mm | — | 18.5 kg | Type 1-A Frame |
Projection Planning
Use the SCREENPRO projection calculator to estimate ideal screen size, projector placement, and viewing distance for your UST projector system.
SCREENPRO® T-Prism is an ambient light rejecting screen material engineered for ultra short throw projection. Its trapezoidal optical micro-structure helps separate overhead ambient light from projector light, improving contrast and image clarity in bright living rooms and home theater spaces.
The T-Prism surface uses a directional optical structure to absorb unwanted ambient light while reflecting the projector image back toward the viewer. It helps maintain brightness, contrast, and 4K / 8K image detail for daily home entertainment.
Explore SCREENPRO ultra short throw ALR screen solutions for floor-rising, motorized, in-ceiling and fixed-frame installations — designed for modern laser TV and UST projector environments.
Motorized floor-rising UST ALR screen designed for laser TV and ultra short throw projector installations.
View Product →Ceiling or wall mounted UST ALR projector screen for premium laser TV and living room cinema environments.
View Product →Recessed in-ceiling UST ALR screen solution for hidden architectural laser TV installations.
View Product →Ultra-slim 7mm frame UST ALR screen with modern minimalist appearance for premium interiors.
View Product →Acoustic transparent UST ALR screen with ZeroWave technology, designed for immersive front sound placement and premium laser TV rooms.
View Product →Tell us your projector model, room environment and installation requirements. SCREENPRO will recommend the most suitable UST ALR screen structure for your project.
Premium cabinet solution designed for floor-rising ALR screen and ultra short throw projector installations.
Automatic memory-position projector shelf designed for precise UST projector alignment and hidden laser TV layouts.
Stable ceiling mounting solution for projector installation in home theater, meeting room and commercial spaces.
Inch-screw compatible ceiling bracket for Epson, Yaber, HAPPRUN, TMY and most standard projectors.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
