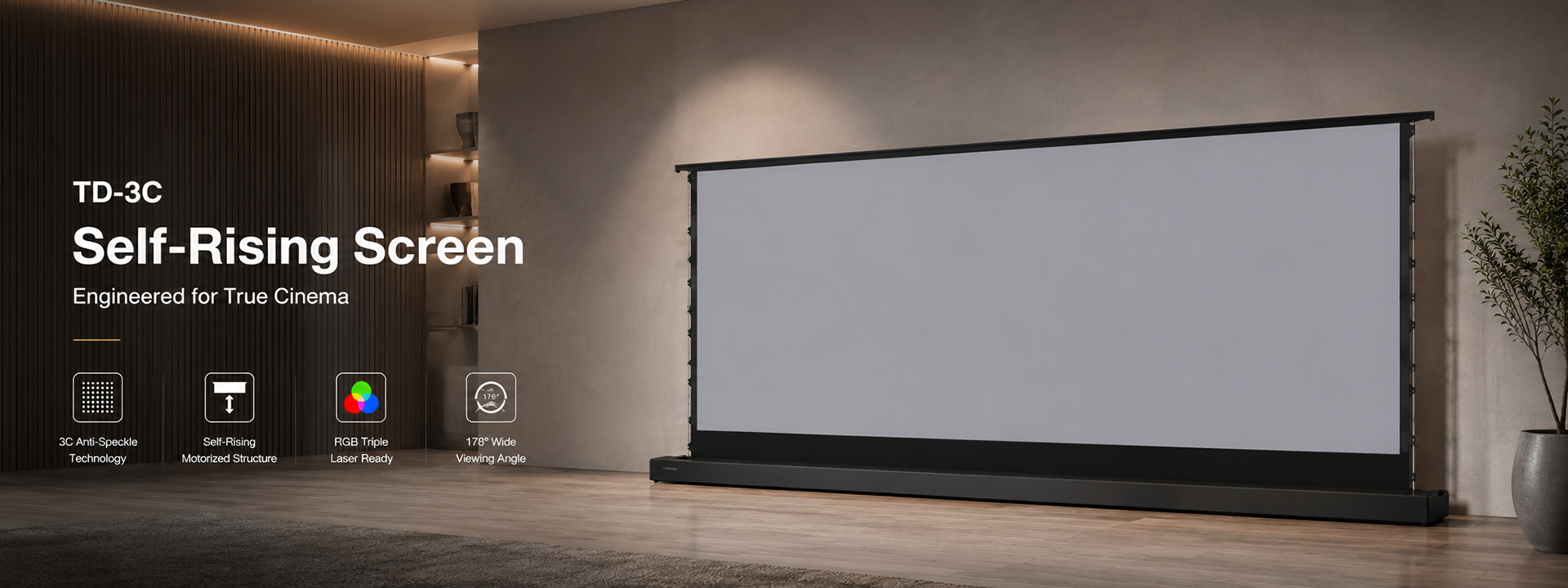

[Motorized Self-Rising Screen Designed for RGB Triple Laser Projectors]
At SCREEN PRO, our advanced 3C optical material delivers a true breakthrough in projection performance. With significantly enhanced black levels and superior speckle resistance, it produces deeper contrast, cleaner imagery, and a remarkably refined viewing experience.
Colorful, Dynamic & Intensely Cinematic.

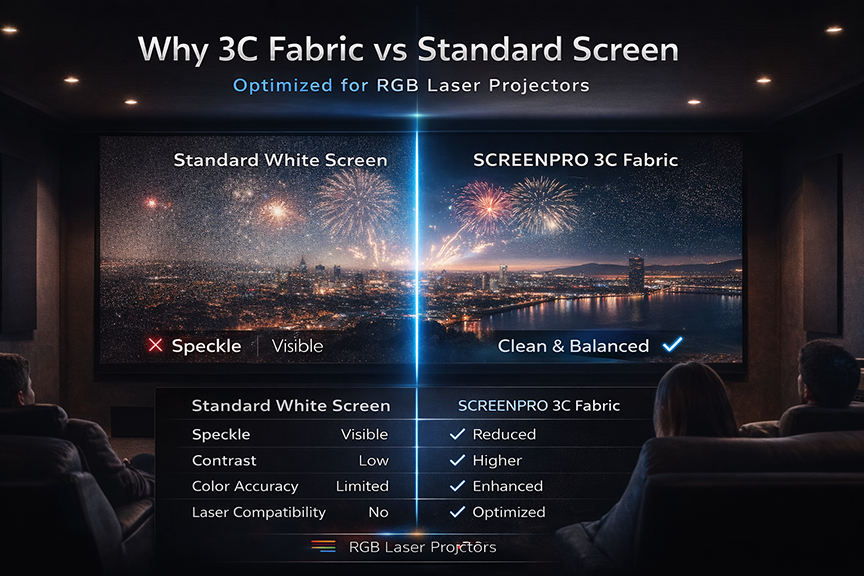

Unlike conventional projection screens, 3C fabric features a specially engineered micro-structured surface that disperses coherent laser light.
✔ Significantly reduces visible laser speckle
✔ Maintains brightness and color fidelity
✔ Improves viewing comfort
At a generous 178-degree viewing angle, everyone in the room gets the best seat in the house and enjoys the family movie night or game night with the crowd.
Duo V-shaped Arm With Unique Spherical Bearing.
The ground-rising structure coordinates with the silent tubular motor, which drives a double V-shaped structure bracket with uniform force and operates smoothly with low noise to avoid stretching deformation of the fabric.
Syncs with your projector's Power. It allows you to lose your remote and let the projector take over the automation.
*upon request.
You are unveiling your laser TV and a floor-rising screen from the concealed cabinet(smart TV cabinet required ). The micro-movement switch is vital for the whole synchronization; it supports the smart cabinet to detect if the screen is open or closed, and helps stop and flip the lid cover from closing before the screen is closed.
Withstanding screen structure gives you more diversity in home decor and automation.
Wall bracket (need to purchase additional)
Simple angular appearance without too many line modifications, and it is easy to maintain.
A new way to open your private home theater.
Say NO to a messy wiring outlet on your ceiling, or have long runs of HDMI cables from your sources to the projector. The self-standing structure allows your screen to stand freely, but also allows the screen to be hidden in the cabinet without even noticing
At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.
| SHOP NOW |
We send packages overseas, wrapping your screen to avoid it being damaged securely. The inner layer of the carton package is pearl cotton and a foam board buffer layer. A customized wood outer frame ensures the product is delivered to your home in good condition. You can chill and relax waiting for it to appear at your doorstep.
SCREENPRO Size Chart Pro Ultra

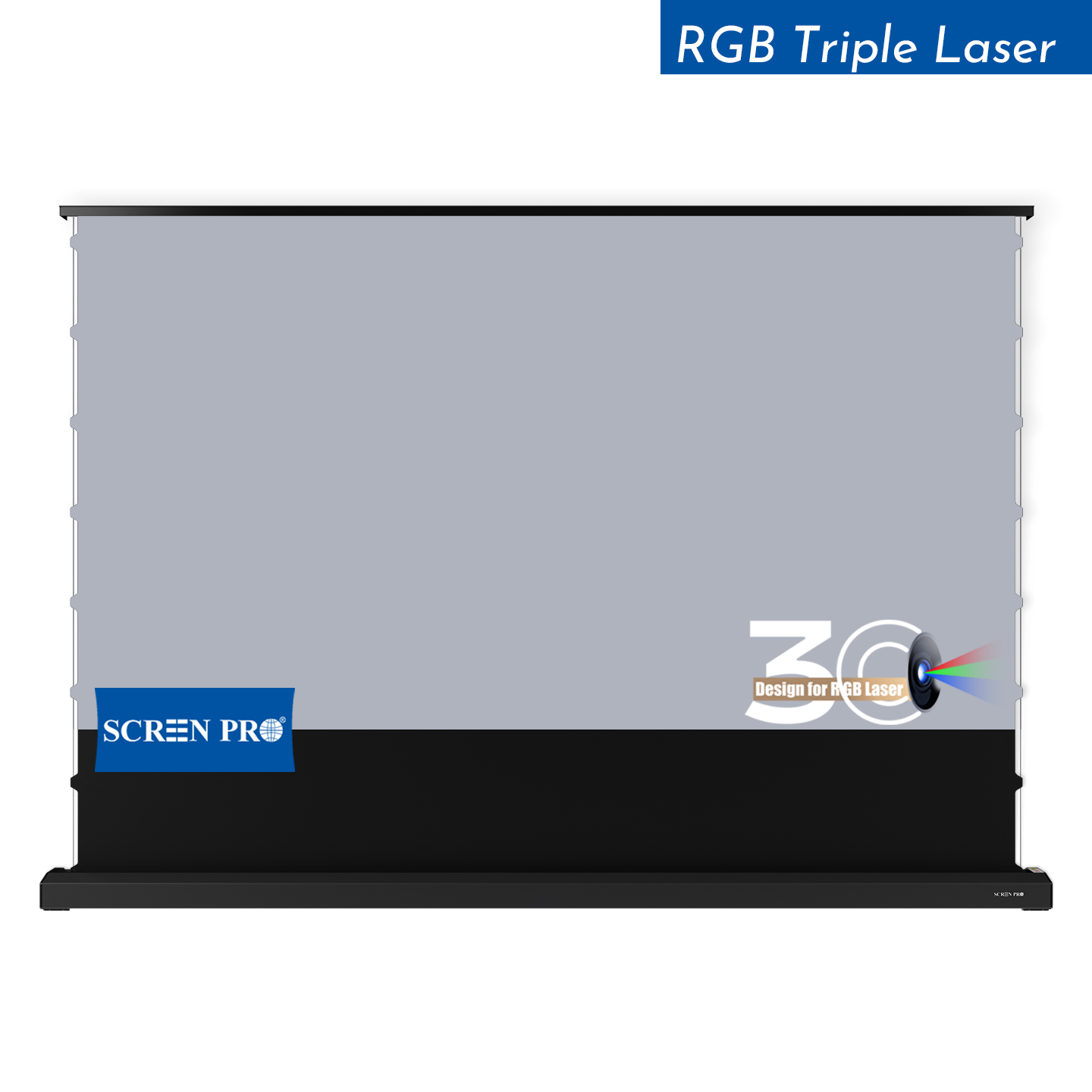

The SCREENPRO® TD-3C self-rising projection screen is designed for RGB triple-laser projectors and 3C anti-speckle performance. Compare viewing dimensions, cabinet dimensions, package size, and installation requirements before planning your home cinema system.
Estimate viewing distance, projector throw distance, screen width, and screen height before choosing your TD-3C floor-rising screen.
Core viewing size, overall dimensions, and weight for quick room planning.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Weight |
|---|---|---|---|---|---|
| 16:9 | 92" | 2037 × 1145 mm | 2272 mm | 1578 mm | 29 kg / 64 lbs |
| 16:9 | 100" | 2214 × 1245 mm | 2449 mm | 1680 mm | 32 kg / 70 lbs |
| 16:9 | 110" | 2435 × 1370 mm | 2670 mm | 1805 mm | 34 kg / 75 lbs |
| 16:9 | 120" | 2656 × 1494 mm | 2891 mm | 1929 mm | 37 kg / 81 lbs |
| 16:9 | 135" | 2988 × 1681 mm | 3223 mm | 2066 mm | 40 kg / 88 lbs |
| 16:9 | 150" | 3320 × 1868 mm | 3555 mm | 2203 mm | 44 kg / 97 lbs |
Engineering & Installation
View detailed package dimensions, top and bottom border values, L/R margin, housing reference, and project-level specifications for AV integrators, dealers, and custom installation planning.
Detailed dimensions for integrators, project quotation, logistics planning, and installation confirmation.
| Format | Diag. Size | Viewing Size | Top | Bottom | L/R | Overall Length | Overall Height | Package Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 92" | 2037 × 1145 mm | 35 mm | 400 mm | 55 mm | 2272 mm | 1578 mm | 2360 × 230 × 180 mm | 29 kg / 64 lbs |
| 16:9 | 100" | 2214 × 1245 mm | 35 mm | 400 mm | 55 mm | 2449 mm | 1680 mm | 2520 × 230 × 180 mm | 32 kg / 70 lbs |
| 16:9 | 110" | 2435 × 1370 mm | 35 mm | 400 mm | 55 mm | 2670 mm | 1805 mm | 2730 × 230 × 180 mm | 34 kg / 75 lbs |
| 16:9 | 120" | 2656 × 1494 mm | 35 mm | 400 mm | 55 mm | 2891 mm | 1929 mm | 2960 × 230 × 180 mm | 37 kg / 81 lbs |
| 16:9 | 135" | 2988 × 1681 mm | 35 mm | 350 mm | 55 mm | 3223 mm | 2066 mm | 3300 × 230 × 180 mm | 40 kg / 88 lbs |
| 16:9 | 150" | 3320 × 1868 mm | 35 mm | 300 mm | 55 mm | 3555 mm | 2203 mm | 3630 × 230 × 180 mm | 44 kg / 97 lbs |
Use the SCREENPRO® Projection Screen Size Calculator to estimate viewing distance, screen dimensions, and projector throw compatibility before selecting your TD-3C self-rising screen.
Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural, and professional projection environments.
Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.

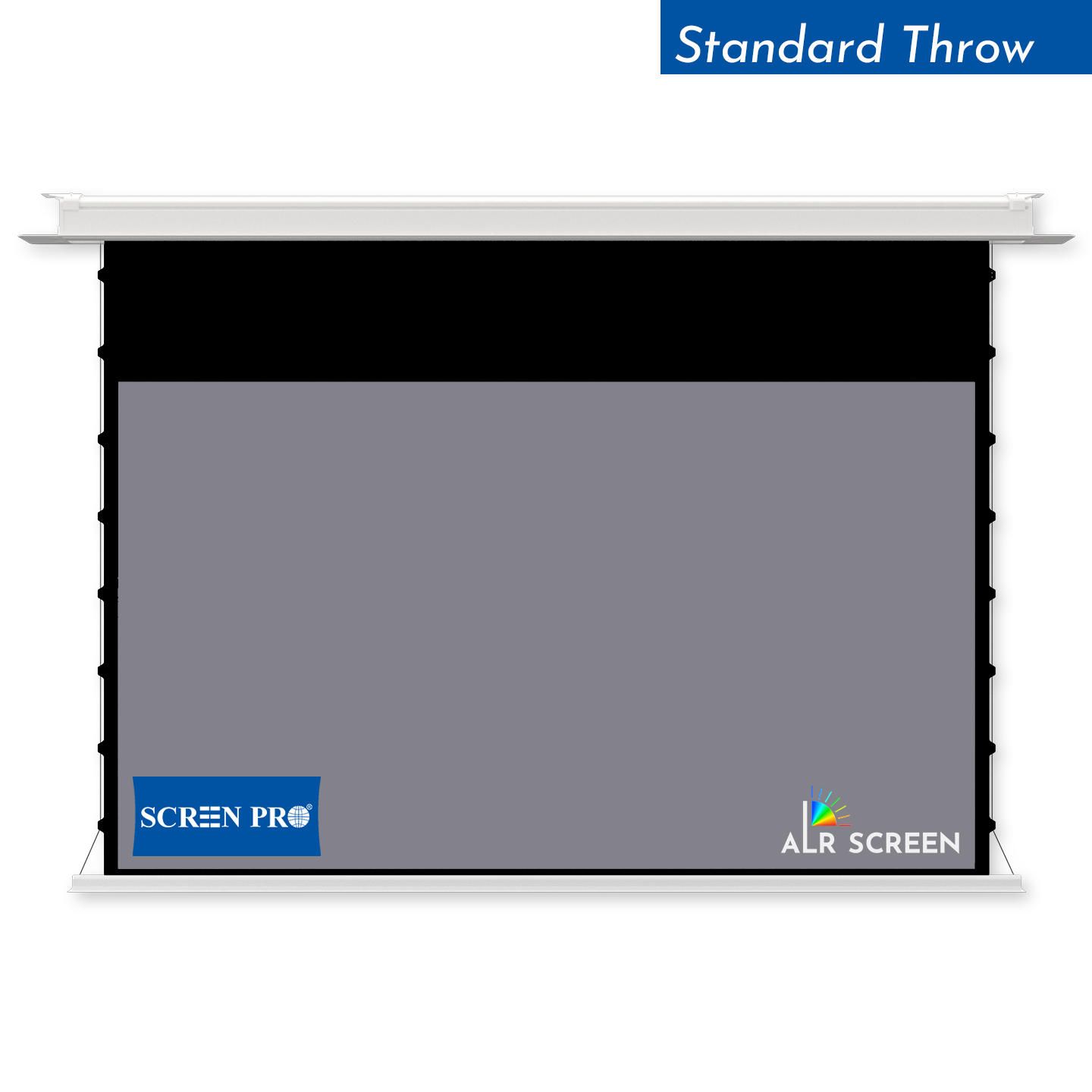

View Product →Recessed screen solution for clean architectural integration in premium residential or commercial spaces.
View Product →Classic electric projection screen for flexible residential, education and commercial display applications.

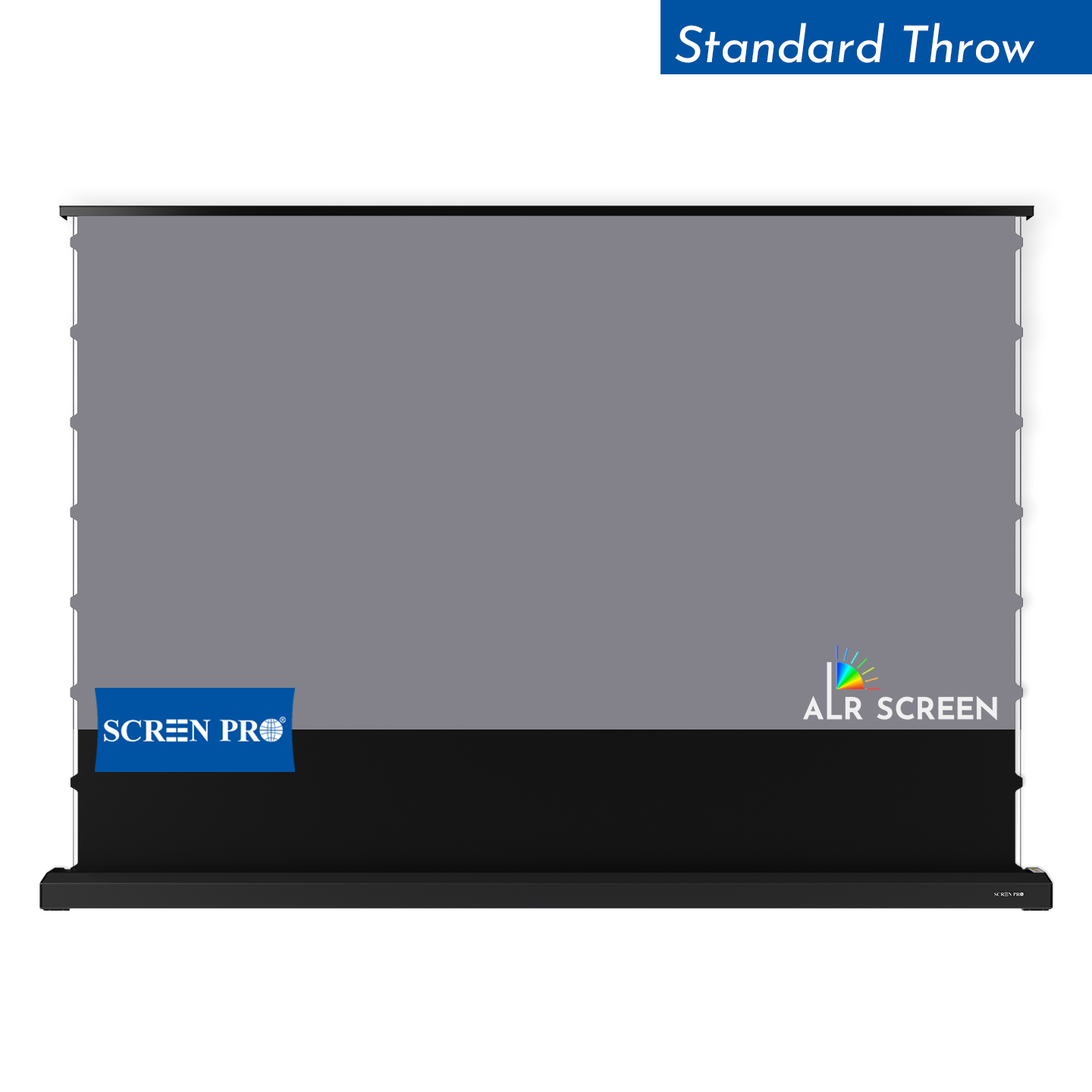

View Product →Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.

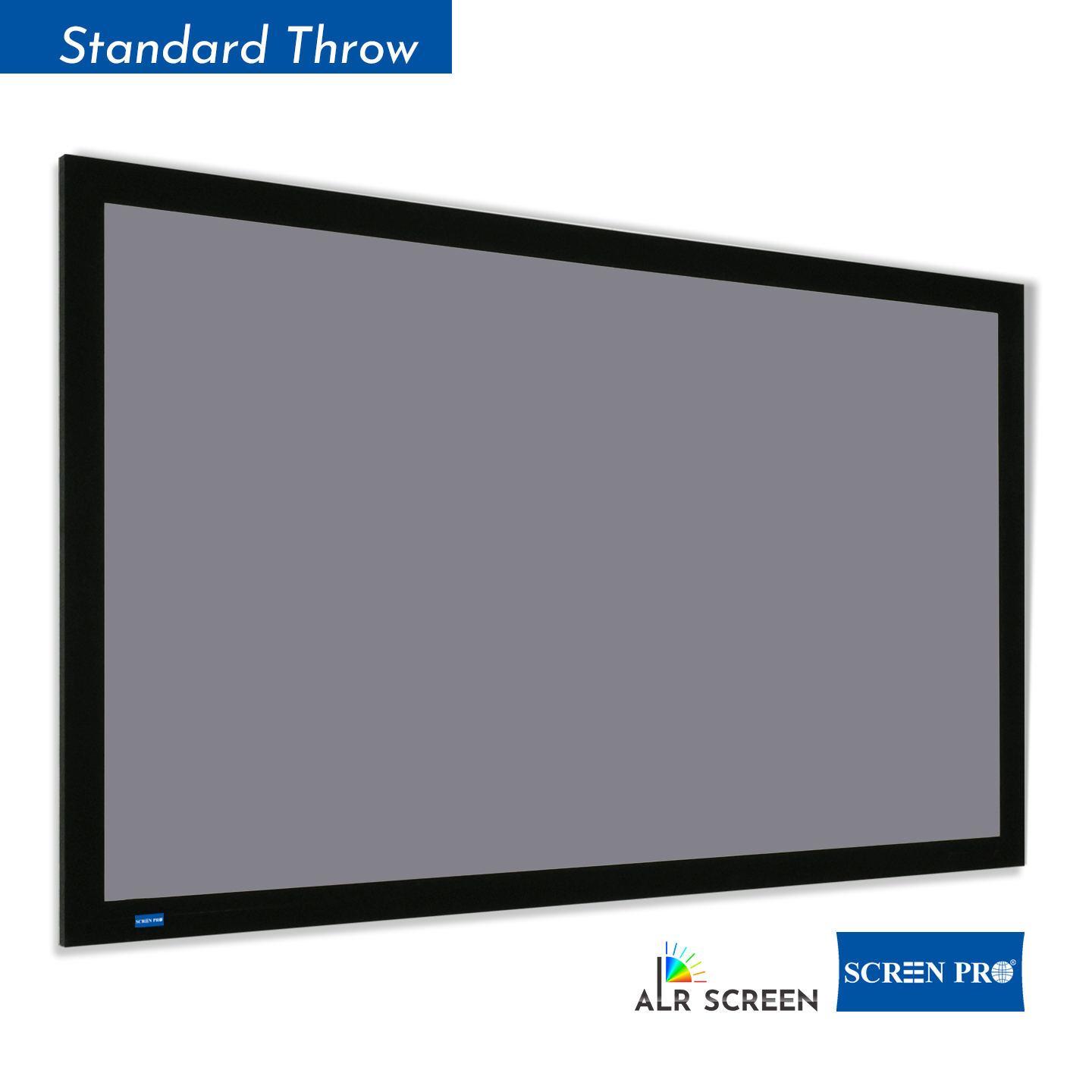

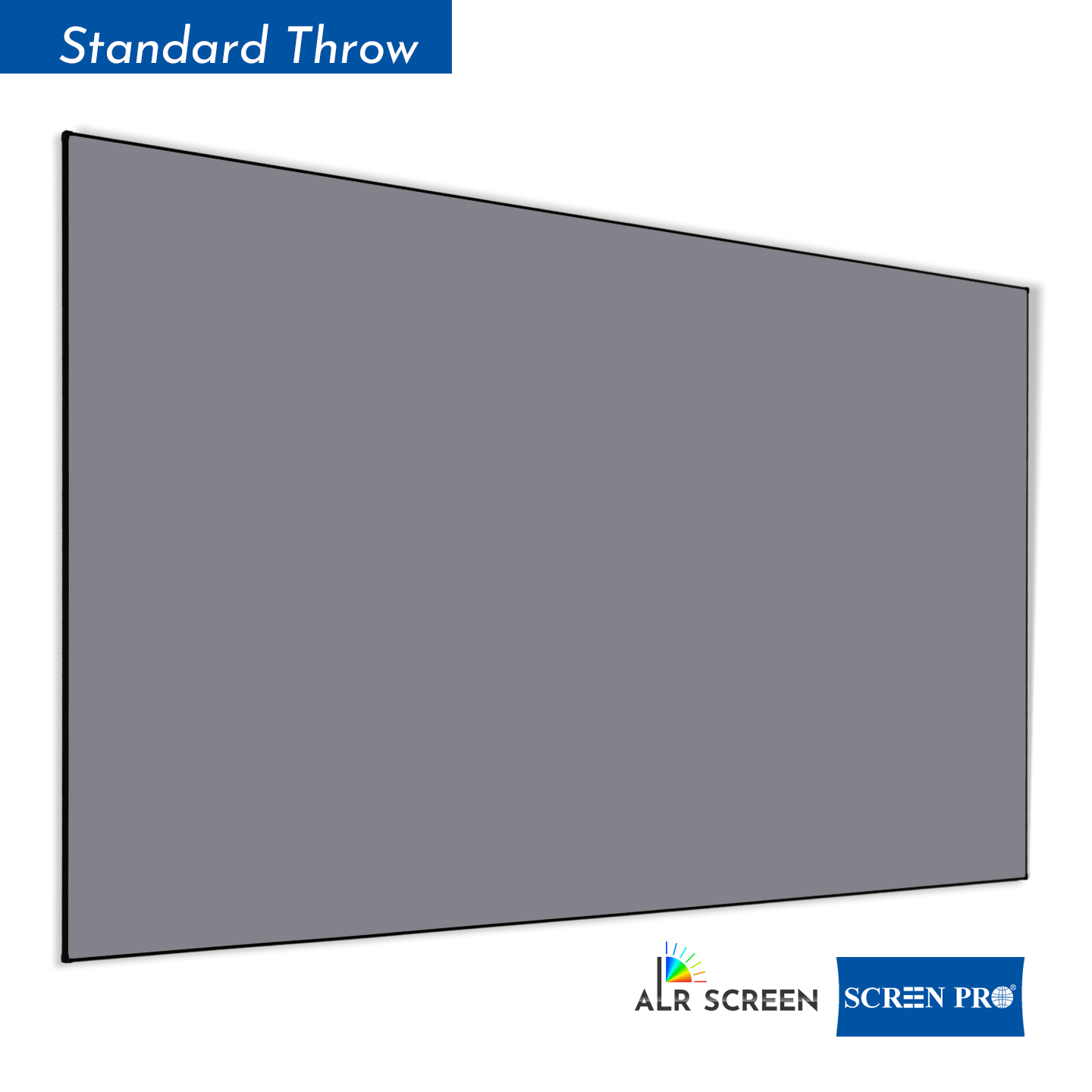

View Product →Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.
View Product →Tell us your projector model, room environment and installation requirements. SCREENPRO will recommend the most suitable screen structure and optical surface for your project.
Automatically synchronize projector power with SCREENPRO motorized screens for seamless startup and shutdown automation.
Install floor-rising projector screens behind cabinets or directly against the wall for cleaner hidden installation layouts.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample .
No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.
Yes. Wall-mounting brackets are included with the wall-mounted screen series.
Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us .
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
