Can I purchase a small sample of the material?

Yes. You can purchase a screen material sample from SCREENPRO.

My viewing is mostly at night with only some faint ambient light. During the day, we mainly use the OLED TV behind the drop-down screen. Which screen would be most suitable for me?

For primarily nighttime viewing, SCREENPRO generally recommends a high-contrast grey screen or an ALR screen depending on projector type and room lighting. For standard throw projectors, a high-contrast grey screen can improve black levels and perceived contrast. For ultra short-throw projectors, a dedicated UST ALR screen is usually recommended.

What is the voltage for the SCREENPRO motorized series? Can it be used abroad?

SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. The correct voltage will be supplied according to the shipping address.

RGB laser projector screen

How to Install SCREENPRO Projector Screen

Fixed frame screen with ALR feature

Stunning Visuals

Engineered to perform flawlessly with Standard Throw installations and next-generation RGB Triple Laser systems. At SCREEN PRO, we offer an optical revolution that makes all the difference to your viewing experience, a technical improvement that results in a brighter, sharper image, and the ultimate viewing experience. SCREEN PRO ALR screen offers a beautifully designed frame screen, with a frame that only measures 7mm in width. It's designed to maximize your viewing experience while minimizing installation space.

compatible projector brand

Captivating 4K UHD Visuals

No more washed-out images, SCREEN PRO ALR screen designed for Long/Normal throw projectors, brands such as: ViewSonic V57, Valerion Pro2, VisionMaster Pro2, XGIMI Horizon, JMGO N1s, BenQ V5010i, etc. Enables compatibility with 8K resolution projectors.

Projector material with layers inside

Why Choose 3C

Unlike normal standard white fabric, the ALR screen carries vivid high-definition images regardless of ambient light; the optical material technology allows the display of true image brightness, color saturation, and contrast for superior picture performance.

Frame screen with

Classic Matte Black Profile Design

A metal frame that's stable, durable, and easy to maintain
Ultra-thin bezel enhances the aesthetics, and hand-wrapped black velvet is also possible, designed to maximize your viewing experience while minimizing installation space, giving the screen an even wider appearance. The outer layer of the screen is designed with anti-scratch material, which is easy to clean and maintain; the aluminum alloy frame makes the rollable screen flatter and more stable.

projection screen with frame

At One With Your Wall

The incredibly slim profile allows the screen to hang on your wall like a work of art, enhancing your home interior and adding elegance to your space. Double-layer frame structure makes borderless installation possible

frame screen with detailed

Hassle-free Installation

We strive for the best craftsmanship in each hand-built screen that we make. Simply unbox and follow the instructions, mount the projector screen to the wall, and enjoy your private theater in minutes.

WATCH THE INSTALLATION VIDEO 〉

SCREENPRO ALR screen features description

Are you looking for a screen material sample(A4 size) to test on?

At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.

SHOP NOW

SCREENPRO projector screen tensions adjustment

We Care, So You Don't Have To

We send packages overseas and ensure that your screen is securely wrapped to prevent damage. The inner layer of the carton package consists of a pearl cotton and foam board buffer layer, while the outer frame is made of customized solid wood to guarantee that the product arrives in good condition. You can relax and wait for it to arrive at your doorstep.

SCREENPRO Size Chart Pro Ultra

Select the Right Fixed Frame Screen Size for Your Space

The SCREENPRO® Fixed Frame Screen - Ultra Thin series is designed for premium home theater, custom cinema rooms, and professional AV projects. Compare popular screen formats, viewing dimensions, overall frame size, split-frame packaging, and project-level installation data before planning your screen system.

100" Ideal for compact living rooms, media rooms, and apartment cinema spaces.

120" - 150" Balanced choice for premium home theater and dedicated entertainment rooms.

180"+ Recommended for large cinema rooms, commercial spaces, and project-based installations.

Not Sure Which Screen Format Fits Your Project?

Choose from 16:9, 16:10, and 2.35:1 formats based on projector type, room width, seating distance, and cinematic viewing preference.

Project Inquiry →

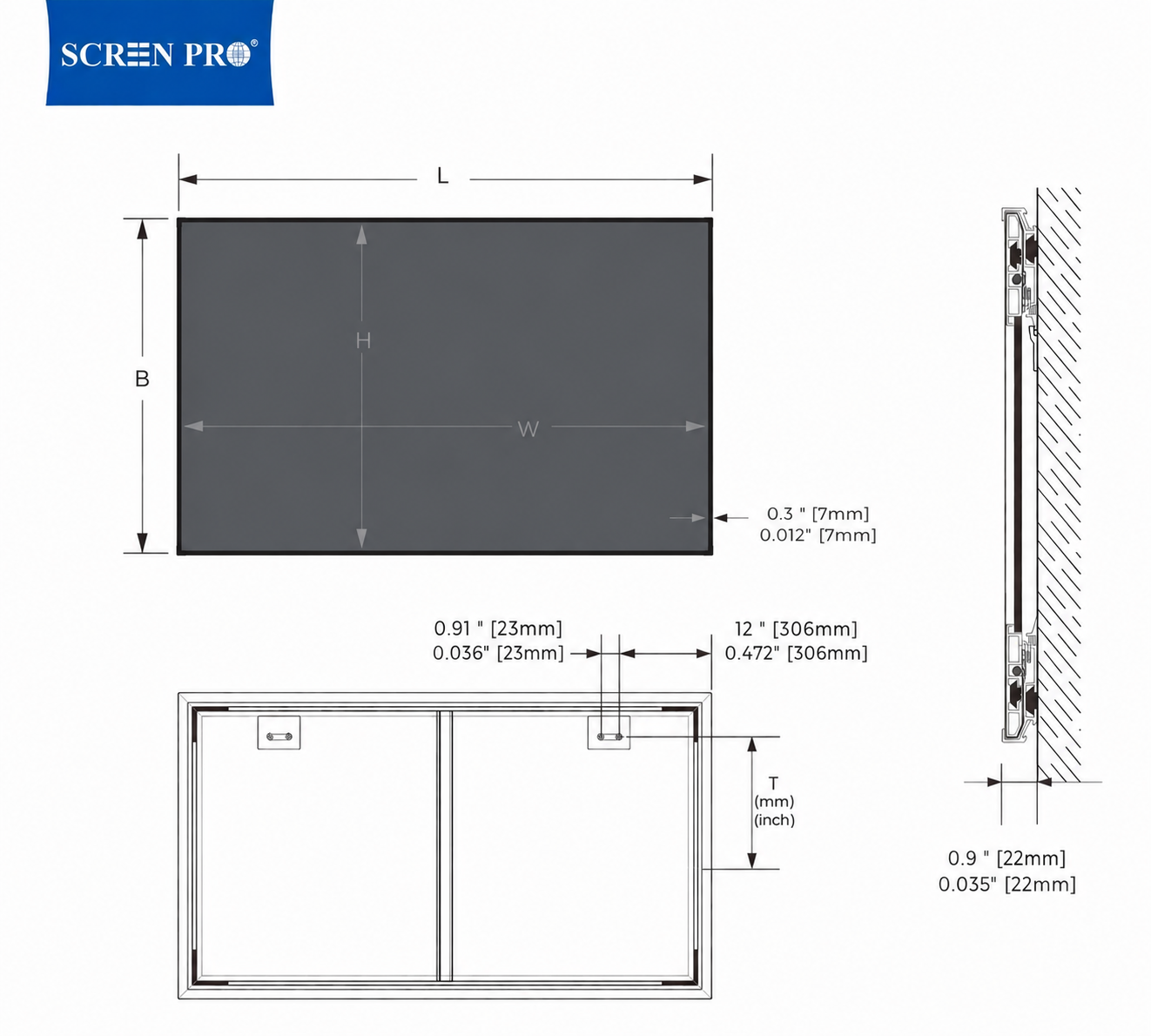

Dimension Diagram

Use the engineering labels together with the Quick Specs and Full Engineering Specifications below.

All dimensions are approximate and for engineering reference only.

Quick Size Reference

Core viewing size, overall frame dimensions, and weight for fast screen comparison.

Format	Diag. Size	Viewing Size	Overall Width	Overall Height	Weight
16:9	100"	2213 × 1245 mm	2229 mm	1260 mm	14.0 kg
16:9	120"	2656 × 1494 mm	2671 mm	1509 mm	16.4 kg
16:9	150"	3320 × 1867 mm	3335 mm	1883 mm	26.1 kg
16:9	200"	4427 × 2490 mm	4442 mm	2505 mm	35.5 kg
16:10	100"	2153 × 1346 mm	2169 mm	1361 mm	14.4 kg
16:10	120"	2584 × 1615 mm	2600 mm	1630 mm	17.2 kg
16:10	150"	3230 × 2019 mm	3246 mm	2034 mm	27.0 kg
16:10	200"	4307 × 2692 mm	4323 mm	2707 mm	36.7 kg
2.35:1	100"	2337 × 994 mm	2352 mm	1010 mm	13.6 kg
2.35:1	126"	2945 × 1253 mm	2960 mm	1268 mm	16.9 kg
2.35:1	150"	3505 × 1491 mm	3521 mm	1507 mm	24.4 kg
2.35:1	200"	4674 × 1989 mm	4690 mm	2004 mm	33.0 kg

Quick Planning Note:
This quick table is designed for fast screen size comparison. For package dimensions, split-frame shipping size, frame thickness value T, and complete engineering data, open the full specifications below.

Engineering & Installation

Need Full Engineering Specs?

View complete 16:9, 16:10, and 2.35:1 specification data, including viewing size, overall dimensions, T value, split-frame package dimensions, and approximate weight for integrators, dealers, and project quotation.

Full Engineering Specifications

Detailed project-level dimensions for SCREENPRO Fixed Frame Screen - Ultra Thin.

Format	Diag. Size	Viewing Size	Overall L	Overall B	T	Package Dimensions	Approx. Weight
16:9	100"	2213 × 1245 mm	2229 mm	1260 mm	540 mm	270 × 140 × 1385 mm	14.0 kg
16:9	106"	2346 × 1319 mm	2361 mm	1335 mm	577 mm	270 × 140 × 1459 mm	14.7 kg
16:9	110"	2434 × 1369 mm	2450 mm	1385 mm	602 mm	270 × 140 × 1509 mm	15.3 kg
16:9	120"	2656 × 1494 mm	2671 mm	1509 mm	665 mm	270 × 140 × 1635 mm	16.4 kg
16:9	135"	2988 × 1680 mm	3003 mm	1696 mm	745 mm	270 × 140 × 1825 mm	23.4 kg
16:9	150"	3320 × 1867 mm	3335 mm	1883 mm	838 mm	270 × 140 × 2010 mm	26.1 kg
16:9	160"	3541 × 1992 mm	3557 mm	2007 mm	932 mm	270 × 140 × 2135 mm	28.9 kg
16:9	180"	3984 × 2241 mm	3999 mm	2256 mm	1025 mm	270 × 140 × 2385 mm	31.7 kg
16:9	200"	4427 × 2490 mm	4442 mm	2505 mm	1150 mm	270 × 140 × 2630 mm	35.5 kg
16:9	220"	4869 × 2739 mm	4885 mm	2754 mm	1274 mm	270 × 140 × 2885 mm	39.5 kg
16:9	250"	5534 × 3112 mm	5549 mm	3128 mm	1460 mm	270 × 140 × 3260 mm	45.7 kg
16:9	300"	6640 × 3735 mm	6656 mm	3750 mm	1772 mm	270 × 140 × 3880 mm	56.5 kg
16:10	100"	2153 × 1346 mm	2169 mm	1361 mm	590 mm	270 × 140 × 1490 mm	14.4 kg
16:10	106"	2283 × 1426 mm	2298 mm	1442 mm	630 mm	270 × 140 × 1570 mm	15.2 kg
16:10	110"	2369 × 1480 mm	2384 mm	1496 mm	658 mm	270 × 140 × 1625 mm	15.8 kg
16:10	120"	2584 × 1615 mm	2600 mm	1630 mm	725 mm	270 × 140 × 1760 mm	17.2 kg
16:10	135"	2907 × 1817 mm	2923 mm	1832 mm	826 mm	270 × 140 × 1960 mm	24.2 kg
16:10	150"	3230 × 2019 mm	3246 mm	2034 mm	927 mm	270 × 140 × 2165 mm	27.0 kg
16:10	160"	3446 × 2153 mm	3461 mm	2169 mm	995 mm	270 × 140 × 2300 mm	28.9 kg
16:10	180"	3877 × 2423 mm	3892 mm	2438 mm	1130 mm	270 × 140 × 2570 mm	32.7 kg
16:10	200"	4307 × 2692 mm	4323 mm	2707 mm	1265 mm	270 × 140 × 2840 mm	36.7 kg
16:10	220"	4738 × 2961 mm	4754 mm	2977 mm	1398 mm	270 × 140 × 3105 mm	40.8 kg
16:10	250"	5384 × 3365 mm	5400 mm	3381 mm	1600 mm	270 × 140 × 3510 mm	47.2 kg
16:10	300"	6461 × 4038 mm	6477 mm	4054 mm	1937 mm	270 × 140 × 4185 mm	58.5 kg
2.35:1	100"	2337 × 994 mm	2352 mm	1010 mm	415 mm	270 × 140 × 1315 mm	13.6 kg
2.35:1	106"	2477 × 1054 mm	2493 mm	1069 mm	445 mm	270 × 140 × 1385 mm	14.3 kg
2.35:1	119"	2781 × 1183 mm	2796 mm	1199 mm	510 mm	270 × 140 × 1535 mm	16.0 kg
2.35:1	126"	2945 × 1253 mm	2960 mm	1268 mm	545 mm	270 × 140 × 1620 mm	16.9 kg
2.35:1	135"	3155 × 1342 mm	3170 mm	1358 mm	590 mm	270 × 140 × 1725 mm	22.5 kg
2.35:1	150"	3505 × 1491 mm	3521 mm	1507 mm	663 mm	270 × 140 × 1900 mm	24.4 kg
2.35:1	165"	3856 × 1641 mm	3872 mm	1656 mm	738 mm	270 × 140 × 2075 mm	26.9 kg
2.35:1	180"	4207 × 1790 mm	4222 mm	1805 mm	813 mm	270 × 140 × 2250 mm	29.5 kg
2.35:1	200"	4674 × 1989 mm	4690 mm	2004 mm	912 mm	270 × 140 × 2485 mm	33.0 kg
2.35:1	250"	5843 × 2486 mm	5858 mm	2501 mm	1160 mm	270 × 140 × 3065 mm	42.2 kg
2.35:1	300"	7011 × 2983 mm	7027 mm	2999 mm	1410 mm	270 × 140 × 3650 mm	52.0 kg
2.35:1	350"	8180 × 3481 mm	8196 mm	3496 mm	1658 mm	270 × 140 × 4240 mm	62.5 kg

Engineering Note:
D = diagonal size. WxH = viewing size. L / B = overall dimensions. T = frame reference dimension. W1 × H1 × L1 = split-frame package dimensions.
Final specifications should be confirmed according to selected fabric, frame type, project requirements, shipping method, and installation conditions.

Need a Custom Size or Project Recommendation?

SCREENPRO supports project-based screen size planning, fabric selection, and OEM / ODM customization for dealers, AV integrators, and home theater projects.

Contact SCREENPRO →

SCREENPRO 3C fabric

What is 3C？

The SCRENPRO 3C febric micre srectured urfece effectihey diues coherenl lae lisht. reurcing thimmerig or grainy pellerns and enhancing overall clarity. The esuls inricher colors, cleaner gradients, and more stable visuals, especially important when using triple-laser or ultra-short-throw laser projectors. The fobric helbs evenly disperse the laser light, reducing hotspots orlocalied overexposure caused by concentrated light. This is particularly evident in dark scenes where blacklevel oreclearer, colors are purer, and the overall image is more stable.

Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."

Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.

WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.

SCREENPRO Ecosystem

Compatible SCREENPRO Screen Series

Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural and professional projection environments.

RGB Laser Motorized Tension Fixed Frame Floor Rising Ceiling Recessed

Tab-Tensioned Screen

Model TJ

Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.

3C Fabric Home Theater

View Product →

In-Ceiling Screen

Model TI

Recessed screen solution for clean architectural integration in premium residential or commercial spaces.

Hidden Install Clean Design

View Product →

Motorized Screen

Model TW

Classic electric projection screen for flexible residential, education and commercial display applications.

Motorized Multi-Use

View Product →

Floor Rising Screen

Model TD

Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.

UST Ready Floor Rising

View Product →

7mm Frame Screen

Model FZ

Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.

Fixed Frame Ultra Slim

View Product →

Not sure which screen fits your projector?

Tell us your projector model, room environment and preferred installation style. SCREENPRO will help match the right screen structure and optical surface.

Project Inquiry Where to Buy

7mm Frame Acoustic Transparency Screen - FZ

Frame

Aluminum

Bezel Size

7mm(0.3

Color Options

Black

Available Sizes

100

LED Backlight Kit

Optional

Pre-Assembled

×

Installation

Wall Mount

Frequently Asked Questions

Everything you may want to know before choosing a SCREENPRO® projection screen.

No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.

Yes. You can purchase a screen material sample here: Material Sample.

No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer..

Yes. Wall-mounting brackets are included with the wall-mounted screen series..

Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination..

For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.

For a standard throw projector, a high-contrast grey screen can help improve black levels and perceived contrast.
For an ultra short-throw projector, a dedicated UST ALR screen is usually the better choice for maintaining contrast and reducing ambient light interference.

Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.

SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.

For project requirements, please contact us.

Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.

Please contact us for custom sizing.

SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.

We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.

For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
