【Recommended For Normal/Standard/Long Throw Projector Use】
When it comes to the outer edges of the screen, don’t settle for anything less than black velvet. The light-absorbing qualities of black velvet are necessary for an optimal viewing experience. The first-class aluminium frame ensures structural rigidity. Handcrafted black velvet frame provides the ultimate black image border, with the acoustically transparent features.

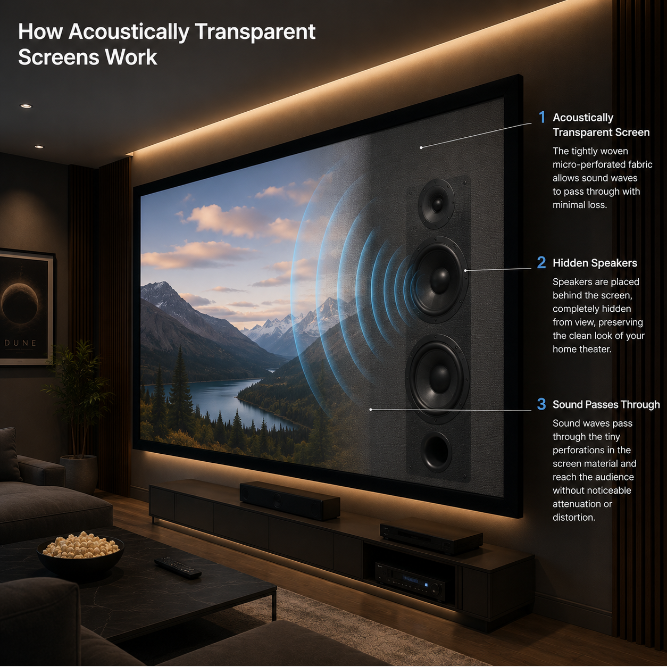

With perforations less than 0.01” in diameter (0.4mm) and with over 17210 perforations per square foot, physics simply dictates that frequencies above 1000Hz face nearly no attenuation. With the acoustically transparent features, the sound coming from your speakers can easily pass through, making for an acoustically transparent screen and the best image resolution you’ve ever seen, enjoy high-quality and immersive surround sound, every spot is the acoustic sweet spot.
The multi-chromogenic layer provides you with the best image quality. With the additive black backing that blocks light from the rear of the screen, easily enhance your home cinema.
The micro-perforations are so small that they are nearly unnoticeable to the naked eye and completely invisible when your projector is on. Audio coming from your speakers can easily pass through, making for an acoustically transparent screen and the best image resolution you’ve ever seen.
Standard acoustically transparent woven black backing fabric eliminates rear wall light reflections while maximizing contrast.
SCREENPRO Products’ pressing plate tensioning system makes the screen 100% wrinkle-free. No wrinkles mean that you get a clear, colourful, and uniform picture. And assembly isn't complicated. The step-by-step instructions in our manuals make the tension system easy to put together.
Due to the elastic shrinkage of the screen (the size will be slightly smaller), we not only provide a cross-head screwdriver, but also provide an additional kit tool to assist in installation, which can be more convenient and fast when you Embed the screen into the frame, and it can also save energy.
T8 vs TM are both acoustic transparent featured screen materials, except one with and the other without the ALR(anti-light) feature.

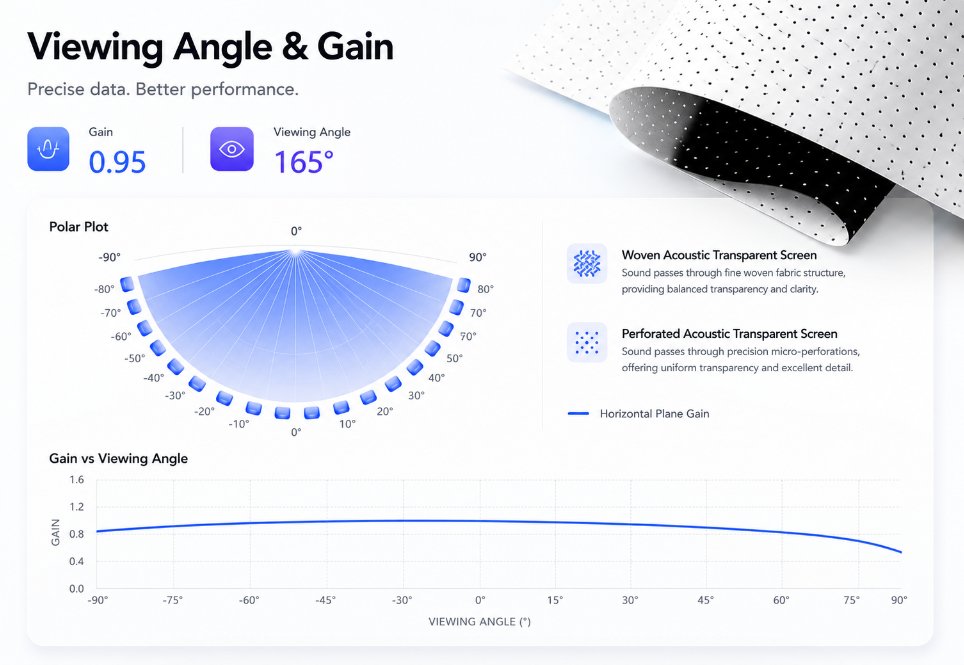

Compatible with daily 3D movies, 4K, HDTV, PPT, pictures, and games, actual 165° viewing angles. When paired with an HD projector, you can enjoy cinema-quality entertainment at home.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® Fixed Frame Screen - Flat is designed for home theater rooms, commercial AV spaces, and large-format projection installations. Compare viewing size, overall dimensions, frame width, package dimensions, and approximate weight before planning your project.
Confirm projection format, viewing size, wall space, package size, and frame width before final quotation.
Dimension Reference
Use the diagram together with the specification table to confirm viewing size, overall dimensions, frame width, package dimensions, and project planning requirements.
Core viewing size, overall dimensions, and weight for fast model comparison.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Weight |
|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2334 mm | 1365 mm | 13.1 kg |
| 16:9 | 106" | 2346 × 1319 mm | 2466 mm | 1440 mm | 13.7 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2555 mm | 1490 mm | 14.4 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2776 mm | 1614 mm | 15.3 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3166 mm | 1859 mm | 24.0 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3498 mm | 2046 mm | 26.0 kg |
| 16:9 | 160" | 3541 × 1992 mm | 3720 mm | 2170 mm | 27.7 kg |
| 16:9 | 180" | 3984 × 2241 mm | 4162 mm | 2419 mm | 30.5 kg |
| 16:9 | 200" | 4427 × 2490 mm | 4605 mm | 2668 mm | 33.3 kg |
| 16:9 | 220" | 4869 × 2739 mm | 5048 mm | 2917 mm | 36.4 kg |
| 16:9 | 250" | 5534 × 3112 mm | 5712 mm | 3291 mm | 41.5 kg |
| 16:9 | 300" | 6640 × 3735 mm | 6819 mm | 3913 mm | 49.8 kg |
| 16:10 | 100" | 2153 × 1346 mm | 2274 mm | 1466 mm | 13.7 kg |
| 16:10 | 106" | 2283 × 1426 mm | 2403 mm | 1547 mm | 14.4 kg |
| 16:10 | 110" | 2369 × 1480 mm | 2489 mm | 1601 mm | 14.9 kg |
| 16:10 | 120" | 2584 × 1615 mm | 2705 mm | 1735 mm | 16.0 kg |
| 16:10 | 133" | 2864 × 1790 mm | 2985 mm | 1910 mm | 17.7 kg |
| 16:10 | 135" | 2907 × 1817 mm | 3028 mm | 1937 mm | 18.0 kg |
| 16:10 | 135" | 2907 × 1817 mm | 3086 mm | 1995 mm | 22.6 kg |
| 16:10 | 150" | 3230 × 2019 mm | 3409 mm | 2197 mm | 24.6 kg |
| 16:10 | 160" | 3446 × 2153 mm | 3624 mm | 2332 mm | 25.7 kg |
| 16:10 | 180" | 3877 × 2423 mm | 4055 mm | 2601 mm | 28.1 kg |
| 16:10 | 200" | 4307 × 2692 mm | 4486 mm | 2870 mm | 30.4 kg |
| 16:10 | 220" | 4738 × 2961 mm | 4917 mm | 3140 mm | 32.4 kg |
| 16:10 | 250" | 5384 × 3365 mm | 5563 mm | 3544 mm | 35.2 kg |
| 16:10 | 300" | 6461 × 4038 mm | 6640 mm | 4217 mm | 42.3 kg |
| 2.35:1 | 100" | 2337 × 994 mm | 2457 mm | 1115 mm | 12.2 kg |
| 2.35:1 | 106" | 2477 × 1054 mm | 2598 mm | 1174 mm | 12.9 kg |
| 2.35:1 | 119" | 2781 × 1183 mm | 2901 mm | 1304 mm | 14.3 kg |
| 2.35:1 | 126" | 2945 × 1253 mm | 3123 mm | 1431 mm | 15.1 kg |
| 2.35:1 | 135" | 3155 × 1342 mm | 3333 mm | 1521 mm | 23.4 kg |
| 2.35:1 | 150" | 3505 × 1491 mm | 3684 mm | 1670 mm | 25.8 kg |
| 2.35:1 | 165" | 3856 × 1641 mm | 4035 mm | 1819 mm | 28.4 kg |
| 2.35:1 | 180" | 4207 × 1790 mm | 4385 mm | 1968 mm | 29.5 kg |
| 2.35:1 | 200" | 4674 × 1989 mm | 4853 mm | 2167 mm | 31.8 kg |
| 2.35:1 | 250" | 5843 × 2486 mm | 6021 mm | 2664 mm | 35.4 kg |
| 2.35:1 | 300" | 7011 × 2983 mm | 7190 mm | 3162 mm | 42.5 kg |
| 2.35:1 | 350" | 8180 × 3481 mm | 8359 mm | 3659 mm | 49.5 kg |
Engineering & Installation
View detailed specifications including frame width, overall dimensions, T value, package dimensions, and approximate weight.
Detailed project-level dimensions for SCREENPRO Fixed Frame Screen - Flat.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Frame | T | Package Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2334 mm | 1365 mm | 60 mm | 656 mm | 270 × 110 × 1440 mm | 13.1 kg |
| 16:9 | 106" | 2346 × 1319 mm | 2466 mm | 1440 mm | 60 mm | 693 mm | 270 × 110 × 1514 mm | 13.7 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2555 mm | 1490 mm | 60 mm | 718 mm | 270 × 110 × 1564 mm | 14.4 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2776 mm | 1614 mm | 60 mm | 780 mm | 270 × 110 × 1690 mm | 15.3 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3166 mm | 1859 mm | 90 mm | 902 mm | 270 × 130 × 1935 mm | 24.0 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3498 mm | 2046 mm | 90 mm | 996 mm | 270 × 130 × 2120 mm | 26.0 kg |
SCREENPRO supports fixed frame screen planning, custom size recommendations, project quotation, and OEM / ODM customization.
Explore compatible SCREENPRO screen materials for various projection environments, including matte white, acoustic transparent, ALR, anti-speckle, and rear-projection applications.
Matte white screen material for standard projection and natural color reproduction.
Micro-perforated acoustic transparent material for speaker-behind-screen setups.
Woven acoustic transparent fabric for natural sound transmission and reduced moiré effect.
Woven acoustic transparent anti-speckle material for RGB triple laser and hidden speaker setups.
High-contrast ALR material for long-throw projection and enhanced black levels.
ALR micro-perforated material for long-throw projection with acoustic transparency.
Anti-speckle grey projection fabric for RGB triple laser projectors with enhanced contrast.
Rear projection material for hidden projector installations and special display applications.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample .
No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.
Yes. Wall-mounting brackets are included with the wall-mounted screen series.
Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us .
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
Explore compatible screen systems, accessories, and installation solutions for your home theater or project setup.
