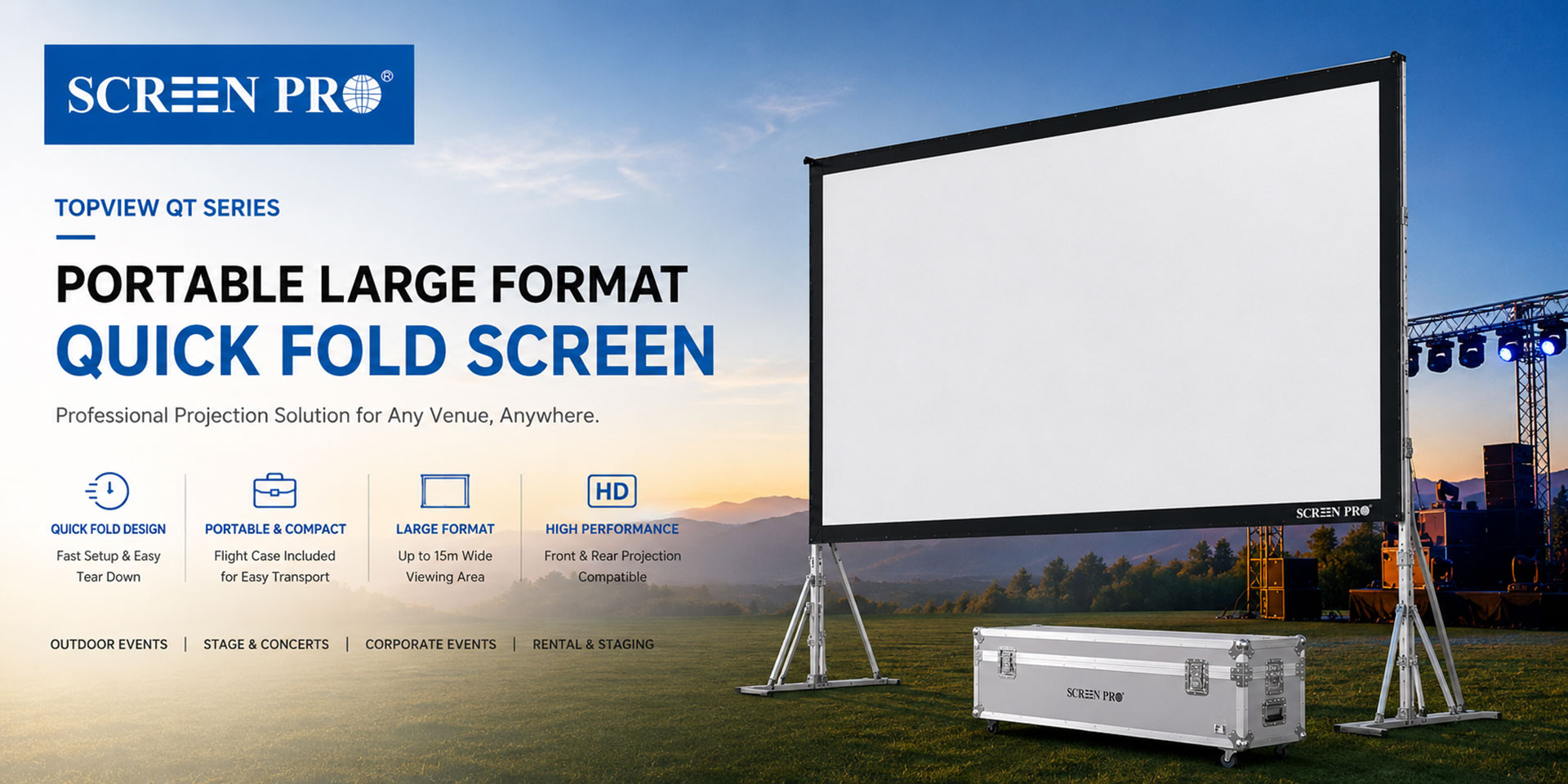

The SCREENPRO® Topview Series QT-15 Quick Fold Screen comes with a wheeled flight case for storage and transportation. It is designed for event teams, rental companies, AV installers and venue operators who need a portable projection screen that can move efficiently from one location to another.
The snap-on system provides a practical solution for rental and staging applications, making setup and tear-down easier for different skill levels. RF-welded binding and matte snap caps create a clean appearance, while the projection surface attaches securely to the frame for a smooth, seamless and accurately aligned viewing area.
High-precision extruded aluminum profiles and integrated snap joints form the structure of the SCREENPRO® portable quick fold projection screen. The foldable frame opens quickly, locks securely, and helps reduce the risk of missing parts during repeated setup, transport, and storage.
The reinforced locking mechanism and one-piece double-layer frame are designed for large-format applications. Whether used with front projection or rear projection fabric, the stable support leg structure helps the screen stand securely for outdoor events, stage productions, conferences, exhibitions and professional AV installations.
SCREENPRO Size Chart Pro Ultra
SCREENPRO large portable projection screens are designed for large venues, events, rental staging, education, and commercial AV projects. Compare format, viewing area, height range, support legs, lifting range, and approximate weight before planning your installation.
Confirm ceiling height, floor space, viewing distance, lifting range, support legs, and transportation requirements before selecting the final screen size.
Use the reference image together with the Quick Size Reference and Full Engineering Specifications below.
Core viewing area, height range, lifting range, support leg information, and approximate weight for fast comparison.
| Format | Diag. Size | Viewing Area | Height Range | Support Leg Length | Black Border | Lifting Range | Standard Support Legs | Weight | Note |
|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 240" | 5310 × 2990 mm | 4400~5400 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 138 kg | — |
| 16:9 | 250" | 5530 × 3110 mm | 4520~5520 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 140 kg | — |
| 16:9 | 300" | 6640 × 3730 mm | 5260~6260 mm | 2660 mm | 150 mm | 1230~2230 mm | SAT | 158 kg | — |
| 4:3 | 240" | 4880 × 3660 mm | 5070~6070 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 140 kg | — |
| 4:3 | 250" | 5080 × 3810 mm | 5220~6220 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 145.5 kg | — |
| 4:3 | 300" | 6100 × 4570 mm | 6100~7100 mm | 2660 mm | 150 mm | 1230~2230 mm | SAT | 161 kg | — |
Engineering & Installation
View complete large portable screen specification data, including viewing area, height range, support leg length, black border, lifting range, support legs, and approximate weight.
Detailed project-level dimensions for SCREENPRO large portable projection screens.
| Format | Diag. Size | Viewing Area | Height Range | Support Leg Length | Black Border | Lifting Range | Standard Support Legs | Weight | Note |
|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 240" | 5310 × 2990 mm | 4400~5400 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 138 kg | — |
| 16:9 | 250" | 5530 × 3110 mm | 4520~5520 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 140 kg | — |
| 16:9 | 300" | 6640 × 3730 mm | 5260~6260 mm | 2660 mm | 150 mm | 1230~2230 mm | SAT | 158 kg | — |
| 4:3 | 240" | 4880 × 3660 mm | 5070~6070 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 140 kg | — |
| 4:3 | 250" | 5080 × 3810 mm | 5220~6220 mm | 2660 mm | 150 mm | 1110~2110 mm | SAT | 145.5 kg | — |
| 4:3 | 300" | 6100 × 4570 mm | 6100~7100 mm | 2660 mm | 150 mm | 1230~2230 mm | SAT | 161 kg | — |
SCREENPRO supports project-based screen size planning, large venue projection consultation, and OEM / ODM customization for dealers, AV integrators, and commercial projects.
Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.
Matte white projection fabric for general-purpose front projection applications.
Micro-perforated acoustic transparent fabric for behind-screen speaker setups.
Long-throw ALR material designed to improve contrast under ambient light.
High ALR micro-perforated fabric for large-format professional projection.
Rear projection fabric for professional installations requiring hidden projector placement.
Explore SCREENPRO screen solutions for live events, conference halls, rental staging, education spaces and portable projection setups.
Easy-fold portable screen system with height-adjustable legs for mobile events and professional staging setups.
View Product →Portable fast-fold outdoor screen system designed for event projection, temporary installs, and cinema-anywhere setups.
View Product →Large-venue quick-fold projection screen for professional stage events, conferences, and touring AV applications.
View Product →Professional portable frame screen for stage, exhibition, training, and commercial presentation environments.
View Product →Tell us your venue size, projection distance, screen ratio, and installation method. SCREENPRO can help match the right screen structure for your project.
Universal ceiling mounting solution for projector positioning in meeting rooms, classrooms, and event spaces.
Compact 1/4-inch screw projector mount bracket compatible with portable and mini projector models.
Professional stage drapery kit for masking, event presentation, and cleaner projection environments.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample .
No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.
Yes. Wall-mounting brackets are included with the wall-mounted screen series.
Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us .
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
