Can I purchase a small sample of the material?

Yes. You can purchase a screen material sample from SCREENPRO.

My viewing is mostly at night with only some faint ambient light. During the day, we mainly use the OLED TV behind the drop-down screen. Which screen would be most suitable for me?

For primarily nighttime viewing, SCREENPRO generally recommends a high-contrast grey screen or an ALR screen depending on projector type and room lighting. For standard throw projectors, a high-contrast grey screen can improve black levels and perceived contrast. For ultra short-throw projectors, a dedicated UST ALR screen is usually recommended.

What is the voltage for the SCREENPRO motorized series? Can it be used abroad?

SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. The correct voltage will be supplied according to the shipping address.

100"-150" Motorized ALR screen specially for short throw projector

Features Specifications Screen Material Gallery Compatible FAQs

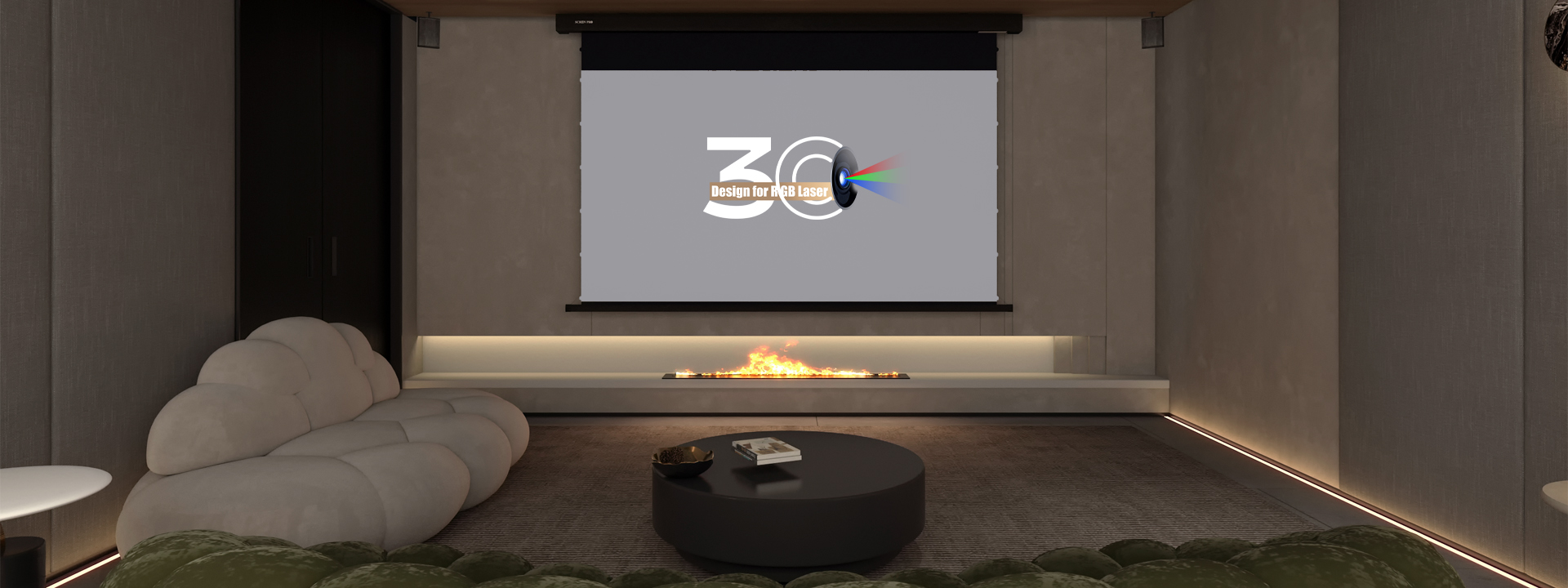

SCREENPRO 150 inches motorized screen

SCREENPRO ALR screen features description

Stunning Visuals

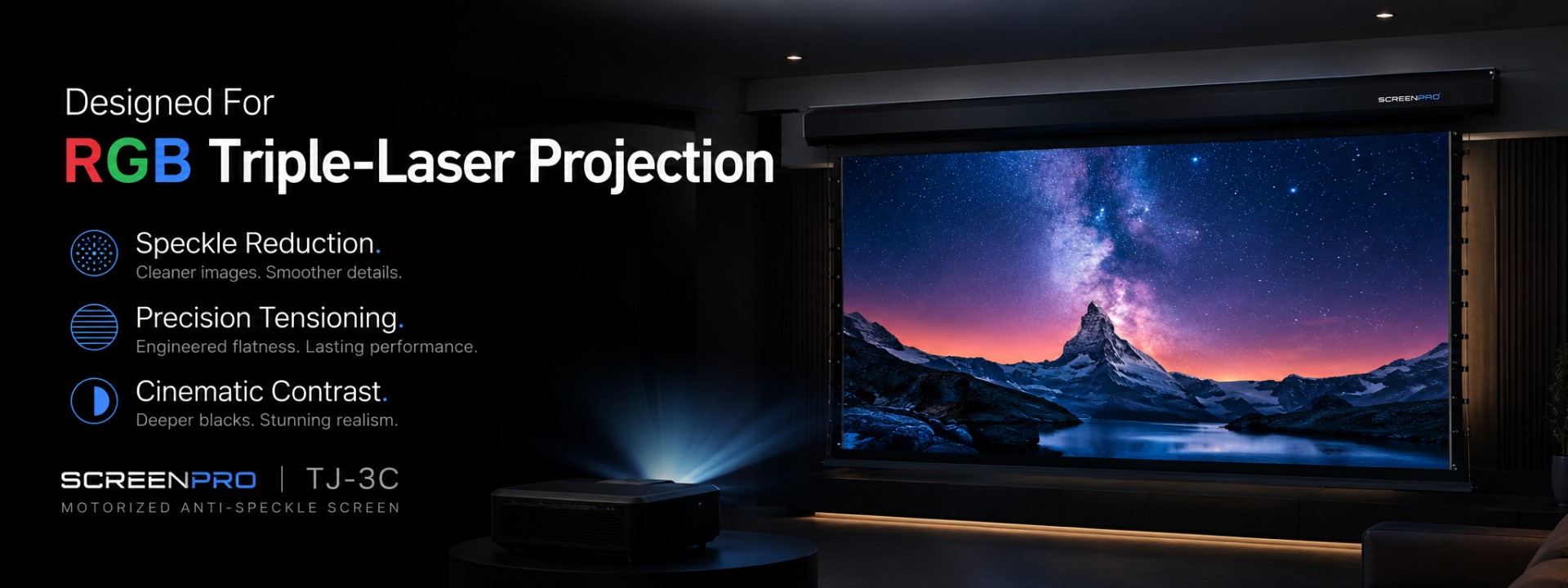

Engineered to perform flawlessly with Standard Throw installations and next-generation RGB Triple Laser systems. At SCREEN PRO, we offer an optical revolution that makes all the difference to your viewing experience, a technical improvement that results in a brighter, sharper image, and the ultimate viewing experience. SCREEN PRO ALR screen offers a beautifully designed frame screen, with a frame that only measures 7mm in width. It's designed to maximize your viewing experience while minimizing installation space.

〉WATCH THE VIDEO?

An UST projector placed under the SCREENPRO projector screen

Captivating 4K UHD Visuals

No more washed-out images, SCREEN PRO ALR screen designed for Long/Normal throw projectors, brands such as: ViewSonic V57, Valerion Pro2, VisionMaster Pro2, XGIMI Horizon, JMGO N1s, BenQ V5010i, etc. Enables compatibility with 8K resolution projectors.

Why Choose 3C

Unlike normal standard white fabric, the ALR screen carries vivid high-definition images regardless of ambient light; the optical material technology allows the display of true image brightness, color saturation, and contrast for superior picture performance.

LEARN MORE

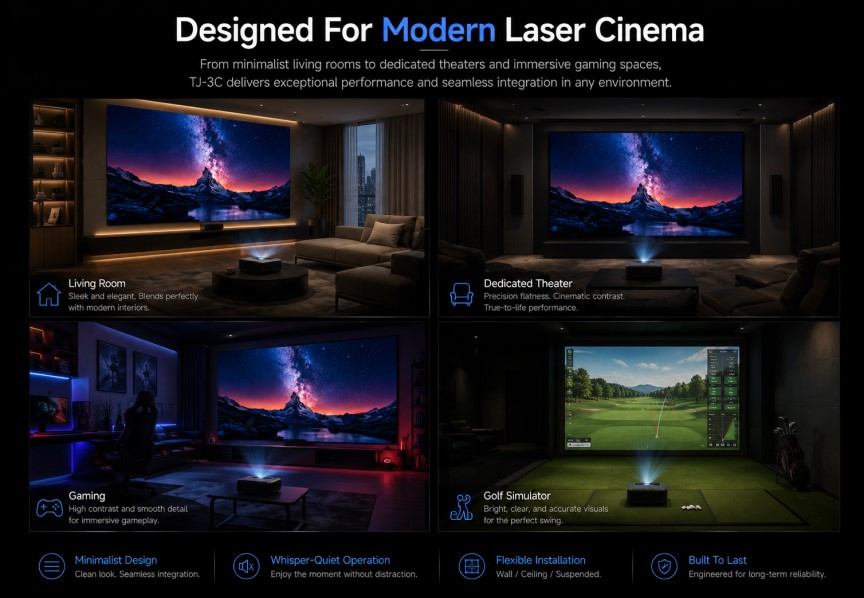

A wide-angle showing SCREENPRO projector screen

The World’s Large Laser Projector Screen

Introducing the SCREENPRO^® JAMPO, an ultra-short-throw projector TV screen. With a nearly perfect viewing angle of 178 degrees and a big size range, the SCREENPRO T-Prism ALR screen is capable of being viewed from extreme off-axis positions even during daytime with ambient light. Customers can enjoy dynamic, colorful media without losing valuable wall space with its rollable design.

〉WATCH THE INSTALLATION VIDEO?

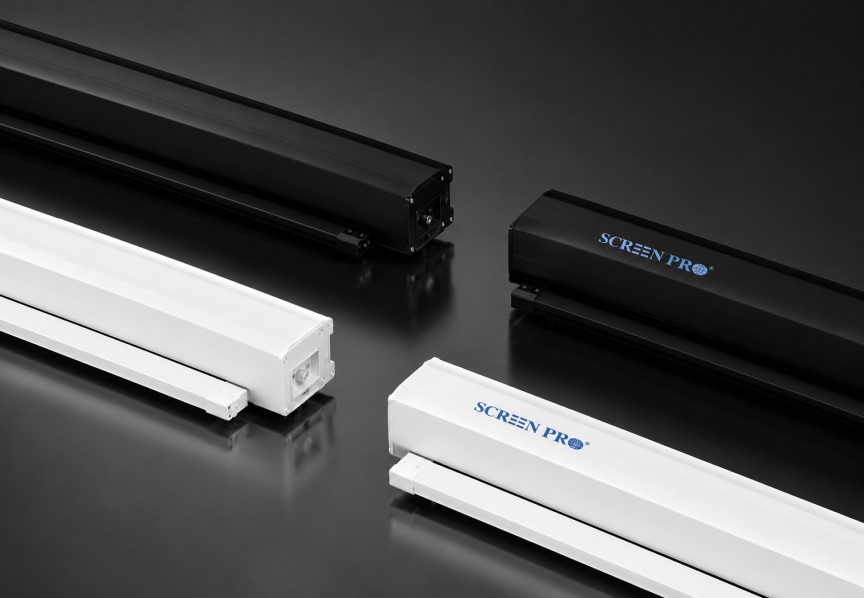

SCREENPRO tab motorized projector screen in 2 colors

Simple and Elegant

Seamless casing designed by Chinese and European engineer co-team. Glorious white/black paint process, fully enclosed lower bar (*L series), which has the function of dust prevention. The rear/top ceiling and wall sliding rail mounting system provides flexibility in installation options.

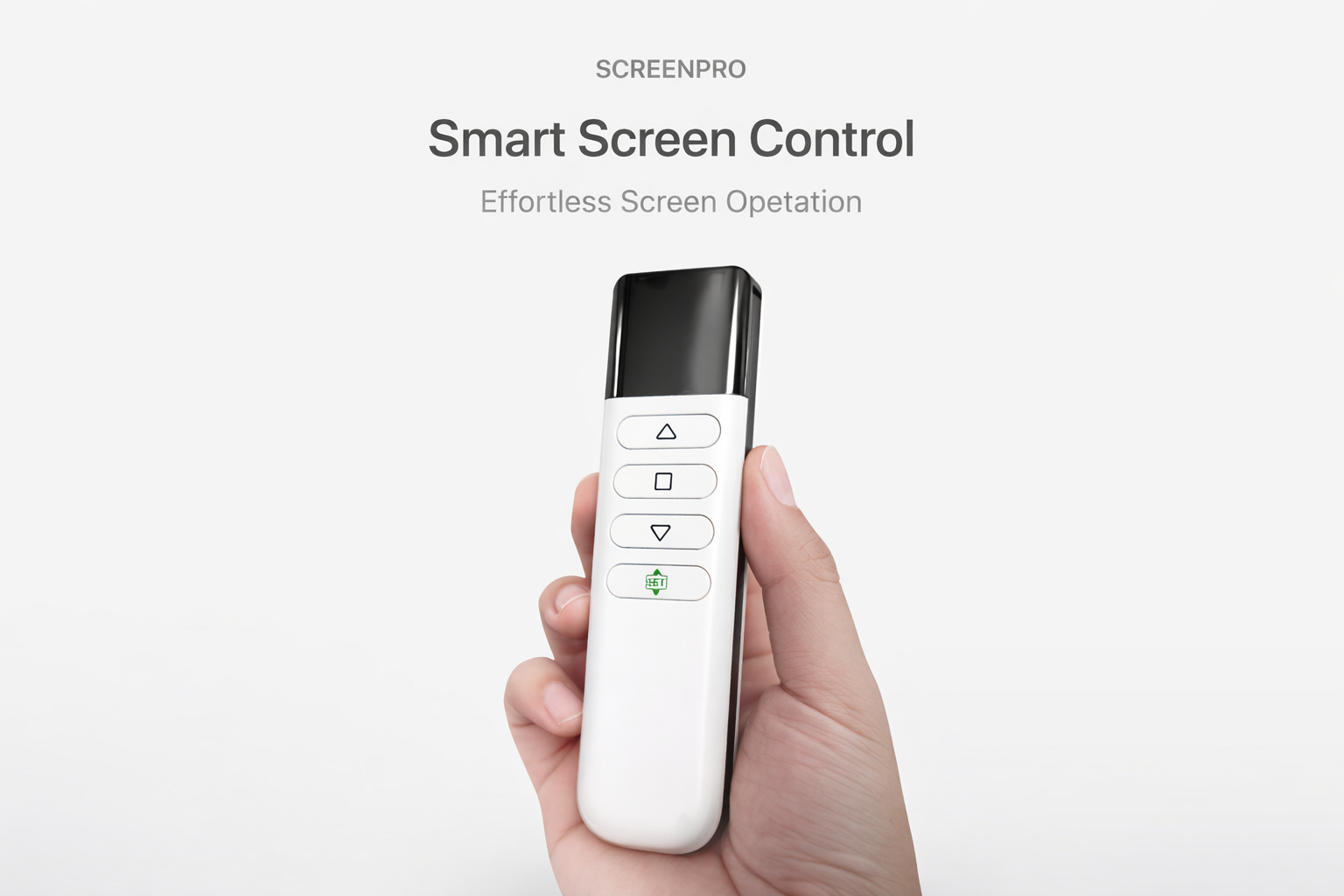

SCREENPRO projector screen rechargeable remote

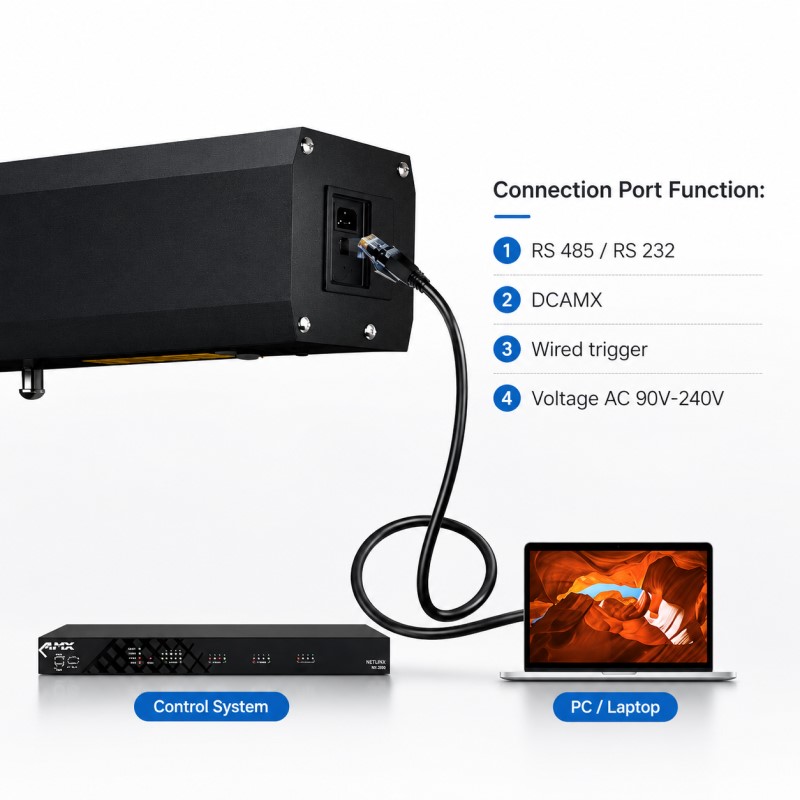

Smart Homes Integrated System Compatible

SCREENPRO^® R&D R8 control system, with wireless RF (Radio Frequency) remote control, built-in low-power, high-performance, long-distance 868MHz wireless data transmission module, and easy to operate. (Crestron control system compatible)

SCREENPRO projector screen tensions adjustment

Flatness

If the image detail is important, a perfectly flat projection area is vital. Screen flatness affects the resolution in your projection. The tab-tensioning system will keep the projection surface under constant tension for a perfectly flat viewing area. A flat projection surface will get the most out of your projector, making sure no pixels get lost or deformed.

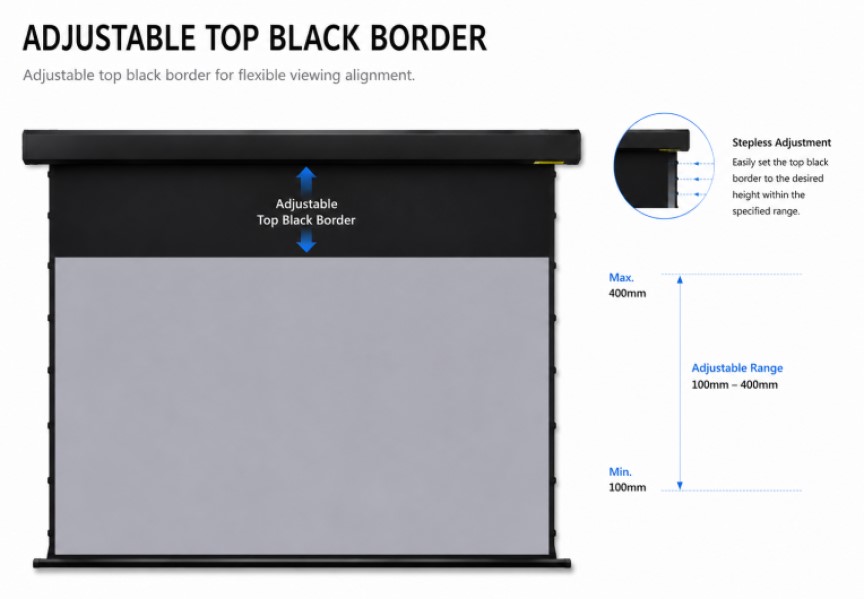

Accurate

Perhaps your furniture or the ceiling height has limited the overall height of your screen. SCREENPRO^® projection screen allows you to adjust the black border setting after leaving the factory.

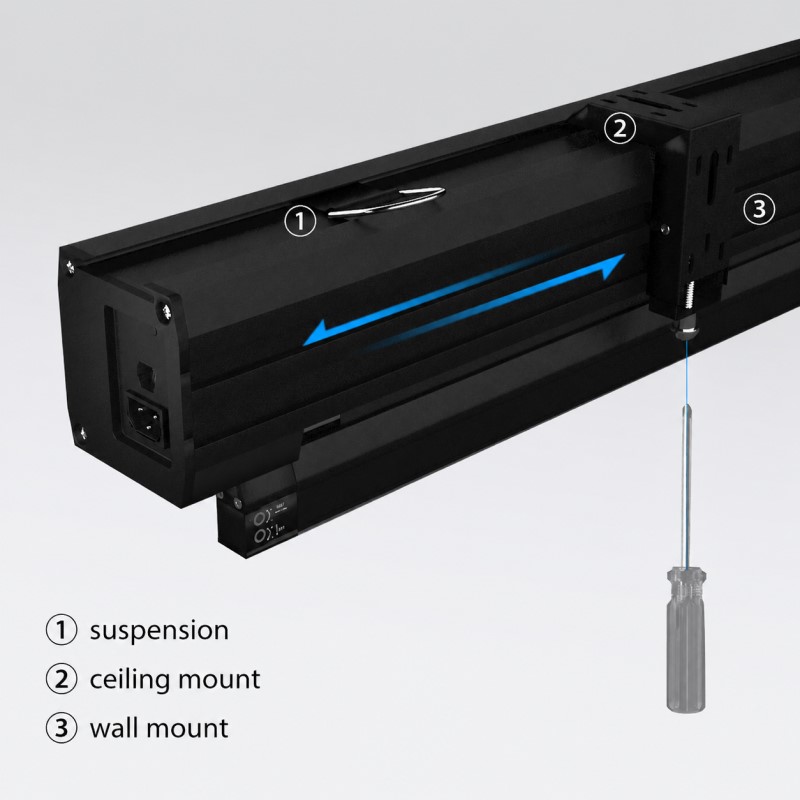

Installation

SCREENPRO AJ series supports 3 installation methods to meet different needs(suspension | on the ceiling | on the wall)

Projector triggered motorized screen rolling down

Say Goodbye To the Remote Control

Sync your projector(sync-trigger), and make your home smart the way you like. A small universal device that can synchronize your projector on and off along with the screen surface going down and up. No need to consider with or without the trigger port.

*(add-on option)Synchronizer only works for the SCREENPRO^® motorized screen series

〈 WATCH THE INSTALLATION VIDEO?

SCREENPRO ALR screen features description

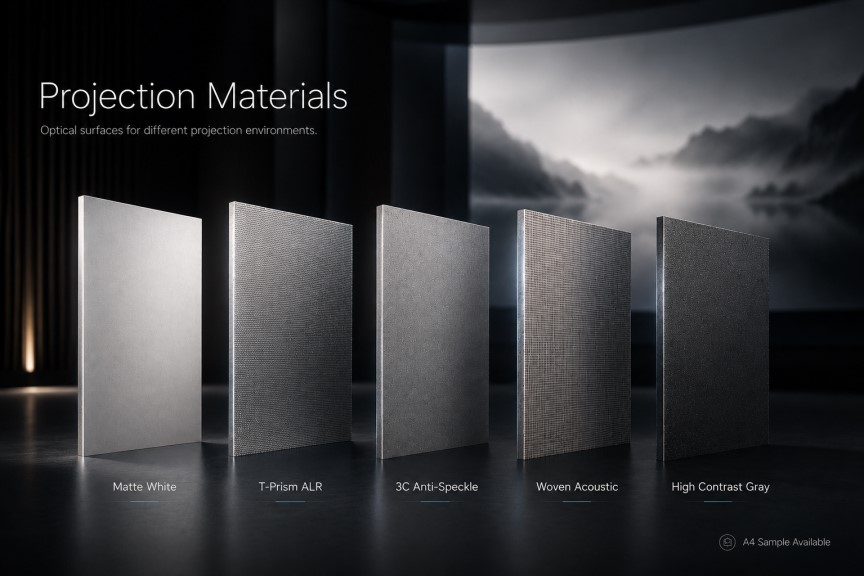

Are you looking for a screen material sample(A4 size) to test on?

At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.

SHOP NOW

SCREENPRO projector screen material sample

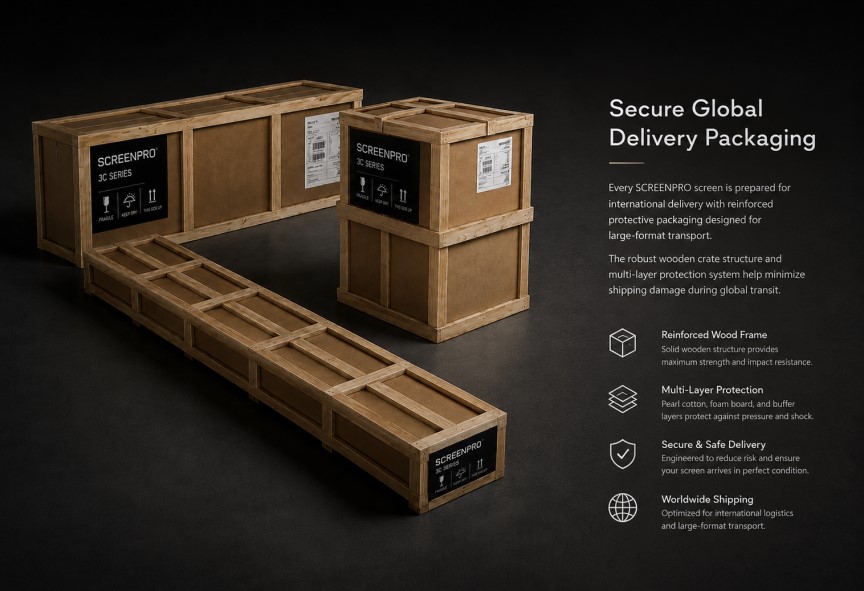

We Care, So You Don't Have To

We send packages overseas, wrapping your screen to avoid it being damaged securely. The inner layer of the carton package is pearl cotton and a foam board buffer layer. A customized solid wood outer frame ensures the product is delivered to your home in good condition. You can chill and relax waiting for it to appear at your door.

SCREENPRO Size Chart Pro Ultra

Select the Right TJ-3C Motorized Screen Size

The SCREENPRO® TJ-3C motorized projection screen is designed for RGB triple-laser projectors and 3C anti-speckle performance. Compare viewing size, black border, overall dimensions, package dimensions, ceiling installation data, and project-level specifications before planning your home cinema or AV installation.

84" - 100" Compact motorized screen setup for apartments, media rooms, and smaller home theater spaces.

106" - 120" Balanced size range for RGB triple-laser projection and premium living room cinema.

135" - 150" Large immersive viewing for dedicated theater rooms, AV projects, and custom installations.

Planning a Triple-Laser Projection Setup?

Confirm screen size, projector throw distance, viewing distance, ceiling space, package dimensions, and installation clearance before final project quotation.

Project Inquiry →

Dimension Diagram

Screen & Cabinet Dimensions

Use the diagram together with the specification table to confirm screen body size, installation clearance, ceiling slot planning, and package reference dimensions.

SCREENPRO TJ-3C motorized projection screen dimension diagram

Quick Size Reference

Core viewing size, overall dimensions, and weight for fast TJ-3C model comparison.

Format	Diag. Size	Viewing Size	Overall Length	Overall Height	Weight
16:9	84"	1859 × 1046 mm	2182 mm	1617 mm	19 kg
16:9	92"	2037 × 1146 mm	2360 mm	1717 mm	20.7 kg
16:9	100"	2214 × 1245 mm	2537 mm	1816 mm	22.3 kg
16:9	120"	2656 × 1494 mm	2959 mm	2065 mm	26.1 kg
16:9	150"	3320 × 1868 mm	3672 mm	2498 mm	46.2 kg
16:10	100"	2154 × 1346 mm	2577 mm	1917 mm	22.0 kg
16:10	120"	2585 × 1615 mm	3008 mm	2186 mm	26.2 kg
16:10	140"	3015 × 1885 mm	3438 mm	2456 mm	30.0 kg

Quick Planning Note:
This table is designed for quick room and screen size comparison. For black border, ceiling cut out size, standard package, wooden crate package, ceiling slot dimension, and engineering notes, open the full engineering specifications below.

Engineering & Installation

Need Full Engineering Specs?

View detailed TJ-3C project specifications, including black border, screen overall size, package dimensions, wooden crate packaging, ceiling cut out size, ceiling slot dimension, section size, and approximate weight.

Full Engineering Specifications

Detailed project-level dimensions for SCREENPRO TJ-3C Motorized Screen for RGB Triple Laser.

Format	Diag. Size	Viewing Size	Top	Bottom	L/R	Overall Length	Overall Height	Package Dimensions	Wooden Crate Packaging	Ceiling Slot	Ceiling Cut Out	Note	Weight
16:9	84"	1859 × 1046 mm	400 mm	50 mm	60 mm	2182 mm	1617 mm	230 × 185 × 2232 mm	250 × 335 × 2282 mm	2282 mm	150 × 130 mm	Jampo 96 × 88 mm	19 kg
16:9	92"	2037 × 1146 mm	400 mm	50 mm	60 mm	2360 mm	1717 mm	230 × 185 × 2410 mm	250 × 335 × 2460 mm	2460 mm	150 × 130 mm	Jampo 96 × 88 mm	20.7 kg
16:9	100"	2214 × 1245 mm	400 mm	50 mm	60 mm	2537 mm	1816 mm	230 × 185 × 2587 mm	250 × 335 × 2637 mm	2637 mm	150 × 130 mm	Jampo 96 × 88 mm	22.3 kg
16:9	106"	2346 × 1320 mm	400 mm	50 mm	60 mm	2669 mm	1891 mm	230 × 185 × 2719 mm	250 × 335 × 2769 mm	2769 mm	150 × 130 mm	Jampo 96 × 88 mm	23.4 kg
16:9	110"	2435 × 1370 mm	400 mm	50 mm	60 mm	2758 mm	1941 mm	230 × 185 × 2808 mm	250 × 335 × 2858 mm	2858 mm	150 × 130 mm	Jampo 96 × 88 mm	24.2 kg
16:9	120"	2656 × 1494 mm	400 mm	50 mm	60 mm	2959 mm	2065 mm	230 × 185 × 2970 mm	250 × 335 × 3020 mm	3059 mm	150 × 130 mm	Jampo 96 × 88 mm	26.1 kg
16:9	135"	2988 × 1681 mm	400 mm	50 mm	60 mm	3311 mm	2252 mm	230 × 185 × 3361 mm	250 × 335 × 3411 mm	3411 mm	150 × 130 mm	Jampo 96 × 88 mm	29.2 kg
16:9	150"	3320 × 1868 mm	400 mm	50 mm	60 mm	3672 mm	2498 mm	250 × 250 × 3772 mm	270 × 400 × 3822 mm	3772 mm	195 × 195 mm	Jampo L 150 × 150 mm	46.2 kg
16:10	92"	1982 × 1239 mm	400 mm	50 mm	60 mm	2405 mm	1810 mm	230 × 185 × 2455 mm	250 × 335 × 2505 mm	2505 mm	150 × 130 mm	Jampo 96 × 88 mm	20.7 kg
16:10	100"	2154 × 1346 mm	400 mm	50 mm	60 mm	2577 mm	1917 mm	230 × 185 × 2627 mm	250 × 335 × 2677 mm	2677 mm	150 × 130 mm	Jampo 96 × 88 mm	22.0 kg
16:10	106"	2283 × 1427 mm	400 mm	50 mm	60 mm	2706 mm	1998 mm	230 × 185 × 2756 mm	250 × 335 × 2806 mm	2806 mm	150 × 130 mm	Jampo 96 × 88 mm	23.4 kg
16:10	110"	2369 × 1481 mm	400 mm	50 mm	60 mm	2792 mm	2052 mm	230 × 185 × 2842 mm	250 × 335 × 2892 mm	2892 mm	150 × 130 mm	Jampo 96 × 88 mm	24.2 kg
16:10	120"	2585 × 1615 mm	400 mm	50 mm	60 mm	3008 mm	2186 mm	230 × 185 × 3058 mm	250 × 335 × 3108 mm	3108 mm	150 × 130 mm	Jampo 96 × 88 mm	26.2 kg
16:10	135"	2908 × 1817 mm	400 mm	50 mm	60 mm	3331 mm	2388 mm	230 × 185 × 3381 mm	250 × 335 × 3431 mm	3431 mm	150 × 130 mm	Jampo 96 × 88 mm	29.3 kg
16:10	140"	3015 × 1885 mm	400 mm	50 mm	60 mm	3438 mm	2456 mm	230 × 230 × 3488 mm	250 × 335 × 3538 mm	3538 mm	150 × 130 mm	Jampo L 150 × 150 mm	30.0 kg

Engineering Note:
D = diagonal size. W × H = viewing size. Top / Bottom / L/R = black border. Overall Length / Height = installed screen reference size. Package Dimensions and Wooden Crate Packaging are provided for logistics planning. Ceiling cut out and slot dimensions should be confirmed according to final project installation conditions.

Need a Custom Size or Project Recommendation?

SCREENPRO supports RGB triple-laser screen planning, 3C anti-speckle material selection, project quotation, ceiling installation coordination, and OEM / ODM customization for dealers, AV integrators, and home theater projects.

Contact SCREENPRO →

SCREENPRO Ecosystem

Compatible SCREENPRO Screen Series

Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural and professional projection environments.

RGB Laser Motorized Tension Fixed Frame Floor Rising Ceiling Recessed

Tab-Tensioned Screen

Model TJ

Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.

3C Fabric Home Theater

View Product →

In-Ceiling Screen

Model TI

Recessed screen solution for clean architectural integration in premium residential or commercial spaces.

Hidden Install Clean Design

View Product →

Motorized Screen

Model TW

Classic electric projection screen for flexible residential, education and commercial display applications.

Motorized Multi-Use

View Product →

Floor Rising Screen

Model TD

Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.

UST Ready Floor Rising

View Product →

7mm Frame Screen

Model FZ

Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.

Fixed Frame Ultra Slim

View Product →

Not sure which screen fits your projector?

Tell us your projector model, room environment and preferred installation style. SCREENPRO will help match the right screen structure and optical surface.

Project Inquiry Where to Buy

7mm Frame Acoustic Transparency Screen - FZ

Frame

Aluminum

Bezel Size

7mm(0.3

Color Options

Black

Available Sizes

100

LED Backlight Kit

Optional

Pre-Assembled

Installation

Wall Mount

Frequently Asked Questions

Everything you may want to know before choosing a SCREENPRO® projection screen.

No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.

Yes. You can purchase a screen material sample here: Material Sample.

For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.

For a standard throw projector, a high-contrast grey screen can help improve black levels and perceived contrast.
For an ultra short-throw projector, a dedicated UST ALR screen is usually the better choice for maintaining contrast and reducing ambient light interference.

Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.

SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.

For project requirements, please contact us.

Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.

Please contact us for custom sizing.

SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.

We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.

For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
