Rear Projection Ready
Optional rear-projection fabric expands the range of possible usage scenarios for backyard cinema, event projection, school presentations, and portable big-screen entertainment.

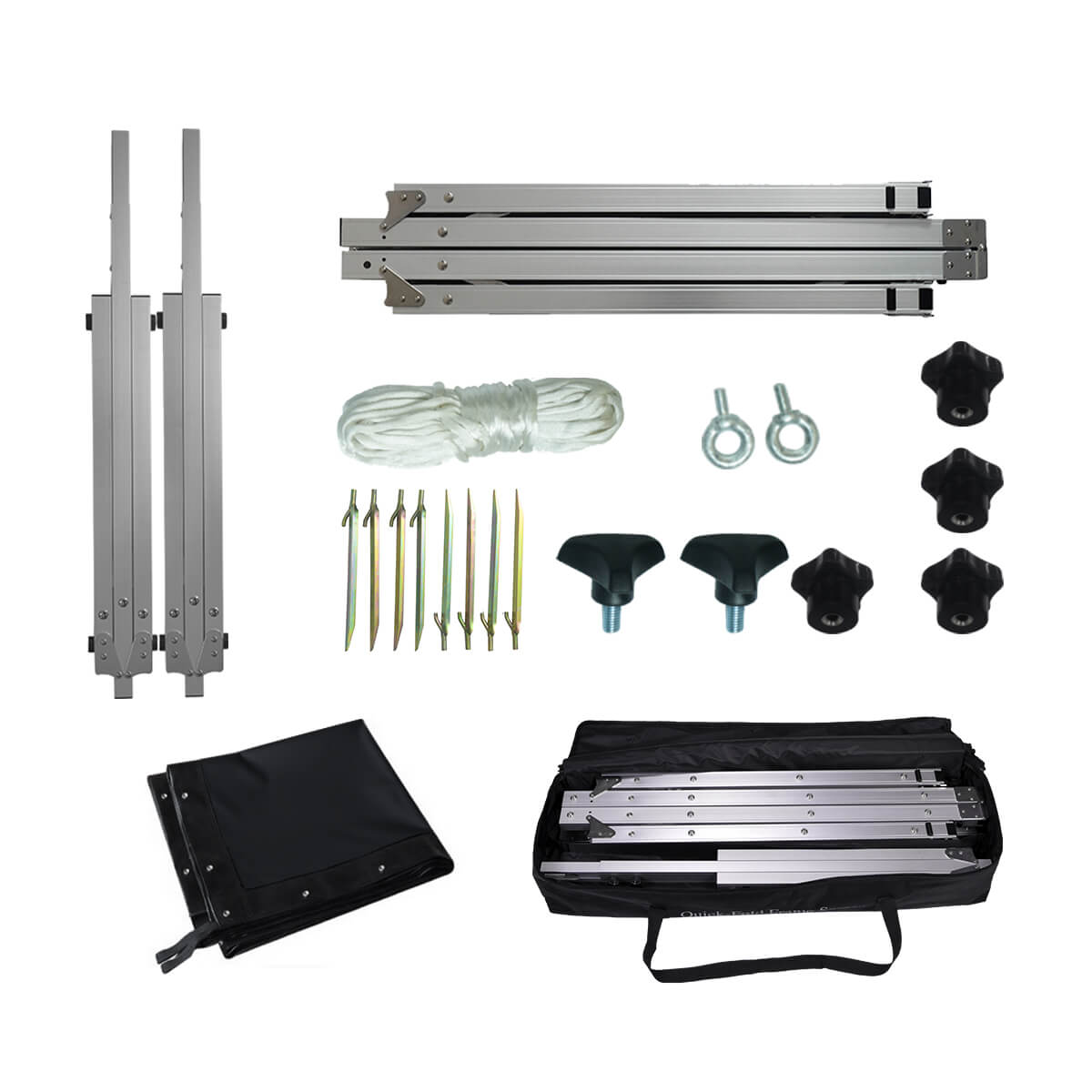

【lightweight nylon waterproof portable storage bag with a zipper】
Optional rear-projection fabric expands the range of possible usage scenarios for backyard cinema, event projection, school presentations, and portable big-screen entertainment.
From backyard movie nights to indoor presentations, QB adapts easily to different spaces and audiences as a portable outdoor movie screen and event projection solution.
Packs down into a compact carry bag for easy transport between events, backyards, venues, schools, and community spaces.

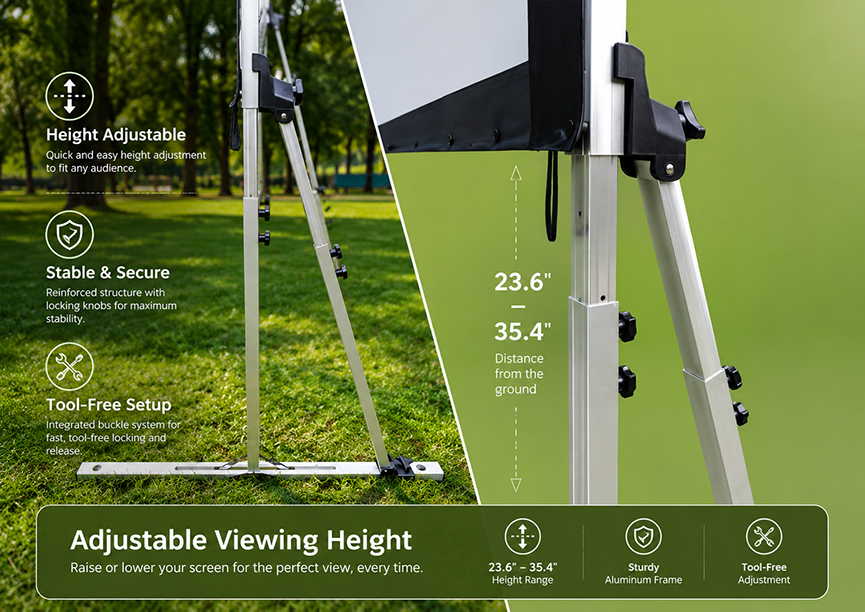

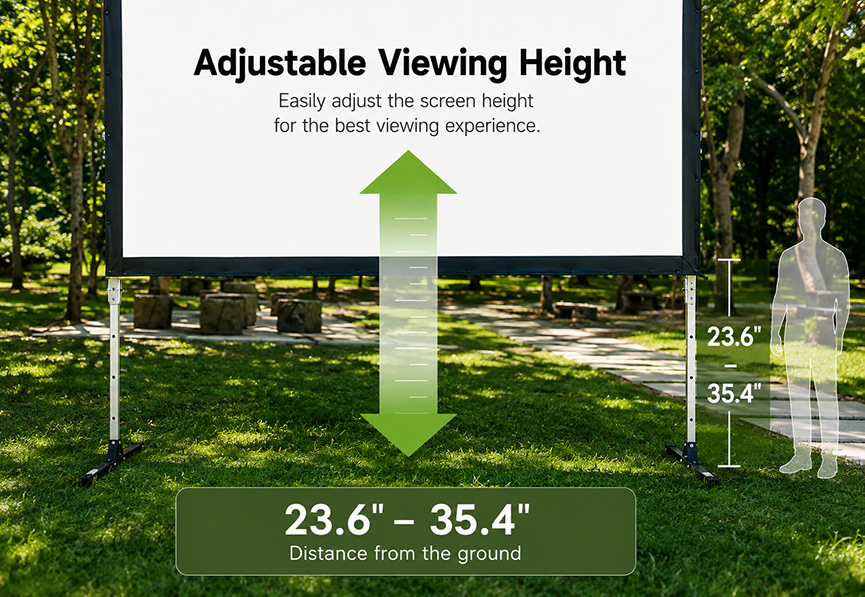

Raise the screen to 35.4" for clearer viewing, even in large outdoor gatherings, backyard movie nights, school events, and portable cinema setups.

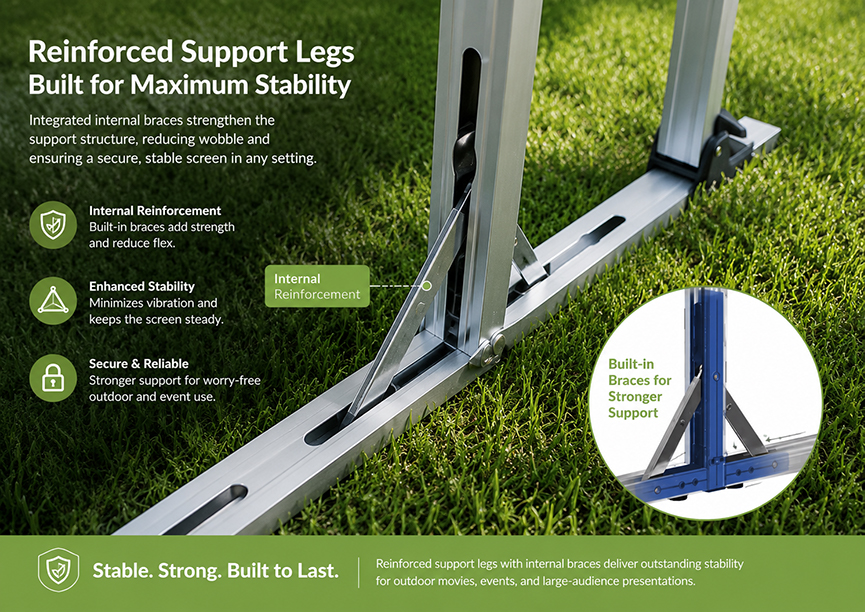

Optional adjustable braces enhance overall system stability while requiring minimal setup effort. Each support leg features an integrated buckle system, enabling fast, tool-free locking and release at the press of a button.
With an inner leg width of 110 mm and a double-layer enclosed structure, the legs are made from nylon reinforced with 25% glass fiber. Built for stable large-screen viewing, indoors or outdoors. Optional rear projection is supported.
The optional SCREENPRO velvet skirt mask conceals distractions and creates a cleaner, more polished look—perfect for indoor lectures, garden events, presentations, and portable cinema setups.

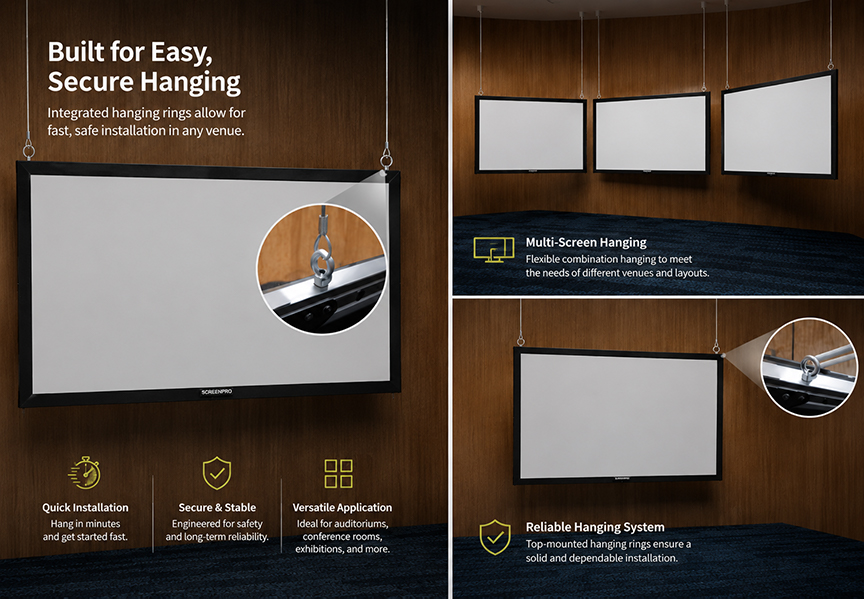

Unlock multiple installation options—the screen can be safely suspended from a stage batten using its reinforced frame.
Portable Event Cinema In Action
Watch how the SCREENPRO portable quick-fold screen transforms backyards, events, schools, and outdoor spaces into immersive big-screen experiences.
At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical capabilities for your project, please refer to the chart below.

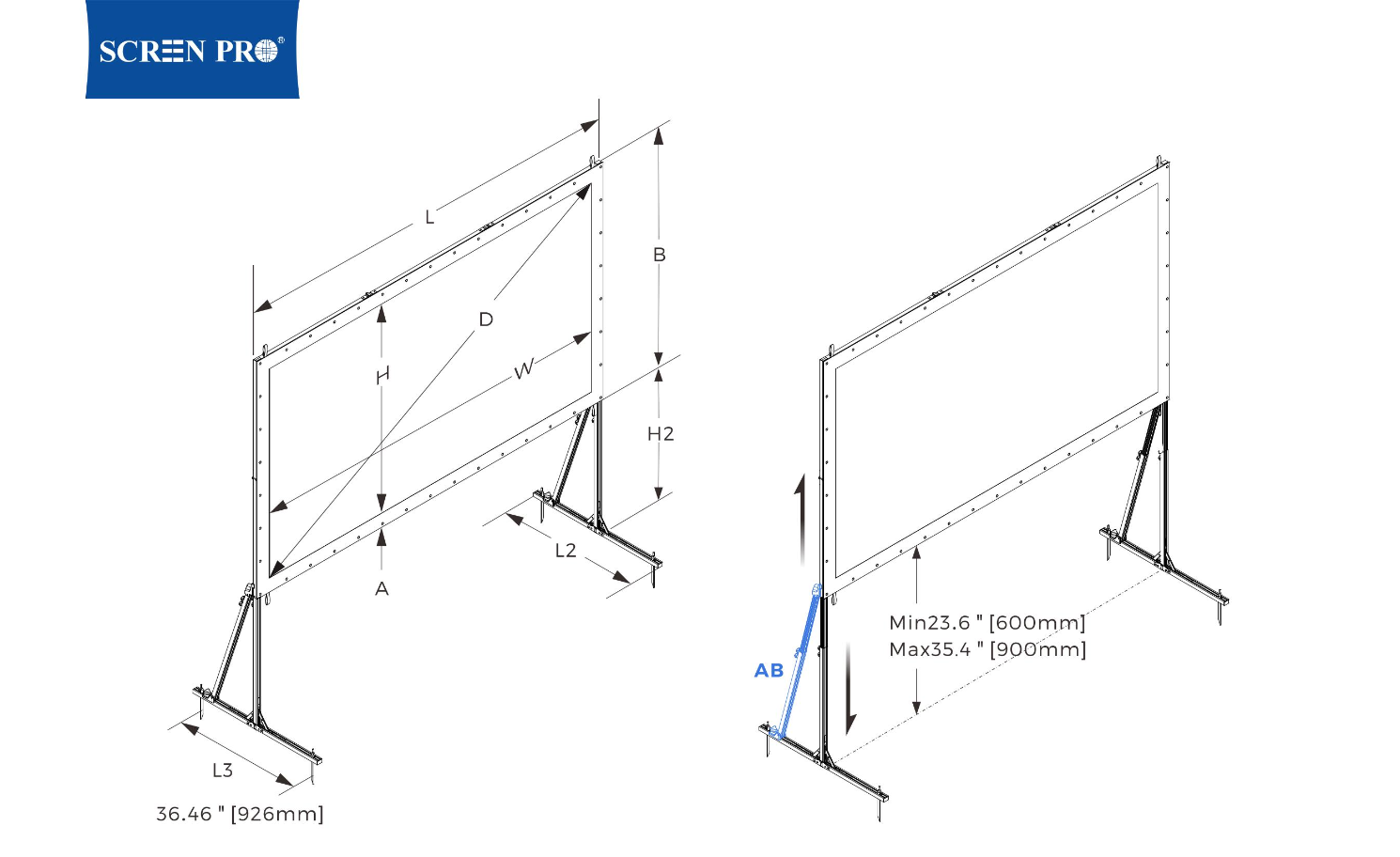

| SCREENPRO Quick Fold Screen With Adjustable Legs - Benz | Unit: mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FORMAT | DIAG. SIZE | VIEWING SIZE | OVERALL DIMENSIONS | BOTTOM OF FRAME TO GROUND |
FEET FULLY EXTENDED |
BLACK BORDER | STANDARD LEGS | PACKAGE DIMENSION | APPROX. WEIGHT | NOTE | ||
| D | W x H | L x B | H2 | L2 | A | L3 | Unit | Kg | Lbs | |||
| 16:9 | 100" | 2214 x 1245 | 2406 x 1437 | 600-900 | 1030 | 100 | 926 | EL | 1000 x 295 x 150 | 12 | — | EL |
| 106" | 2347 x 1320 | 2539 x 1512 | 600-900 | 1030 | 100 | 926 | EL | 1010 x 295 x 150 | 13.6 | 24 | EL | |
| 120" | 2657 x 1494 | 2849 x 1686 | 600-900 | 1030 | 100 | 926 | EL | 1010 x 295 x 150 | 14.1 | 28.2 | EL | |
| 135" | 2988 x 1680 | 3180 x 1872 | 600-900 | 1030 | 100 | 926 | EL | 1150 x 295 x 150 | 15 | 30 | EL | |
| 144" | 3188 x 1793 | 3380 x 1985 | 600-900 | 1030 | 100 | 926 | EL | 1200 x 295 x 150 | 15.5 | 31 | EL | |
| 150" | 3320 x 1868 | 3380 x 1985 | 600-900 | 1030 | 100 | 926 | EL | 1270 x 295 x 150 | 16 | 32 | EL | |
Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.
Matte white projection fabric for general-purpose front projection applications.
Micro-perforated acoustic transparent fabric for behind-screen speaker setups.
Long-throw ALR material designed to improve contrast under ambient light.
High ALR micro-perforated fabric for large-format professional projection.
Rear projection fabric for professional installations requiring hidden projector placement.
Explore SCREENPRO screen solutions for live events, conference halls, rental staging, education spaces and portable projection setups.
Easy-fold portable screen system with height-adjustable legs for mobile events and professional staging setups.
View Product →Portable fast-fold outdoor screen system designed for event projection, temporary installs, and cinema-anywhere setups.
View Product →Large-venue quick-fold projection screen for professional stage events, conferences, and touring AV applications.
View Product →Professional portable frame screen for stage, exhibition, training, and commercial presentation environments.
View Product →Tell us your venue size, projection distance, screen ratio, and installation method. SCREENPRO can help match the right screen structure for your project.
Universal ceiling mounting solution for projector positioning in meeting rooms, classrooms, and event spaces.
Compact 1/4-inch screw projector mount bracket compatible with portable and mini projector models.
Professional stage drapery kit for masking, event presentation, and cleaner projection environments.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample .
No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.
Yes. Wall-mounting brackets are included with the wall-mounted screen series.
Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us .
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
