[Motorized screen series]
• Standard 868MHz RF (Radio Frequency) remote control/IR (Infrared) control is optional
• Ready to use, NO ASSEMBLY REQUIRED!
• Designed for RGB Triple Laser.
• Speckle Reduction Technology.
• 160° Wide Viewing Angle.
• Compatible with a 3rd party control system, ideal for use in meeting rooms, retail stores, home entertainment, and residential applications.
• Housing color option: White/Black
• Seamless Up to 3200mm Width.
At SCREEN PRO, our advanced 3C optical material delivers a true breakthrough in projection performance. With significantly enhanced black levels and superior speckle resistance, it produces deeper contrast, cleaner imagery, and a remarkably refined viewing experience.
Engineered for versatile wall or ceiling installation, the design adapts effortlessly to modern architectural spaces — preserving clean lines, maximizing layout flexibility, and ensuring a refined, unobtrusive presence in any professional or home cinema environment.
Silent Stability. Absolute Precision.
Modern spaces demand more than beauty — they demand performance.
SCREENPRO’s refined wind-stable structure is engineered to maintain flawless surface tension even in environments with active airflow. The upgraded arm expansion system allows installation closer to air outlets while preserving perfect flatness and structural balance.
No ripples.
No vibration.
No visual distortion.
Whether in executive boardrooms, premium education spaces, or private cinemas, the viewing surface remains steady and composed — delivering uninterrupted clarity in any environment.

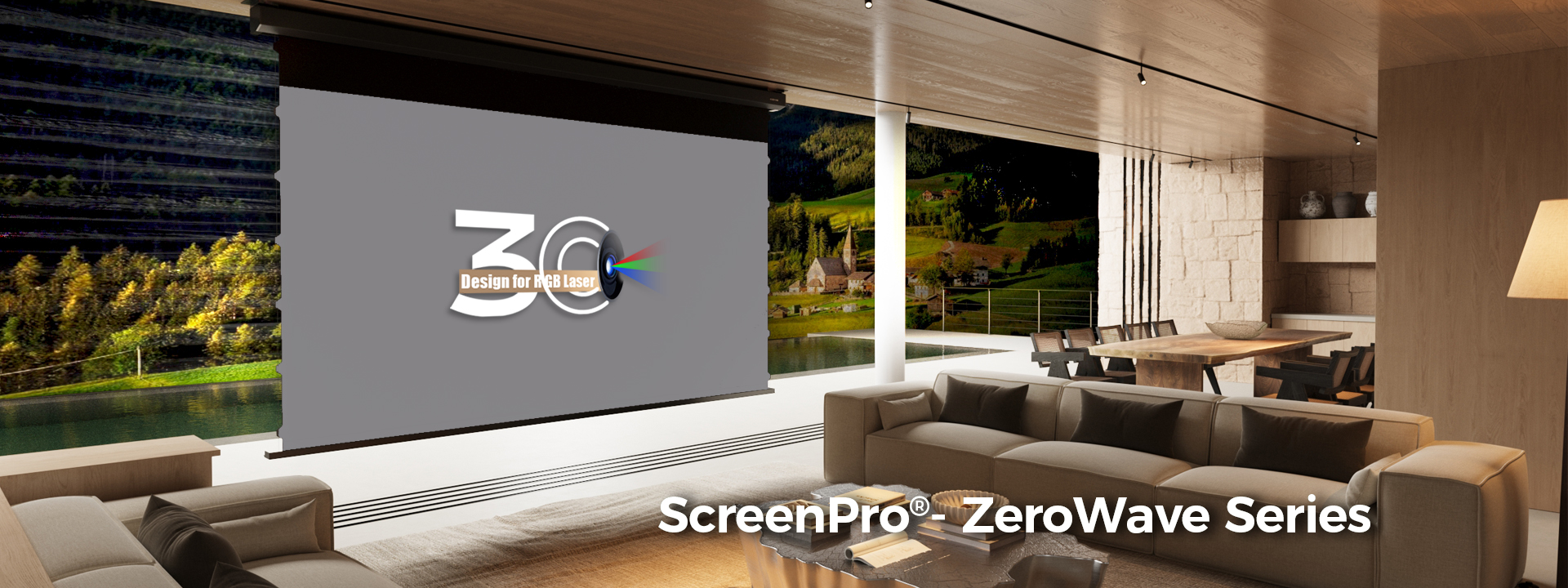

SCREENPRO Retractable Ceiling & Wall Projection Screen
Not all electric screens are created equal.
Unlike conventional motorized screens, SCREENPRO’s engineered expansion arm system maintains precise surface tension at all times. Even in environments with active airflow, the screen remains perfectly flat — free from waves, ripples, or vibration.
The result is uncompromised visual stability and consistently flawless viewing.
›› WATCH THE INSTALLATION VIDEO?
Designed for LaserRGB Triple Laser Projectors, carrying vivid high-definition images regardless of ambient light, brands such as: ViewSonic V57, Valerion Pro2, VisionMaster Pro2, XGIMI Horizon, JMGO N1s, BenQ V5010i, etc. Enables compatibility with 8K resolution projectors.
Unlike conventional projection screens, 3C fabric features a specially engineered micro-structured surface that disperses coherent laser light.
✔ Significantly reduces visible laser speckle
✔ Maintains brightness and color fidelity
✔ Improves viewing comfort
| LEARN MORE |
Syncs with your projector's Power. It allows you to lose your remote and let the projector take over the automation.
*upon request
| FIND OUT MORE |
At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.
| SHOP NOW |
We send packages overseas and ensure that your screen is securely wrapped to prevent damage. The inner layer of the carton package consists of a pearl cotton and foam board buffer layer, while the outer frame is made of customized solid wood to guarantee that the product arrives in good condition. You can relax and wait for it to arrive at your doorstep.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® ZeroWave motorized screen is designed for RGB laser projection applications. Compare viewing dimensions, overall screen dimensions, package size, ceiling slot data, and installation references before planning your home cinema or project installation.
Estimate viewing distance, projector throw distance, screen width, and screen height before choosing your ZeroWave motorized screen.
Use the labels in this diagram together with the Quick Size Reference and Full Engineering Specifications below.
Core viewing size, overall dimensions, package size, and weight for quick room planning.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Package Size | Weight |
|---|---|---|---|---|---|---|
| 16:9 | 84" | 1859 × 1046 mm | 2094 mm | 1356 mm | 2182 × 230 × 180 mm | 26 kg / 57 lbs |
| 16:9 | 92" | 2037 × 1145 mm | 2272 mm | 1453 mm | 2360 × 230 × 180 mm | 29 kg / 64 lbs |
| 16:9 | 100" | 2214 × 1245 mm | 2449 mm | 1555 mm | 2520 × 230 × 180 mm | 32 kg / 70 lbs |
| 16:9 | 110" | 2435 × 1370 mm | 2670 mm | 1680 mm | 2730 × 230 × 180 mm | 34 kg / 75 lbs |
| 16:9 | 120" | 2656 × 1494 mm | 2891 mm | 1804 mm | 2960 × 230 × 180 mm | 37 kg / 81 lbs |
| 16:9 | 135" | 2988 × 1681 mm | 3223 mm | 1941 mm | 3300 × 230 × 180 mm | 40 kg / 88 lbs |
| 16:9 | 150" | 3320 × 1868 mm | 3555 mm | 2078 mm | 3630 × 230 × 180 mm | 44 kg / 97 lbs |
Engineering & Installation
View detailed black border values, ceiling slot dimensions, package data, approximate weight, and engineering labels for AV integrators, dealers, logistics teams, and custom installation planning.
Detailed dimensions for project quotation, logistics planning, and installation confirmation.
| Format | Diag. Size | Viewing Size | Top B2 |
Bottom B1 |
L/R A |
Screen Length L |
Screen Height B |
Overall Length L3 |
Package L1 × W1 × H1 |
Ceiling Slot P2 |
Ceiling Slot H2 |
Ceiling Slot W2 |
Weight | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16:9 | 84" | 1859 × 1046 mm | 275 mm | 35 mm | 55 mm | 2094 mm | 1356 mm | 2144 mm | 2182 × 230 × 180 mm | 2204 mm | 145 mm | 170 mm | 26 kg / 57 lbs | Wooden crate box |
| 16:9 | 92" | 2037 × 1145 mm | 275 mm | 35 mm | 55 mm | 2272 mm | 1453 mm | 2322 mm | 2360 × 230 × 180 mm | 2382 mm | 145 mm | 170 mm | 29 kg / 64 lbs | Wooden crate box |
| 16:9 | 100" | 2214 × 1245 mm | 275 mm | 35 mm | 55 mm | 2449 mm | 1555 mm | 2499 mm | 2520 × 230 × 180 mm | 2559 mm | 145 mm | 170 mm | 32 kg / 70 lbs | Wooden crate box |
| 16:9 | 110" | 2435 × 1370 mm | 275 mm | 35 mm | 55 mm | 2670 mm | 1680 mm | 2720 mm | 2730 × 230 × 180 mm | 2780 mm | 145 mm | 170 mm | 34 kg / 75 lbs | Wooden crate box |
| 16:9 | 120" | 2656 × 1494 mm | 275 mm | 35 mm | 55 mm | 2891 mm | 1804 mm | 2941 mm | 2960 × 230 × 180 mm | 3001 mm | 145 mm | 170 mm | 37 kg / 81 lbs | Wooden crate box |
| 16:9 | 135" | 2988 × 1681 mm | 225 mm | 35 mm | 55 mm | 3223 mm | 1941 mm | 3273 mm | 3300 × 230 × 180 mm | 3333 mm | 145 mm | 170 mm | 40 kg / 88 lbs | 3330 × 360 × 260 / 49 kg |
| 16:9 | 150" | 3320 × 1868 mm | 175 mm | 35 mm | 55 mm | 3555 mm | 2078 mm | 3605 mm | 3630 × 230 × 180 mm | 3665 mm | 145 mm | 170 mm | 44 kg / 97 lbs | 3660 × 360 × 260 / 62 kg |
Use the SCREENPRO® Projection Screen Size Calculator to estimate viewing distance, screen dimensions, and projector throw compatibility before selecting your ZeroWave motorized screen.
The SCRENPRO 3C febric micre srectured urfece effectihey diues coherenl lae lisht. reurcing thimmerig or grainy pellerns and enhancing overall clarity. The esuls inricher colors, cleaner gradients, and more stable visuals, especially important when using triple-laser or ultra-short-throw laser projectors. The fobric helbs evenly disperse the laser light, reducing hotspots orlocalied overexposure caused by concentrated light. This is particularly evident in dark scenes where blacklevel oreclearer, colors are purer, and the overall image is more stable.
Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."
Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.
WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.
Same screen structure. Different optical surfaces. Explore compatible SCREENPRO systems designed for RGB laser, home theater, architectural and professional projection environments.
Premium flatness with a side tensioning system for reference-level home theater and RGB laser projection.
View Product →Recessed screen solution for clean architectural integration in premium residential or commercial spaces.
View Product →Classic electric projection screen for flexible residential, education and commercial display applications.
View Product →Elegant floor-rising projection screen solution for modern living rooms and ultra short throw projector environments.
View Product →Ultra-slim fixed frame structure with a clean visual edge for dedicated cinema and premium interiors.
View Product →Tell us your projector model, room environment and preferred installation style. SCREENPRO will help match the right screen structure and optical surface.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us.
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
