SCREENPRO® Portable Front & Rear Projection Quick Fold Screen | Jampo™ Series

Quick-Fold Screen Professional Series ≥150-200"

  • Excellent projection display
  • Flexible and fast installation method
  • Portable and user-friendly
  • The outdoor projector screen includes a heavy-duty, wheeled carrying case for storing and carrying around.
  • Aviation-grade aluminum material stands up to the wind
  • Optional rear projection fabric available
  • Optional black velour UDLR 4 sides full screen dress kit(customized)





Features Specifications Screen Material Gallery Compatible FAQs

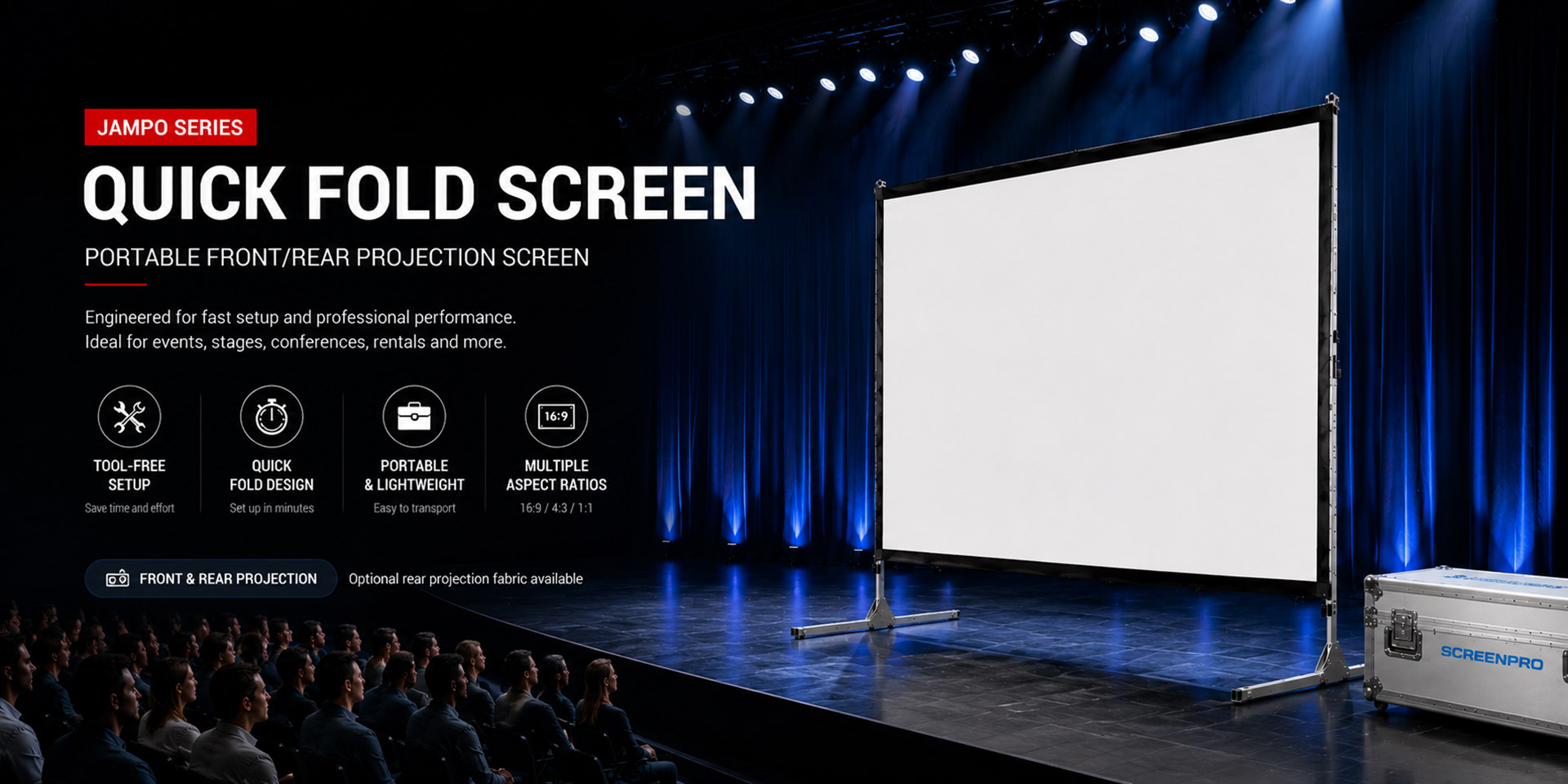

SCREENPRO Jampo Series quick fold projection screen for stage event front and rear projection

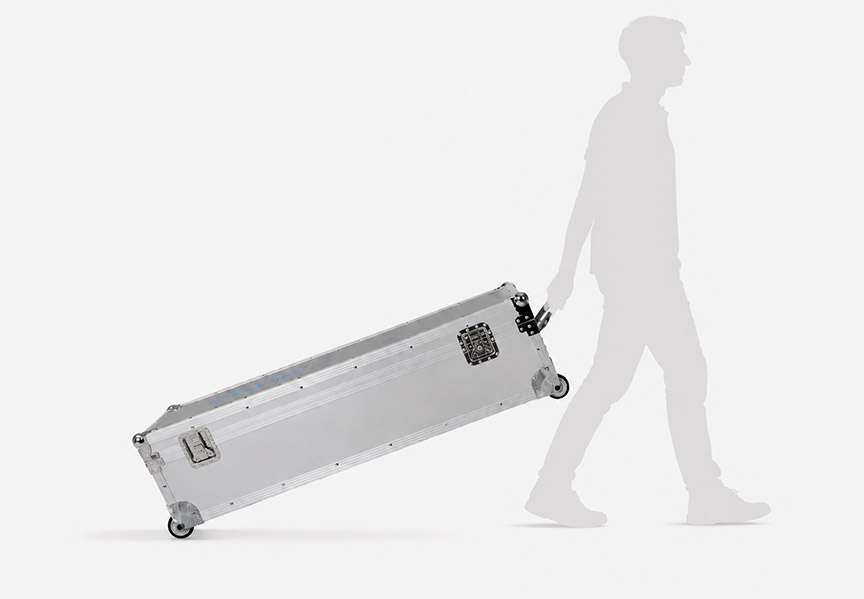

SCREENPRO portable quick fold projection screen with flight case for event rental transport

Designed to Move Around

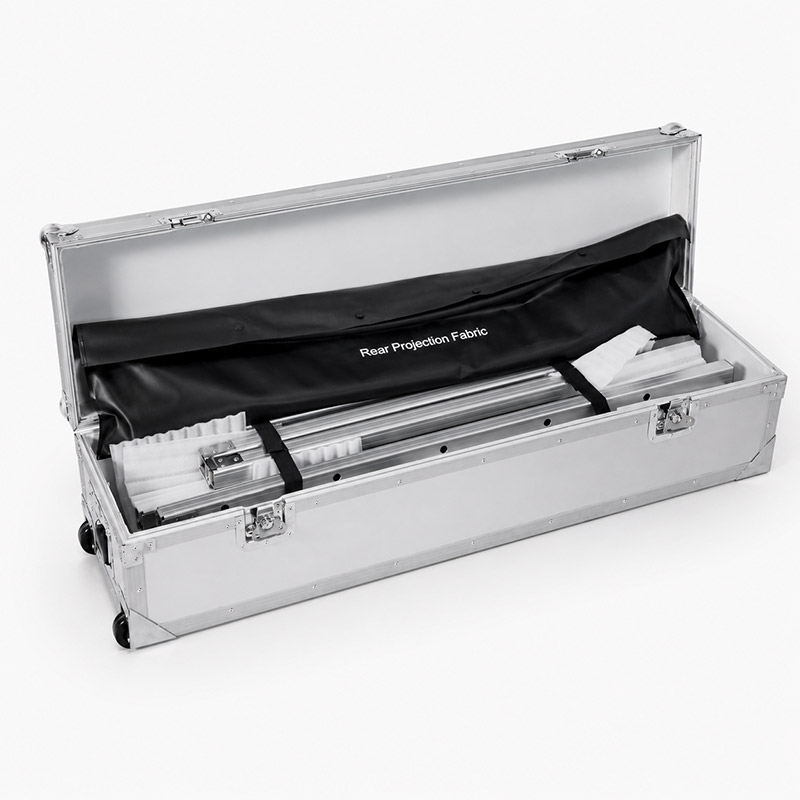

The SCREENPRO® Jampo Series Quick Fold Screen comes with a professional flight case for storage and transport. It helps event teams, rental companies, AV installers and venue operators move the screen easily from one location to another.

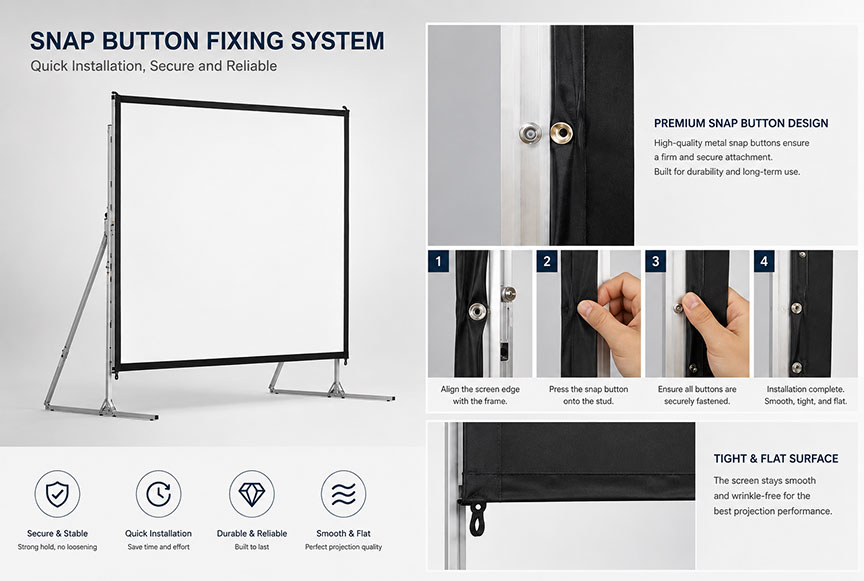

SCREENPRO snap button fixing system for quick fold projector screen fabric installation

Ready for Large Events

The snap button fixing system allows the projection surface to be attached quickly and securely to the frame. SCREENPRO® front and rear projection fabrics are designed to stay smooth, flat, and accurately aligned for stages, conferences, churches, exhibitions, and large-venue presentations.

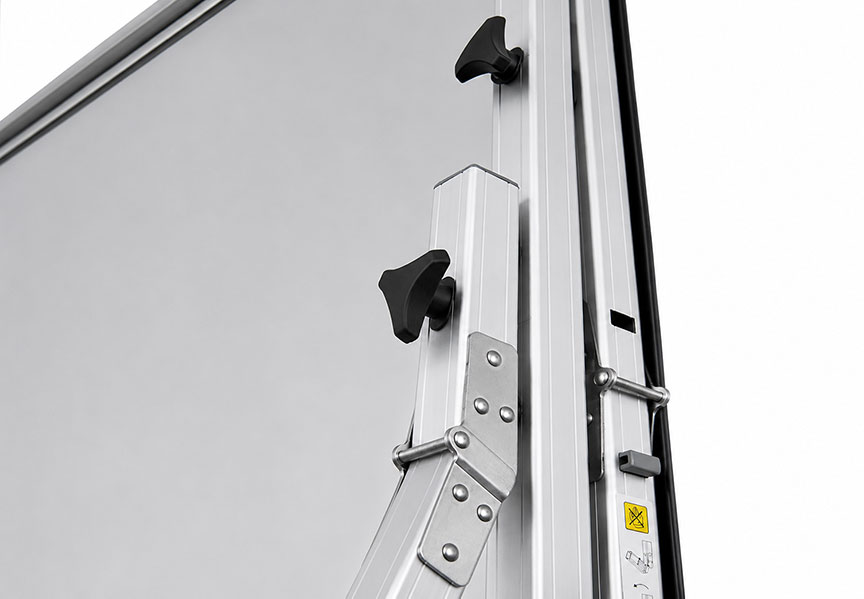

SCREENPRO aluminum quick fold projection screen frame with snap joints and tool free setup

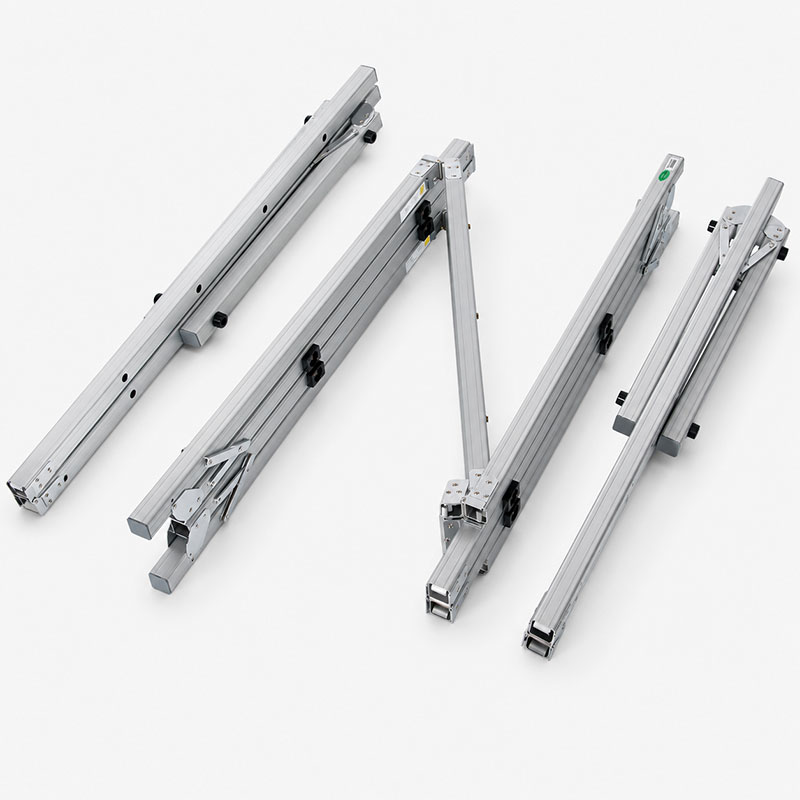

Quick-Fold Aluminum Frame

High-precision extruded aluminum profiles and integrated snap joints form the structural frame of the Jampo Series portable projection screen. The foldable frame opens quickly, locks securely and reduces the risk of missing parts during repeated setup and dismantling.

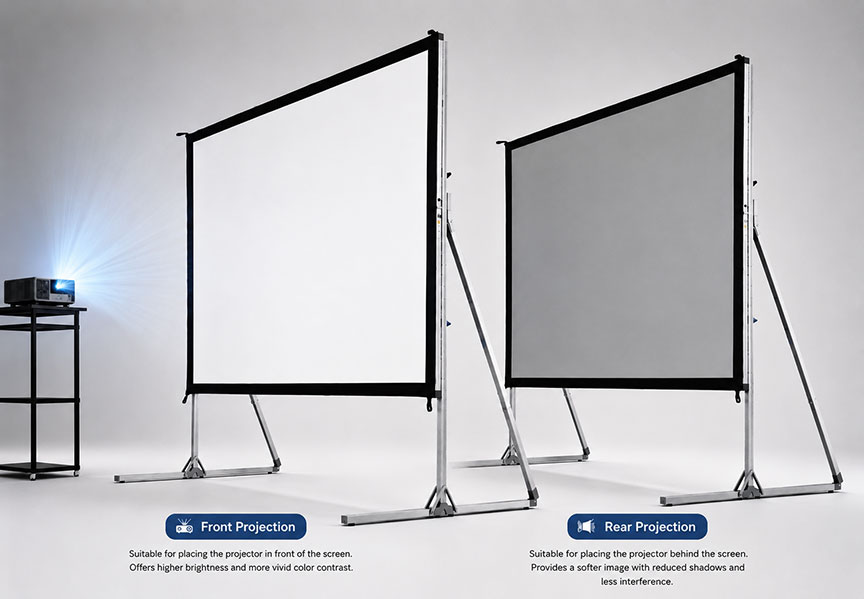

SCREENPRO front rear projection quick fold screen with stable support legs for stage and rental use

Front / Rear Projection

The SCREENPRO® Jampo Series supports both front projection and optional rear projection fabric configurations. Its reinforced support structure is designed for demanding applications such as stage production, corporate events, rental installations, houses of worship and professional AV environments.

SCREENPRO Size Chart Pro Ultra

Select the Right Large Portable Screen Size

The SCREENPRO large portable projection screen is designed for rental, staging, events, auditoriums, and large-format installations. Compare viewing size, overall dimensions, adjustable height range, package dimensions, flight case options, and approximate weight before planning your project.

120" - 160"Portable large-screen setups with standard AT legs and flight case options.
180" - 200"Event and stage applications with flight case plus carton box packaging.
250" - 400"Large-format project installations with reinforced legs and wooden crate or dual flight case shipping.

Planning a Large Venue Installation?

Confirm screen width, adjustable height, bottom frame clearance, packaging size, site access, and crew handling requirements before final quotation.

Project Inquiry →

Dimension Diagram

Use the dimension image together with the Quick Size Reference and Full Engineering Specifications below.

SCREENPRO large portable projection screen dimension diagram
All dimensions are approximate and for engineering reference only.

Quick Size Reference

Core screen size, overall dimensions, package data, and weight for fast project comparison.

Swipe left to view full specifications →
Format Diag. Size Viewing Size Overall Dimensions Overall Height Feet Fully Extended Black Border Standard Legs Bottom of Frame to Ground Flight Case Package Dimensions Weight Note
16:9 120" 2650 × 1490 mm 2800 × 1640 mm 2040~3040 mm 1220 mm 75 mm AT 210~1210 mm 38.5 kg FlightCase+MW+RL
16:9 135" 2980 × 1680 mm 3130 × 1830 mm 2040~3040 mm 1220 mm 75 mm AT 390~1390 mm 45.5 kg FlightCase+MW+RL
16:9 150" 3320 × 1860 mm 3470 × 2010 mm 2190~3190 mm 1220 mm 75 mm AT 320~1320 mm 1530 × 440 × 410 mm 52 kg FlightCase+MW+RL
16:9 160" 3520 × 1980 mm 3670 × 2130 mm 2830~3830 mm 1950 mm 75 mm AT 340~1340 mm 60 kg FlightCase+MW+RL
16:9 180" 3985 × 2241 mm 4135 × 2391 mm 2661~3261 mm 1950 mm 75 mm AT 270/470/670/870 mm 1740 × 350 × 340 mm 1800 × 415 × 415 mm 54 kg FlightCase+CartonBox
16:9 200" 4428 × 2491 mm 4578 × 2641 mm 2881~3481 mm 1950 mm 75 mm AT 250/450/650/850 mm 1740 × 350 × 340 mm 1800 × 415 × 415 mm 61 kg FlightCase+CartonBox
16:9 250" 5534 × 3113 mm 5734 × 3313 mm 3463~3863 mm 1950 mm 75 mm SATx2
ATx2
200/400/600 mm 2050 × 530 × 580 mm 2080 × 540 × 600 mm 115 kg 2120 × 720 × 570 / 120kg wooden crate
16:9 300" 6641 × 3736 mm 6791 × 3886 mm 4086~4486 mm 1950 mm 75 mm SATx2
ATx2
200/400/600 mm 2050 × 530 × 580 mm 2080 × 540 × 600 mm 130 kg 2120 × 720 × 570 / 135kg wooden crate
16:9 400" -KD 8854 × 4981 mm 9054 × 5181 mm / 1950 mm 100 mm AT 200/400/600 mm 2785 × 435 × 410 mm ×2 2910 × 560 × 505 mm ×2 280 kg FlightCase+CartonBox
Quick Planning Note:
Dimensions are based on the provided engineering chart. Final specifications should be confirmed according to project requirements, packaging method, and installation conditions.

Engineering & Installation

Need Full Engineering Specs?

Use the full table above for viewing size, overall dimensions, adjustable height range, black border, leg configuration, package dimensions, and approximate shipping weight.

Project Inquiry →

Need a Custom Size or Project Recommendation?

SCREENPRO supports project-based screen size planning, packaging confirmation, rental/staging applications, and OEM / ODM customization for dealers, AV integrators, and large venue projects.

Projection Calculator →

Compatible Screen Materials

Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.

SCREENPRO MW matte white projection screen fabric
MW

Matte white projection fabric for general-purpose front projection applications.

  • Gain1.0
  • Viewing Angle156°
  • Resolution4K
Learn more →
SCREENPRO TM micro perforated acoustic transparent projection fabric
TM

Micro-perforated acoustic transparent fabric for behind-screen speaker setups.

  • Gain0.95
  • Viewing Angle165°
  • DiameterØ0.2mm
Learn more →
SCREENPRO 8K long throw ambient light rejecting projection fabric
8K

Long-throw ALR material designed to improve contrast under ambient light.

  • Gain1.1
  • ALR70%
  • Viewing Angle160°
Learn more →
SCREENPRO T8 long throw ALR micro perforated projection screen fabric
T8

High ALR micro-perforated fabric for large-format professional projection.

  • Gain1.1
  • ALR90%
  • Viewing Angle140°
Learn more →
SCREENPRO RL rear projection screen fabric for commercial AV installations
RL

Rear projection fabric for professional installations requiring hidden projector placement.

  • Gain1.0
  • ALR90%
  • Resolution4K
Learn more →
SCREENPRO STAGE & EVENT SYSTEM

Stage, Event & Portable Projection Screen Series

Explore SCREENPRO screen solutions for live events, conference halls, rental staging, education spaces and portable projection setups.

Stage Screen Event Screen Quick Fold Portable Motorized Manual

Benz™ Series Quick Fold

Model QB

Easy-fold portable screen system with height-adjustable legs for mobile events and professional staging setups.

Quick Fold Height Adjustable
View Product →

Victor™ Series Quick Fold

Model QV

Portable fast-fold outdoor screen system designed for event projection, temporary installs, and cinema-anywhere setups.

Portable Outdoor Event
View Product →

Jampo™ Series Quick Fold

Model QJ

Large-venue quick-fold projection screen for professional stage events, conferences, and touring AV applications.

Quick Fold Large Venue
View Product →

Topview™ Series Quick Fold

Model QT

Professional portable frame screen for stage, exhibition, training, and commercial presentation environments.

Portable Frame Professional Event
View Product →

Need help choosing the right stage or event screen?

Tell us your venue size, projection distance, screen ratio, and installation method. SCREENPRO can help match the right screen structure for your project.

COMPLETE YOUR EVENT SETUP

Compatible Accessories & Installation Solutions

SCREENPRO projector ceiling mount accessory

Projector Ceiling Mount

Universal ceiling mounting solution for projector positioning in meeting rooms, classrooms, and event spaces.

SCREENPRO compact ceiling projector mount bracket

Ceiling Projector Mount Bracket

Compact 1/4-inch screw projector mount bracket compatible with portable and mini projector models.

SCREENPRO projection screen drapery kit

Projection Screen Drapery Kit

Professional stage drapery kit for masking, event presentation, and cleaner projection environments.

SCREENPRO Portable Quick Fold Projection Screen | Victor™ Stage & Event Screen
SCREENPRO Portable Quick Fold Projection Screen | Victor™ Stage & Event Screen
SCREENPRO Portable Quick Fold Projection Screen | Victor™ Stage & Event Screen
Height Adjustable
No
No
No
Standard Legs
T
T
T
Waterproof Handbag
Yes
Yes
Yes
Wheeled Flight Case
No
No
No
Rear Projection
Optional
Optional
Optional
Black Screen Dress
Optional
Optional
Optional
Frame Color
Aluminium
Aluminium
Aluminium
Product
Victor™ Series Quick Fold-QV
Victor™ Series Quick Fold-QV
Victor™ Series Quick Fold-QV

Frequently Asked Questions

Everything you may want to know before choosing a SCREENPRO® projection screen.

No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.

Yes. You can purchase a screen material sample here: Material Sample .

No. SCREENPRO motorized screens are designed for direct plug-and-play operation and do not require a separate external power box or transformer.

Yes. Wall-mounting brackets are included with the wall-mounted screen series.

Yes. SCREENPRO prepares the appropriate voltage and regional power plug based on the shipping destination.

For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.

  • For a standard throw projector, a high-contrast grey screen can help improve black levels and perceived contrast.
  • For an ultra short-throw projector, a dedicated UST ALR screen is usually the better choice for maintaining contrast and reducing ambient light interference.

Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.

SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.

For project requirements, please contact us .

Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.

Please contact us for custom sizing.

SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.

We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.

For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
