Motorized ALR Screen - TJ-8K

Tab-Tensioned Screen For Long/Normal Throw Projectors

  • Front projection for environments with high ambient light
  • Deliver exceptionally clear images even in brightly lit surroundings
  • Low noise retraction
  • IR remote control operation
  • For in/on-wall or ceiling mounting
  • Rear projection surfaces available (visit Material for more viewing surface information)



SCREENPRO screen sales warranty badge


overview & Features SPECS Screen Materials GALLERY FAQs

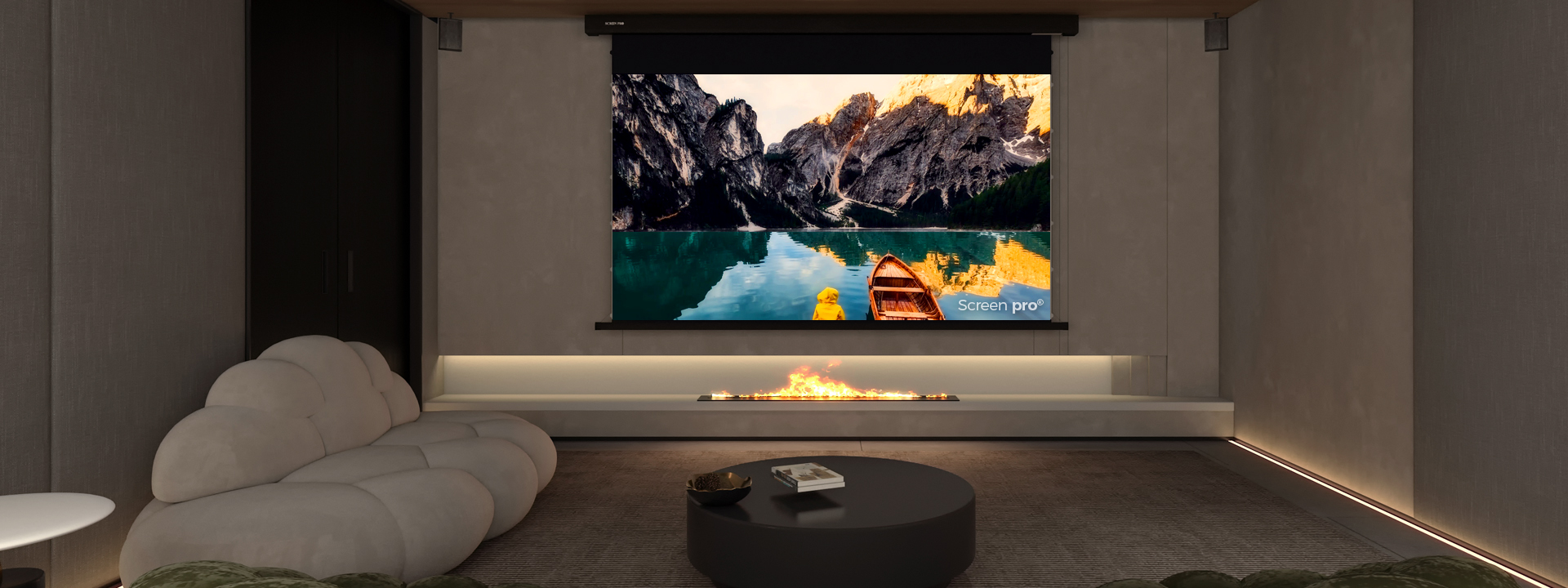

SCREENPRO motorized screen in an entertainment room
SCREENPRO motorized screen on the ceiling

Motorized Anti-light Screen

Prefers to keep your TV in your living room? No extra room in your apartment? Wish to disappear in your room afterward? The motorized screen is the one you are looking for. Long/Normal-throw projectors are more popular and affordable these days. Why don't you choose a 150-inch screen over a pricey 55-inch TV?

SCREENPRO motorized screen viewing angle

Rollable Design for Home Theater

T-Prism material series ALR (Ambient Light Rejection) screen for standard/long-throw projectors. With a nearly perfect viewing angle of 160 degrees and a big size range, our ALR screen is capable of being viewed from extreme off-axis positions even during daytime with ambient light. Customers can enjoy dynamic, colorful media without losing valuable wall space with its tab-tension motorized designs.

SCREENPRO motorized screen material layer

Brighter Image on Motorized ALR Screen

Ambient light rejecting screen for Long/Normal throw projectors. SCREENPRO anti-light material enhances the contrast of the image, making it suitable for displaying the image with a certain light distraction.



MORE OPTION
SCREENPRO motorized screen in different shape

Simple and Elegant

Developed by Chinese and European engineer co-team. White baking paint process, fully enclosed lower bar (Jampo L series), which has the function of dust prevention.

inside of SCREENPRO motorized screen with motor

Silent tubular motor

Silent motor already passes by UL, CE, and 3C certification, which is smooth and has low noise.

rechargeable remote control with side view

R8 control systems

The SCREENPRO® R&D R8 control system can integrate with home cinema systems. With a rechargeable(micro-B port) RF (Radio Frequency) remote control, a built-in low-power, high-performance, long-distance 868MHz wireless data transmission module, and easy to operate. (Crestron control system compatible)

SCREENPRO adjust the tension on the lower bar

Flatness

Screen flatness affects the resolution in your projection. The tab-tensioning system maintains the projection surface under constant tension, ensuring a perfectly flat viewing area. A flat projection surface will maximize the potential of your projector, ensuring that no pixels are lost or distorted. If the detail is important, a perfectly flat projection area is vital.

inside of SCREENPRO motorized screen with motor

Installation

SCREENPRO JAMPO series supports 3 installation methods to meet different needs(suspension | on the ceiling | on the wall)



〈 WATCH THE INSTALLATION VIDEO?



Projector triggered motorized screen rolling down

Say Goodbye To the Remote Control

Sync your projector(sync-trigger), and make your home smart the way you like. A small universal device that can synchronize your projector on and off, along with the screen surface going down and up. No need to consider with or without the trigger port.

*(add-on option)Synchronizer only works for the SCREENPRO® motorized screen series



〈 More Information

SCREENPRO ALR screen features description

Are you looking for a screen material sample(A4 size) to test on?

At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.



SHOP NOW
SCREENPRO projector screen material sample

We Care, So You Don't Have To

We send packages overseas, wrapping your screen to avoid it being damaged securely. The inner layer of the carton package is pearl cotton and a foam board buffer layer. A customized solid wood outer frame ensures the product is delivered to your home in good condition. You can chill and relax waiting for it to appear at your door.





SELECT THE RIGHT SCREEN FOR YOUR SPACE

At SCREENPRO, we're proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical capabilities for your Home Theater project, please refer to the chart below.



SCREENPRO Tensioned Screen - Jampo                                     Unit: mm
FORMAT DIAG.SIZE VIEWING SIZE BLACK BORDER           Ceiling cut out size (LxWxD) NOTE APPROX. WEIGHT
Top Bottom (L/R) SCREEN OVERALL LENGTH SCREEN OVERALL HEIGHT PACKAGE DIMENSIONS WOODEN CRATE PACKAGING CEILING SLOT DIMENSION
  D W x H B1 B2 A L B W1 X H1 X L1 W2 X H2 X L2 P2 H2 W2 Section Size Kg
16:9 92 ˝ 2037 X 1146 400 50 60 2360 1717 230 X 185 X 2410 250 X 335 X 2460 2460 150 130 Jampo
96x88mm
20.7
100 ˝ 2214 X 1245 400 50 60 2537 1816 230 X 185 X 2587 250 X 335 X 2637 2637 150 130 22.3
106 ˝ 2346 X 1320 400 50 60 2669 1891 230 X 185 X 2719 250 X 335 X 2769 2769 150 130 23.4
110 ˝ 2435 X 1370 400 50 60 2758 1941 230 X 185 X 2808 250 X 335 X 2858 2858 150 130 24.2
120 ˝ 2656 X 1494 400 50 60 2959 2065 230 X 185 X 2970 250 X 335 X 3020 3059 150 130 26.1
135 ˝ 2988 X 1681 400 50 60 3311 2252 230 X 185 X 3361 250 X 335 X 3411 3411 150 130 29.2
150 ˝ 3320 X 1868 400 50 60 3672 2498 250 X 250 X 3772 270 X 400 X 3822 3772 195 195 Jampo L
150X150mm
46.2
165 ˝ 3652 X 2055 400 50 60 4004 2685 250 X 250 X 4104 270 X 400 X 4154 4104 195 195 51.3
180 ˝ 3984 X 2241 400 50 60 4336 2871 250 X 250 X 4436 270 X 400 X 4486 4436 195 195 56.6
200 ˝ 4427 X 2490 200 50 60 4779 2920 250 X 250 X 4879 270 X 400 X 4929 4879 195 195 75.5
220 ˝ 4870 X 2739 200 50 60 5222 3169 250 X 250 X 5322 270 X 400 X 5372 5322 195 195 83.8
240 ˝ 5313 X 2988 200 50 60 5665 3418 250 X 250 X 5765 270 X 400 X 5815 5765 195 195 92.0
250 ˝ 5534 X 3113 200 50 60 5886 3543 250 X 250 X 5986 270 X 400 X 6036 5986 195 195 97.0
16:10 92 ˝ 1982 X 1239 400 50 60 2305 1810 230 X 185 X 2355 250 X 335 X 2405 2405 150 130 Jampo
96x88mm
20.7
100 ˝ 2154 X 1346 400 50 60 2477 1917 230 X 185 X 2527 250 X 335 X 2577 2577 150 130 22.0
106 ˝ 2283 X 1427 400 50 60 2606 1998 230 X 185 X 2656 250 X 335 X 2706 2706 150 130 23.4
110 ˝ 2369 X 1481 400 50 60 2692 2052 230 X 185 X 2742 250 X 335 X 2792 2792 150 130 24.2
120 ˝ 2585 X 1615 400 50 60 2908 2186 230 X 185 X 2958 250 X 335 X 3008 3008 150 130 26.2
135 ˝ 2908 X 1817 400 50 60 3231 2388 230 X 185 X 3281 250 X 335 X 3331 3331 150 130 29.3
150 ˝ 3231 X 2019 400 50 60 3583 2649 250 X 250 X 3683 270 X 400 X 3733 3683 195 195 Jampo L
150X150mm
45.5
165 ˝ 3554 X 2221 400 50 60 3906 2851 250 X 250 X 4006 270 X 400 X 4056 4006 195 195 49.7
180 ˝ 3877 X 2423 300 50 60 4229 2953 250 X 250 X 4329 270 X 400 X 4379 4329 195 195 53.9
200 ˝ 4308 X 2692 200 50 60 4660 3122 250 X 250 X 4760 270 X 400 X 4810 4760 195 195 71.1
220 ˝ 4739 X 2962 200 50 60 5091 3392 250 X 250 X 5191 270 X 400 X 5241 5191 195 195 78.0
250 ˝ 5385 X 3366 200 50 60 5737 3796 250 X 250 X 5837 270 X 400 X 5887 5837 195 195 88.7
257 ˝ 5536 X 3460 200 50 30 5828 3890 250 X 250 X 5928 270 X 400 X 5978 5928 195 195 91.2
2.35:1 96 ˝ 2244 X 955 600 50 60 2567 1726 230 X 185 X 2617 250 X 335 X 2667 2667 150 130 Jampo
96x88mm
22.5
100 ˝ 2337 X 995 550 50 60 2660 1716 230 X 185 X 2710 250 X 335 X 2760 2760 150 130 23.2
106 ˝ 2478 X 1054 550 50 60 2801 1775 230 X 185 X 2851 250 X 335 X 2901 2901 150 130 24.5
119 ˝ 2781 X 1184 500 50 60 3104 1855 230 X 185 X 3154 250 X 335 X 3204 3204 150 130 27.1
126 ˝ 2945 X 1253 500 50 60 3268 1924 230 X 185 X 3318 250 X 335 X 3368 3368 150 130 28.5
135 ˝ 3155 X 1343 400 50 60 3507 1973 250 X 250 X 3607 270 X 400 X 3657 3607 195 195 Jampo L
150X150mm
43.3
150 ˝ 3506 X 1492 400 50 60 3858 2122 250 X 250 X 3958 270 X 400 X 4008 3958 195 195 47.6
159 ˝ 3716 X 1581 400 50 60 4068 2211 250 X 250 X 4168 270 X 400 X 4218 4168 195 195 50.1
165 ˝ 3857 X 1641 400 50 60 4209 2271 250 X 250 X 4309 270 X 400 X 4359 4309 195 195 51.8
180 ˝ 4207 X 1790 400 50 60 4559 2420 250 X 250 X 4659 270 X 400 X 4709 4659 195 195 67.6
200 ˝ 4675 X 1989 400 50 60 5027 2619 250 X 250 X 5127 270 X 400 X 5177 5127 195 195 74.5
220 ˝ 5142 X 2188 400 50 60 5494 2818 250 X 250 X 5594 270 X 400 X 5644 5594 195 195 81.7





calculator





What is Ambient Light Reflection Fabric ?

8K is a new kind of anti-light photoelectric composite material used for projection. It is made by adding NANO photoelectric reflective material uniformly into PVC and through a series of special processes. It has high gain, large field Angle, high flatness, good anti-light performance, 3D sense of the picture, more exquisite picture quality, better contrast, more vivid colors, and also has good anti-ultraviolet light characteristics. It’s a collection of traditional fabric in the advantages of a high-tech materials. Matching with 4K and 8K projectors, it can present an incomparable wonderful projection effect, bring the audience a gorgeous color horizon, and let the audience fully enjoy the visual feast brought by high-quality and clear pictures.























Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A-Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.






In Ceiling ALR Screen - TR-8K
In Ceiling ALR Screen - TR-8K
In Ceiling ALR Screen - TR-8K
Installation
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Ceiling Projector
Expansion Port
RS485/RS232、DC AMX
RS485/RS232、DC AMX
RS485/RS232、DC AMX
Control Options
868MHz IR remote
868MHz IR remote
868MHz IR remote
Available Sizes
100-150 Inch
100-150 Inch
100-150 Inch
Limit Adjustment
Remote
Remote
Remote
Low Voltage Trigger
Optional
Optional
Optional
Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
Color Options
White
White
White
Housing
Steel
Steel
Steel
Application
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Home Theater, Conference room etc.

Can I choose an ALR material such as fabric SP/8K/T8 for my Quick-Fold series screen?

Sadly, it can not match the quick-fold series. Folding the screen may create creases in the material.

Can I purchase a small sample of the material?

Yes, you can buy a screen material sample by clicking HERE.

What is the voltage for the SCREEN PRO motorized series? Can it be used abroad?

110v / 220v. No power transformer is required. We ensure that the voltage is correct for your shipping address.

How many types of projection screens do you produce?

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, etc. Clicking HERE.

Can I customize the screen size?

Yes, the size can be customized from 60 inches to 500 inches plus. Clicking HERE.

What are your specialties?

Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.

What's your Mode of Transport?

A:Air Transport(By Air)
B:Water/Sea Transport(By Water/Sea)
C:Road/Truck Transport(By Road/Truck)
D:Rail Transport(By Rail)
E:Mail Transport(By Mail)
F:Other Transport

Usually, we ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...

Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.
