Optional rear-projection fabric expands the range of possible usage scenarios.
【lightweight nylon waterproof portable storage bag with a zipper】
Optional rear-projection fabric expands the range of possible usage scenarios.
Unlike LED TVs, projectors rely on diffuse reflection, with no radiation or flicker. This gentler light reduces eye irritation and helps protect vision.

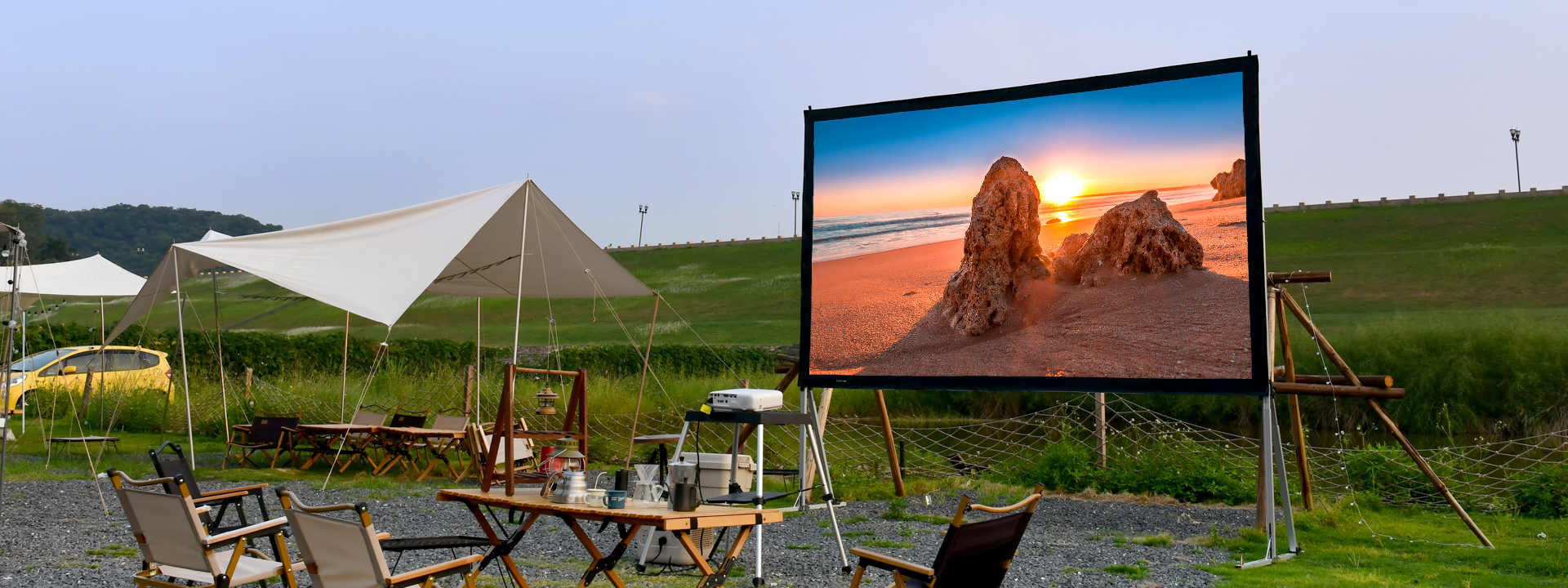

Comes with a lightweight, nylon, waterproof storage bag featuring a zipper for easy transport and storage. Compact design allows it to fit conveniently in a car trunk. Ideal for resorts, outdoor parties, and special events.
The screen legs are height-adjustable from 26.4 to 46.9 inches. Each leg is clearly marked with measurement scales, allowing quick and precise height adjustment. The height can be freely raised or lowered to ensure clear visibility even for audiences seated in the back rows.
Optional adjustable braces enhance overall system stability while requiring minimal setup effort. Each support leg features an integrated buckle system, enabling fast, tool-free locking and release at the press of a button.
With an inner leg width of 110 mm and a double-layer enclosed structure, the legs are made from nylon reinforced with 25% glass fiber. This enhances structural weight, minimizes deformation, and ensures robust support for the screen. Optional rear projection is supported.

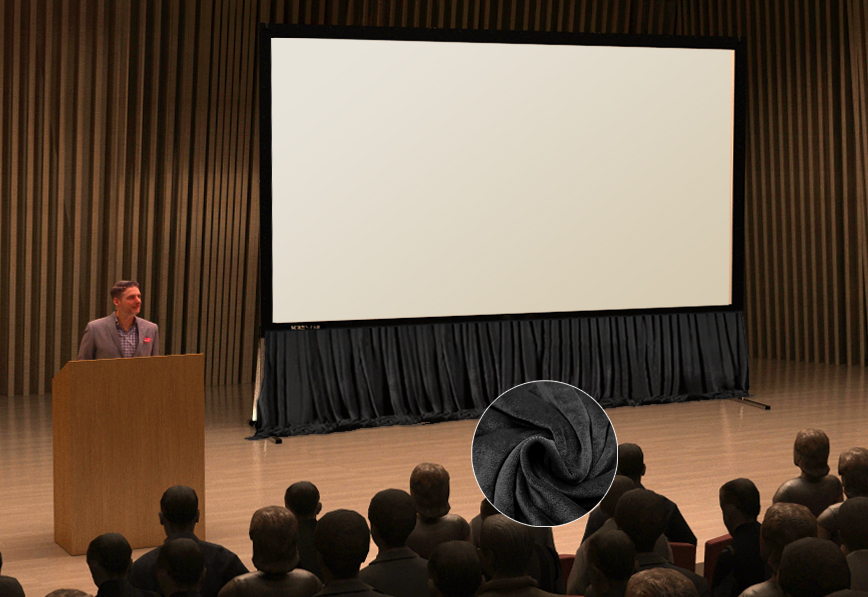

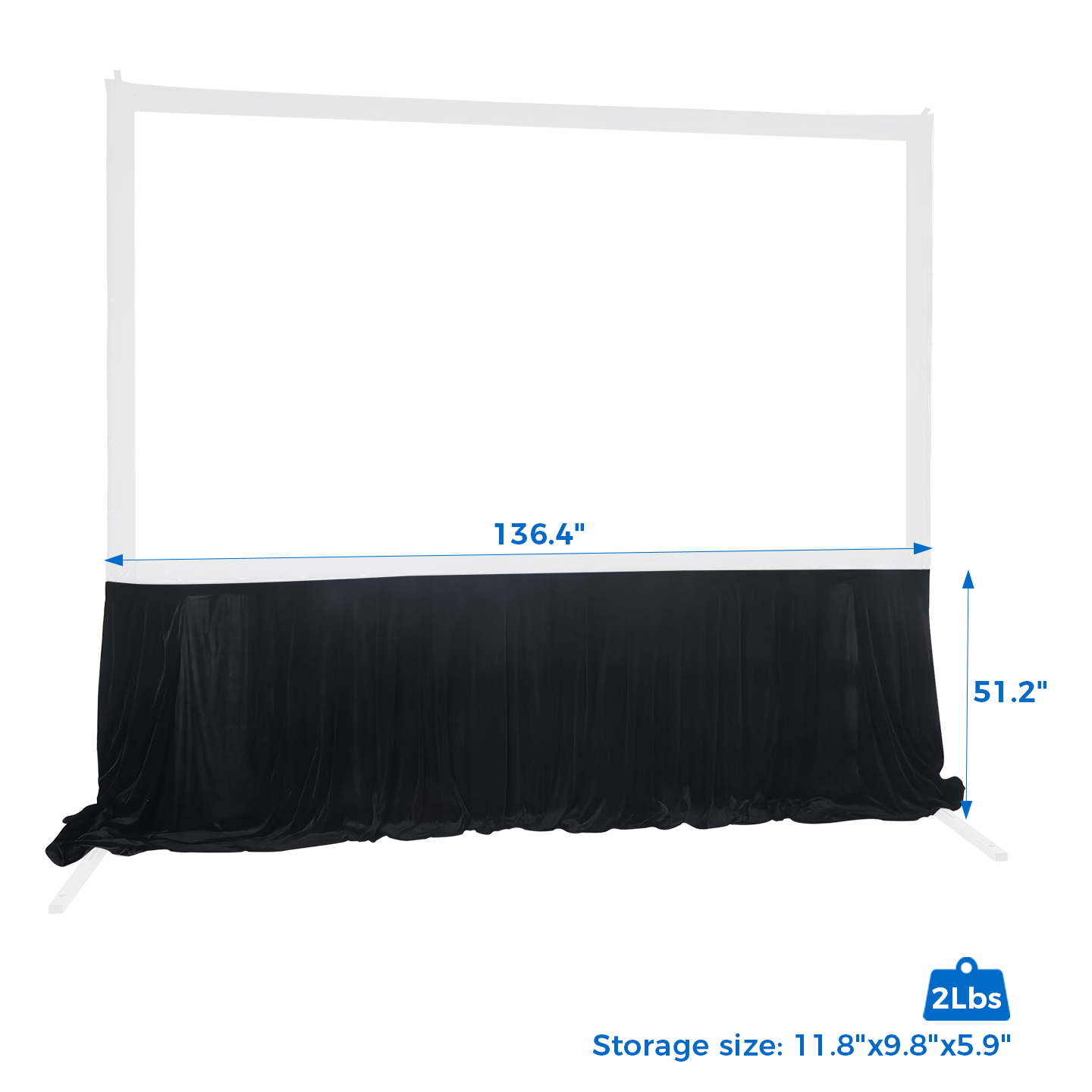

The optional SCREENPRO velvet skirt mask conceals distractions and creates a cleaner, more polished look—perfect for indoor lectures or garden events.
Unlock multiple installation options—the screen can be safely suspended from a stage batten using its reinforced frame.
At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical capabilities for your Home Theater project, please refer to the chart below.
| SCREENPRO Quick Fold Screen With Adjustable Legs- Benz | Unit: mm | |||||||||||
| FORMAT | DIAG.SIZE | VIEWING SIZE | OVERALL DIMENSIONS | BOTTOM OF FRAME TO GROUND | FEET FULLY EXTENDED | BLACK BORDER | STANDARD LEGS | PACKAGE DIMENSION | APPROX. WEIGHT | NOTE | ||
| D | WxH | LxB | H2 | L2 | A | L3 | unit | Kg | Lbs | |||
| 16:9 | 100" | 2214x1245 | 2406x1437 | 600-900 | 1030 | 100 | 926 | EL | / | 11.4 | 22.8 | AB |
| 106 " | 2347x1320 | 2539x1512 | 600-900 | 1030 | 100 | 926 | EL | / | 12 | 24 | AB | |
| 120 " | 2657x1494 | 2849x1686 | 600-900 | 1030 | 100 | 926 | EL | 1010x295x150 | 14.1 | 28.2 | AB | |
| 135 " | 2988x1680 | 3180x1872 | 600-900 | 1030 | 100 | 926 | EL | 1150x295x150 | 15 | 30 | AB | |
| 144 " | 3188x1793 | 3380x1985 | 600-900 | 1030 | 100 | 926 | EL | 1200x295x150 | 15.5 | 31 | AB | |
| 150 " | 3320x1868 | 3380x1985 | 600-900 | 1030 | 100 | 926 | EL | 1270x295x150 | 16 | 32 | AB | |
| 4:3 | 100 " | 2032x1524 | 2224x1716 | 600-900 | 1030 | 100 | 926 | EL | / | 10.4 | 23.0 | AB |
| 120 " | 2438x1829 | 2630x2021 | 600-900 | 1030 | 100 | 926 | EL | / | 11.3 | 25.0 | AB | |
| 150 " | 3048x2286 | 3240x2478 | 600-900 | 1030 | 100 | 926 | EL | / | 12.9 | 28.3 | AB | |
White Micro-Perforated
TM is a soft matte white fabric perforated ∅0.4 mm hole by the reasonable distribution of microporous longitudinal and transverse distance of 0.4 mm size, which can completely eliminate the Moire fringe phenomenon. The audience's viewing distance decreased from the original 6m to 2.5m. The reflective surface with suppression of micro prism physical structure, matched with 4k projectors, wider viewing angles, and clear natural quality, can clearly represent the fine people of an eyelash, can reproduce the projector itself wide-angle perfect natural qualities, better sound to the audience to enjoy.
More Choices
MW
Gain ｜ Viewing angle ｜ Resolution
1.0 156° 4K
TM
Gain ｜ Viewing angle ｜ Diameter
0.95 165° ∅0.2mm
8K
Gain ｜ ALR ｜ Viewing angle
1.1 70% 160
T8
Gain ｜ ALR ｜Viewing angle
1.1 90% 140°
RL
Gain ｜ ALR ｜ Resolution
1.0 90% 4K
Remarks：
1.The flameproof is judged according to the safety level of France NF P92-507.
2.A-Washing refers to cleaning the screen surface with a mixture of ethanol (7%) and ether (3%).
B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )
Cleaning steps：
1. For general dust, use a soft brush to clean the screen surface.
2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.
3. Rough objects or cloth may damage the screen surface.
4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeit vertical direction or revolve.
5. Please keep the screen dry.
WARNING!
- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.
- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanent damage to the screen.
- Avoid scratching the screen surface.
Sadly, it can not match the quick-fold series. Folding the screen may create creases in the material.
Yes, you can buy a screen material sample by clicking HERE.
110v / 220v. No power transformer is required. We ensure that the voltage is correct for your shipping address.
Yes, the size can be customized from 60 inches to 500 inches plus. Clicking HERE.
Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.
A：Air Transport（By Air）
B：Water/Sea Transport（By Water/Sea）
C：Road/Truck Transport（By Road/Truck）
D：Rail Transport（By Rail）
E：Mail Transport（By Mail）
F：Other Transport
Usually, we ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...
Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.
