[Motorized screen series]
• Standard 868MHz RF (Radio Frequency) remote control/IR (Infrared) control is optional
• Ready to use, NO ASSEMBLY REQUIRED!
• Designed for RGB Triple Laser.
• Speckle Reduction Technology.
• 160° Wide Viewing Angle.
• Compatible with a 3rd party control system, ideal for use in meeting rooms, retail stores, home entertainment, and residential applications.
• Housing color option: White/Black
• Seamless Up to 3200mm Width.
At SCREEN PRO, our advanced 3C optical material delivers a true breakthrough in projection performance. With significantly enhanced black levels and superior speckle resistance, it produces deeper contrast, cleaner imagery, and a remarkably refined viewing experience.

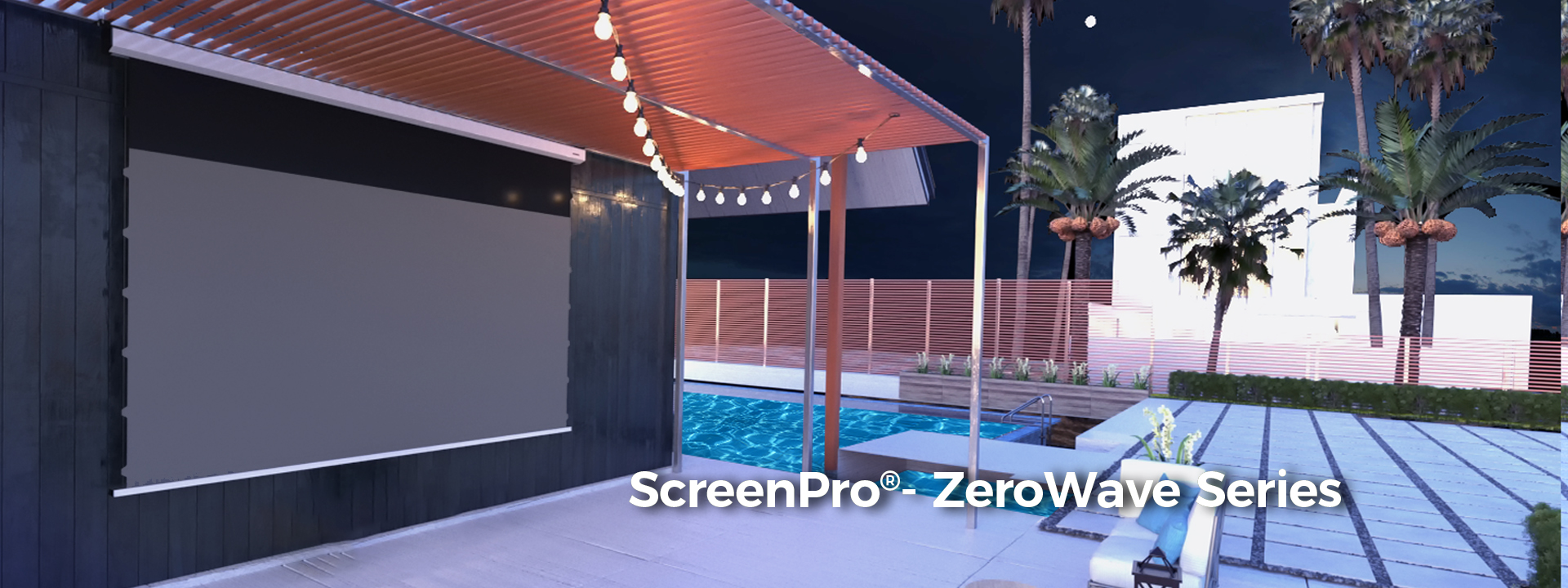

Engineered for versatile wall or ceiling installation, the design adapts effortlessly to modern architectural spaces — preserving clean lines, maximizing layout flexibility, and ensuring a refined, unobtrusive presence in any professional or home cinema environment.
Silent Stability. Absolute Precision.
Modern spaces demand more than beauty — they demand performance.
SCREENPRO’s refined wind-stable structure is engineered to maintain flawless surface tension even in environments with active airflow. The upgraded arm expansion system allows installation closer to air outlets while preserving perfect flatness and structural balance.
No ripples.
No vibration.
No visual distortion.
Whether in executive boardrooms, premium education spaces, or private cinemas, the viewing surface remains steady and composed — delivering uninterrupted clarity in any environment.

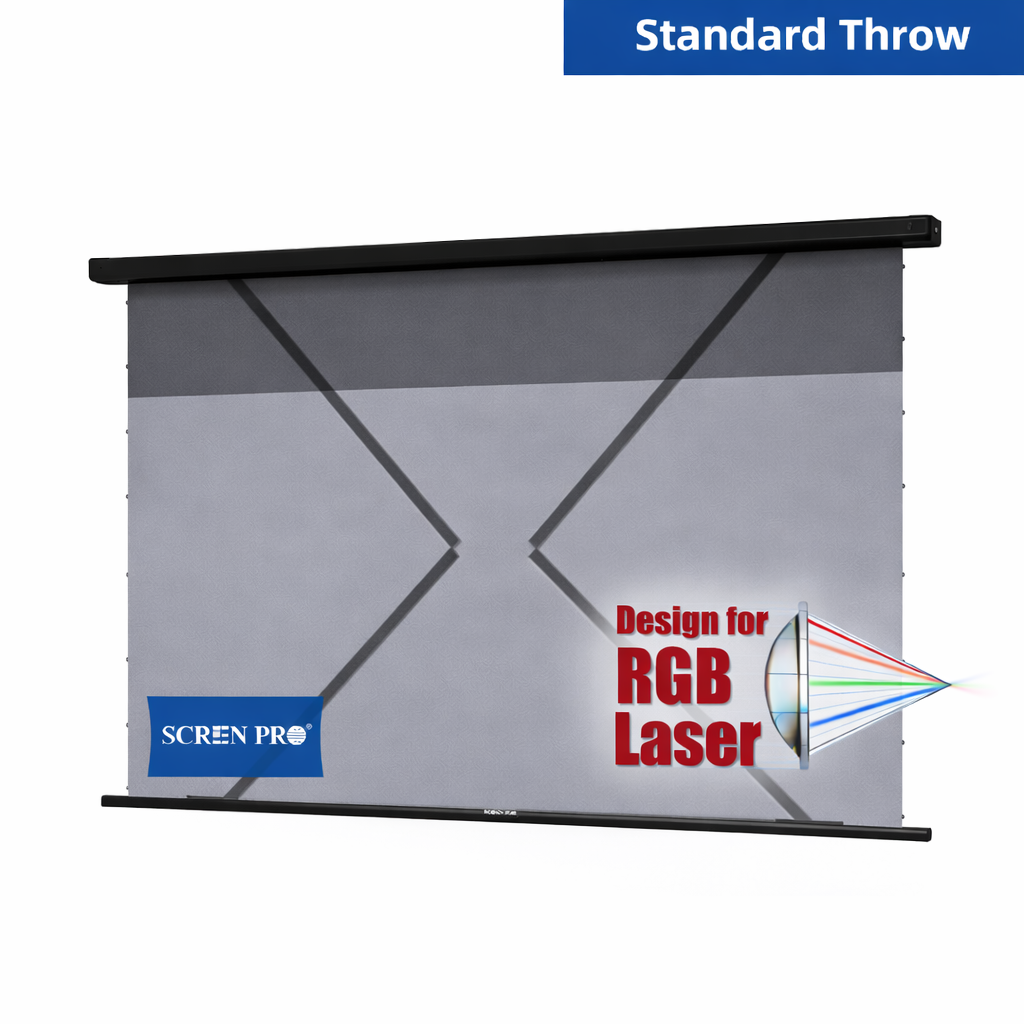

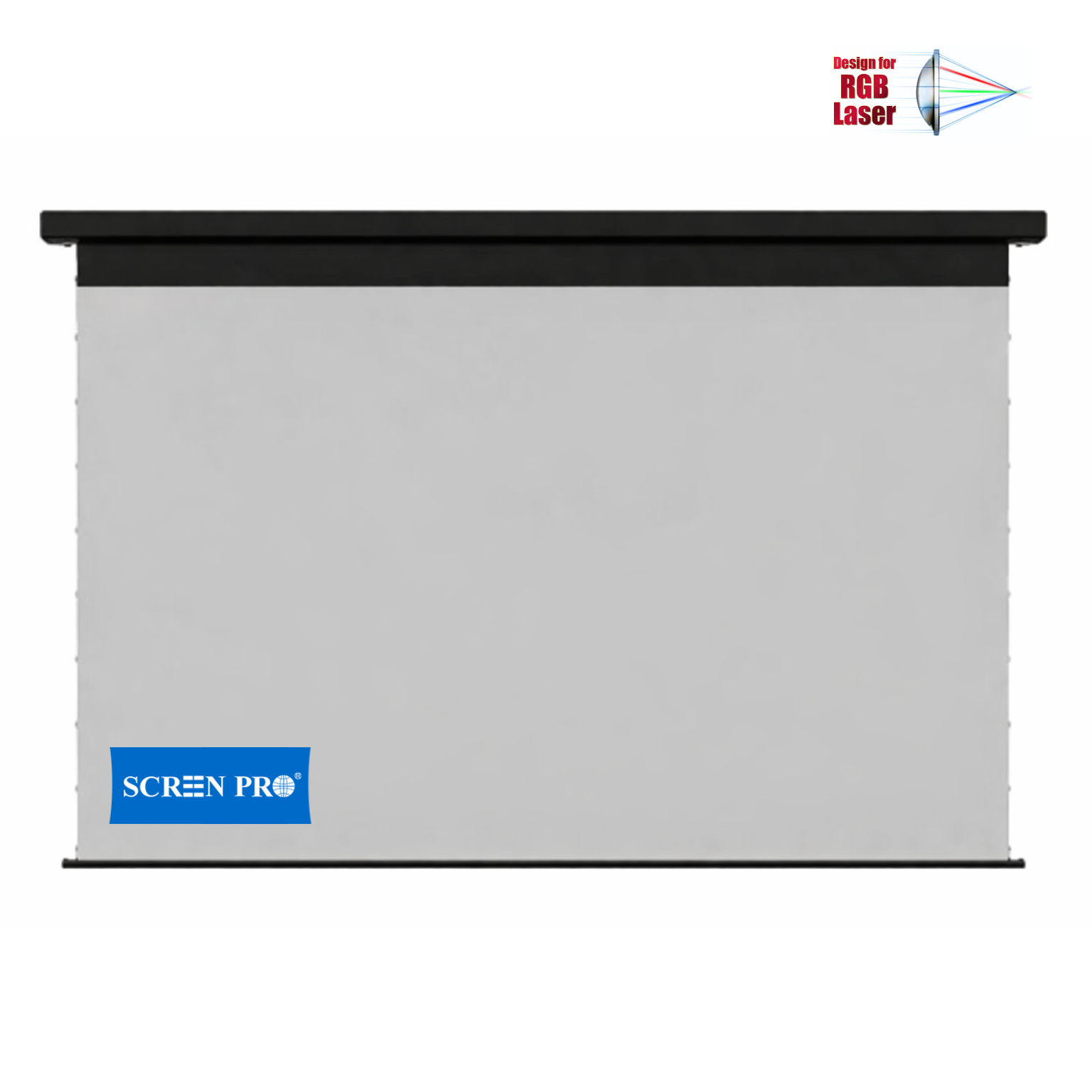

SCREENPRO Retractable Ceiling & Wall Projection Screen
Not all electric screens are created equal.
Unlike conventional motorized screens, SCREENPRO’s engineered expansion arm system maintains precise surface tension at all times. Even in environments with active airflow, the screen remains perfectly flat — free from waves, ripples, or vibration.
The result is uncompromised visual stability and consistently flawless viewing.
›› WATCH THE INSTALLATION VIDEO?
Designed for LaserRGB Triple Laser Projectors, carrying vivid high-definition images regardless of ambient light, brands such as: ViewSonic V57, Valerion Pro2, VisionMaster Pro2, XGIMI Horizon, JMGO N1s, BenQ V5010i, etc. Enables compatibility with 8K resolution projectors.

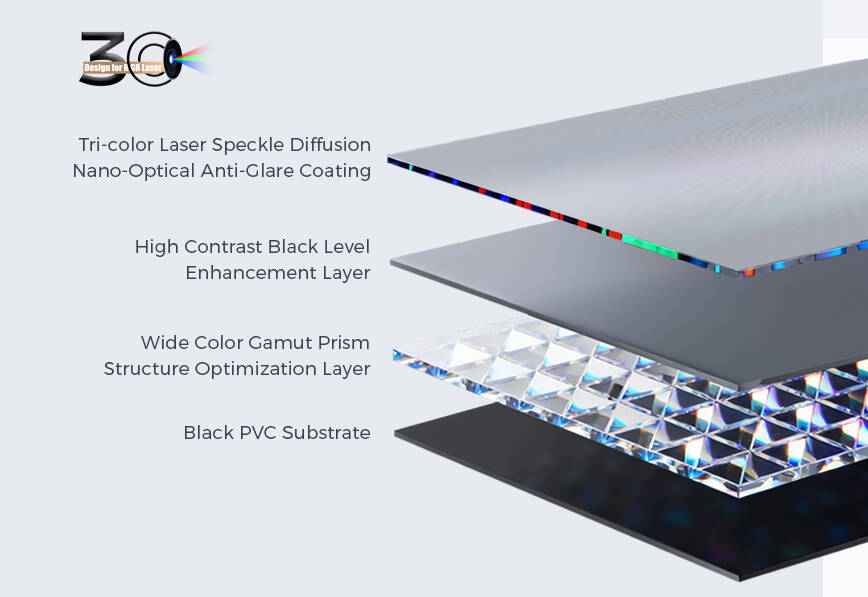

Unlike conventional projection screens, 3C fabric features a specially engineered micro-structured surface that disperses coherent laser light.
✔ Significantly reduces visible laser speckle
✔ Maintains brightness and color fidelity
✔ Improves viewing comfort
| LEARN MORE |
Syncs with your projector's Power. It allows you to lose your remote and let the projector take over the automation.
*upon request
| FIND OUT MORE |
At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.
| SHOP NOW |
We send packages overseas and ensure that your screen is securely wrapped to prevent damage. The inner layer of the carton package consists of a pearl cotton and foam board buffer layer, while the outer frame is made of customized solid wood to guarantee that the product arrives in good condition. You can relax and wait for it to arrive at your doorstep.
At SCREENPRO, we're proud of our wide selection of high-quality projection screens. Please refer to the chart below to help quickly find the right screen model with the right technical capabilities for your Home Theater project.
SIZE <Unit:mm>
| SCREENPRO Motorized ALR Screen For UST Screen - ZeroWave | Unit: mm | ||||||||||||||
| FORMAT | DIAG.SIZE | VIEWING SIZE | BLACK BORDER | SCREEN OVERALL LENGTH | SCREEN OVERALL HEIGHT | SCREEN OVERALL LENGTH | PACKAGE DIMENSIONS | Ceiling cut out size (LxWxD) | APPROX. WEIGHT | NOTE | |||||
| Top | Bottom | (L/R) | CEILING SLOT DIMENSION | ||||||||||||
| D | WxH | B2 | B1 | A | L | B | L3 | L1xW1xH1 | P2 | H2 | W2 | Kg | Lbs | wooden crate box | |
| 16:9 | 84˝ | 1859x1046 | 275 | 35 | 55 | 2094 | 1356 | 2144 | 2182x230x180 | 2204 | 145 | 170 | 26 | 57 | |
| 92˝ | 2037x1145 | 275 | 35 | 55 | 2272 | 1453 | 2322 | 2360x230x180 | 2382 | 145 | 170 | 29 | 64 | ||
| 100˝ | 2214x1245 | 275 | 35 | 55 | 2449 | 1555 | 2499 | 2520x230x180 | 2559 | 145 | 170 | 32 | 70 | ||
| 110˝ | 2435x1370 | 275 | 35 | 55 | 2670 | 1680 | 2720 | 2730x230x180 | 2780 | 145 | 170 | 34 | 75 | ||
| 120˝ | 2656x1494 | 275 | 35 | 55 | 2891 | 1804 | 2941 | 2960x230x180 | 3001 | 145 | 170 | 37 | 81 | ||
| 135˝ | 2988x1681 | 225 | 35 | 55 | 3223 | 1941 | 3273 | 3300x230x180 | 3333 | 145 | 170 | 40 | 88 | 3330x360x260(49kgs) | |
| 150˝ | 3320x1868 | 175 | 35 | 55 | 3555 | 2078 | 3605 | 3630x230x180 | 3665 | 145 | 170 | 44 | 97 | 3660x360x260(62kgs) | |
NOTE:
L+100mm = SCREEN OVERALL LENGTH
The SCRENPRO 3C febric micre srectured urfece effectihey diues coherenl lae lisht. reurcing thimmerig or grainy pellerns and enhancing overall clarity. The esuls inricher colors, cleaner gradients, and more stable visuals, especially important when using triple-laser or ultra-short-throw laser projectors. The fobric helbs evenly disperse the laser light, reducing hotspots orlocalied overexposure caused by concentrated light. This is particularly evident in dark scenes where blacklevel oreclearer, colors are purer, and the overall image is more stable.
Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."
Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.
WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.
Sadly, it can not match the quick-fold series. Folding the screen may create creases in the material.
Yes, you can buy a screen material sample by clicking HERE.
110v / 220v. No power transformer is required. We ensure that the voltage is correct for your shipping address.
Yes, the size can be customized from 60 inches to 500 inches plus. Clicking HERE.
Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.
A：Air Transport（By Air）
B：Water/Sea Transport（By Water/Sea）
C：Road/Truck Transport（By Road/Truck）
D：Rail Transport（By Rail）
E：Mail Transport（By Mail）
F：Other Transport
Usually, we ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...
Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.
