Rigid Frame ALR Screen - LY

Rigid ALR Screen for UST Projectors

• Ready to use, NO ASSEMBLY REQUIRED!
• 9mm framework close to the wall, like a work of art.
• Providing an outstanding contrast ratio and 178-degree viewing angle.
• Mount your TV screen to the wall. It fits as close as a picture and blends effortlessly with your room.
• With our exclusive wall mount bracket, the 2cm thickness screen can be mounted much closer to the wall.
• Better ALR effect (93%), better visual effect.

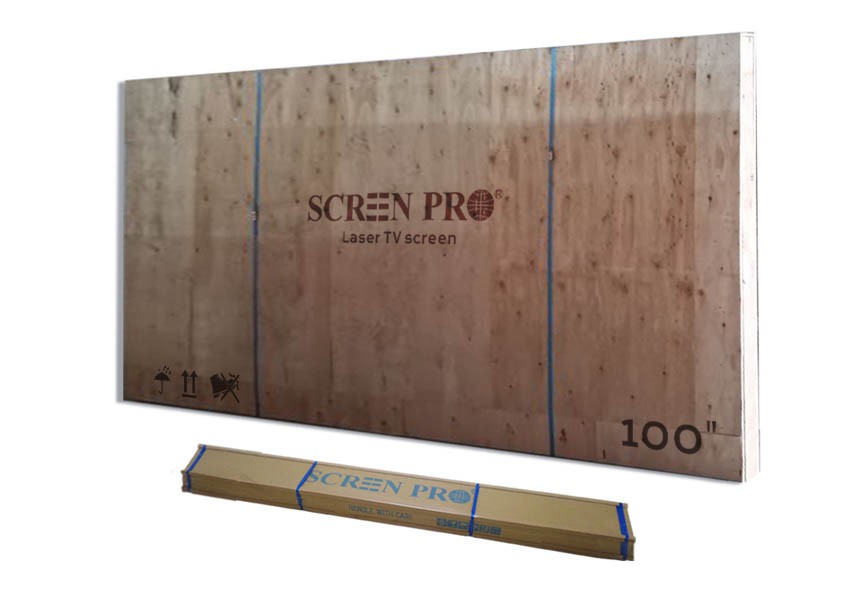

• Please pay extra attention to the transportation size! If you have a tight stair corner, you might have to use a lifting gear up from the ground or roof.

overview & Features specs SCREEN MATERIALS GALLERY FAQs



Providing that giant flat panel TV appearance at a fraction of the cost. One-piece design, aluminum structure, to ensure longer usage life.

Rigid ALR screen designed for UST projectors such as brand:
BenQ |Canon|Epson|Hitachi|LG|Optoma|Sony|ViewSonic etc…

Ready to use, no assembly require

With our exclusive wall mount bracket, the 2cm thickness screen can be mounted much closer to the wall.



SELECT THE RIGHT SCREEN FOR YOUR SPACE

At SCREENPRO, we’re proud of our wide selection of high-quality projection screens. To help you quickly find the right screen model with the right technical capabilities for your Home Theater project, please refer to the chart below.

SIZE <Unit:mm>

FORMAT DIAG.SIZE VIEWING AREA OVERALL DIMENSIONS APPROX. WEIGHT NOTE
(WxH) LxB W1xH1xL1 Kg Lbs
16:9 100" 2214x1245 2232x1263 2358x1361x150
120" 2656x1494 2675x1513 2800x1610x150
135" 2984x1688 3008x1706 3128x1804x150
150" 3320x1867 3338x1886 3464x1983x150
16:10 100" 2154x1346 2172x1364 2298x1462x150
120" 2585x1615 2603x1634 2729x1731x150
135" 2903x1823 2927x1841 3047x1939x150
140" 3015x1885 3033x1903 3159x2001x150



calculator





What is T-Prism?

SCREENPRO® T-Prism is an anti-light feature material, using a special trapezoidal optical physical structure, automatically separates the natural light and ultra-short-focus projector light, and absorbs ambient light on the light-absorbing surface by about 86% to achieve the ambient light rejection function. Using the multi-layer directional coating technology of the reflective surface, the projection screen contrast, color reproduction, gain ratio, and angle of view are optimally combined, and nearly 85% of the projector's light is reflected by the human eye so that the viewer can view it under natural light.
Watching the effect in a day and night environment, even in bright living rooms, it still presents 4K Ultra HD.







T-Prism Screen 4 Advantage

























Remarks:

1.The flame proof is judged according to the safety level of France NF P92-507.

2.A-Washing refers to cleaning the screen surface with a mixture of ethanol  (7%) and ether (3%).

B-Wash with kitchen detergent and water. ( Attention: All screen surfaces should not be cleaned with acidic detergent )

Cleaning steps:

1. For general dust, use a soft brush to clean the screen surface.

2. Please use a soft cloth to dip with mild soapy liquid or neutral detergent.

3. Rough object or cloth may damage the screen surface.

4. Screen surface has optical textures, please wipe the horizontal direction when cleaning the fabric; do not wipeitvertical direction or revolve.

5. Please keep the screen dry.

WARNING!

- Avoid sharp objects from directly touching the screen surface to avoid puncturing or scratching the screen surface.

- Do not use acetone, benzene, alcohol, etc. to clean the screen with organic solvents, which will cause permanentdamage to the screen.

- Avoid scratching the screen surface.






In Ceiling ALR Screen - TR-8K
In Ceiling ALR Screen - TR-8K
In Ceiling ALR Screen - TR-8K
Application
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Home Theater, Conference room etc.
Ceiling Projector
Installation
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Suspending | Wall Mount | Ceiling Mount
Limit Adjustment
Remote
Remote
Remote
Control Options
868MHz IR remote
868MHz IR remote
868MHz IR remote
Low Voltage Trigger
Optional
Optional
Optional
Expansion Port
RS485/RS232、DC AMX
RS485/RS232、DC AMX
RS485/RS232、DC AMX
Available Sizes
100-150 Inch
100-150 Inch
100-150 Inch
Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
E-Limit Tubular Motor
Color Options
White
White
White
Housing
Steel
Steel
Steel

Can I buy a small screen material sample?

Yes, you can buy a screen material sample by clicking HERE.

What is the voltage for SCREEN PRO motorized series? Can it be used abroad?

110v / 220v. No power transformer is required. We make sure that the voltage is right with your shipping address.

How many types of projection screens do you produce?

SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed frame screens, portable folding screens, big-size stage projection screens, etc. HERE.

Can I customize the screen size?

Yes, the size can be customized from 60 inches to 500 inches plus. HERE.

WHAT's Your Specialties?

Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.

Do all types of projection screens have a warranty&How long do you offer for after-sales services?

We provide lifetime maintenance, 12 months for all projector screens (screen material excluded), but you bear all costs. equipment, we will give you the right plug. HERE.

What's your Mode of Transport?

A:Air Transport(By Air)
B:Water/Sea Transport(By Water/Sea)
C:Road/Truck Transport(By Road/Truck)
D:Rail Transport(By Rail)
E:Mail Transport(By Mail)
F:Other Transport

Usually, We ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...

Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.

×
