Base on 600 cm up to 900 cm. Aluminum case dimensions: 8.27" high x 8.27" deep (210cm x 210 cm), which allows a widescreen size range, so the audience can enjoy the dynamic, colorful images.
Applicable: Worship | Theatre | Museum | Auditoriums | Lecture Hall | Ballroom | Boardroom | Cinema
Elegant, smooth aluminum housing developed by Chinese and European engineer co-team. Glorious white powder-coated finish, fully enclosed lower ba,r which has the function of dust prevention. Designed for large occasions, project a huge picture.
Slidable bracket point-to-point installation moves freely, featuring this exclusive product. Available in a wide range of different projection materials, enabling you to customize the finished screen to meet your customers’ requirements.
〈 LATEST VIDEOS | LATEST PROJECT NEWS
SCREENPRO® R&D R8 control system, built-in 868MHz wireless remote control, easy to operate. Low voltage contact interface, supports most common connections, such as DC AMC, and Sync-trigger, easy to wire to the integrated media center.
Screen flatness affects the resolution in your projection. The tab-tensioning system will keep the projection surface under constant tension for a perfectly flat viewing area. A flat projection surface will get the most out of your projector, making sure no pixels get lost or deformed. If the detail is important, a perfectly flat projection area is vital.
All in-ceiling electric projector screens come with a large black border, which can be adjusted with the Allen key(Regulator) supplied with the screen.
Separate detachable inner axis for easy maintenance or motor replacement. Fast and quiet motor (Nm 9 – Rpm 26)
Sync your projector(sync-trigger), and make your home smart the way you like. A small universal device that can synchronize your projector on and off, along with the screen surface going down and up. No need to consider with or without the trigger port.
Search, filter, and compare Topview / Topview PLUS large venue screen sizes. Switch units between millimeters and inches, then export as PDF when needed.
| Format | Diag. Size D |
Viewing Size W × H mm |
Black Border mm | Screen Overall Length L mm |
Screen Overall Height B mm |
Wooden Crate Packaging mm |
Note | ||
|---|---|---|---|---|---|---|---|---|---|
| Top B1 |
Bottom B2 |
L/R A |
|||||||
| 16:9 | 260" | 5755 × 3237 | 200 | 50 | 75 | 6173 | 3747 | 305 × 435 × 6360 | Topview |
| 16:10 | 270" | 5815 × 3634 | 200 | 50 | 75 | 6234 | 4145 | 305 × 435 × 6420 | Topview |
All dimensions are for reference only. Custom sizes, screen materials and installation requirements are available upon request.
| Format | Dig. | Viewing | Border mm | Overall Height A |
Product Dim | Slot Size | N.W kg |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | B3 | B2 | L/R(B1) | L | E | D | L | W | H | ||||
| 4:3 | 200 | 4064 | 3048 | 80 | 80 | 50 | 3413 | 4374 | 156 | 205 | 4474 | 220 | 300 | - |
| 4:3 | 220 | 4470 | 3353 | 80 | 80 | 50 | 3718 | 4780 | 156 | 205 | 4880 | 220 | 300 | 69.4 |
| 4:3 | 250 | 5080 | 3810 | 80 | 80 | 50 | 4175 | 5390 | 156 | 205 | 5490 | 220 | 300 | 79.4 |
| 4:3 | 275 | 5588 | 4191 | 80 | 80 | 50 | 4556 | 5898 | 156 | 205 | 5998 | 220 | 300 | 88.3 |
| 4:3 | 300 | 6096 | 4572 | 80 | 80 | 50 | 4937 | 6406 | 156 | 205 | 6506 | 220 | 300 | 97.5 |
| 16:9 | 200 | 4428 | 2491 | 200 | 80 | 50 | 2976 | 4738 | 156 | 205 | 4838 | 220 | 300 | 65.0 |
| 16:9 | 220 | 4870 | 2740 | 200 | 80 | 50 | 3225 | 5180 | 156 | 205 | 5280 | 220 | 300 | 71.5 |
| 16:9 | 250 | 5535 | 3113 | 200 | 80 | 50 | 3598 | 5845 | 156 | 205 | 5945 | 220 | 300 | 81.6 |
| 16:9 | 275 | 6088 | 3424 | 200 | 80 | 50 | 3909 | 6398 | 156 | 205 | 6498 | 220 | 300 | 90.4 |
| 16:9 | 300 | 6641 | 3736 | 200 | 80 | 50 | 4221 | 6951 | 156 | 205 | 7051 | 220 | 300 | 99.6 |
| 16:10 | 200 | 4308 | 2692 | 200 | 80 | 50 | 3177 | 4618 | 156 | 205 | 4718 | 220 | 300 | 64.5 |
| 16:10 | 220 | 4739 | 2962 | 200 | 80 | 50 | 3447 | 5049 | 156 | 205 | 5149 | 220 | 300 | 71.0 |
| 16:10 | 250 | 5385 | 3365 | 200 | 80 | 50 | 3850 | 5695 | 156 | 205 | 5795 | 220 | 300 | 81.1 |
| 16:10 | 275 | 5923 | 3702 | 200 | 80 | 50 | 4187 | 6233 | 156 | 205 | 6333 | 220 | 300 | 90.0 |
| 16:10 | 300 | 6462 | 4039 | 200 | 80 | 50 | 4524 | 6772 | 156 | 205 | 6872 | 220 | 300 | 99.2 |
Dimensions are shown in millimeters unless otherwise specified. Please confirm final dimensions with SCREENPRO before ordering.
Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.
Matte white projection fabric for general-purpose front projection applications.
Micro-perforated acoustic transparent fabric for behind-screen speaker setups.
Long-throw ALR material designed to improve contrast under ambient light.
High ALR micro-perforated fabric for large-format professional projection.
Rear projection fabric for professional installations requiring hidden projector placement.
Yes. SCREENPRO TT Series supports custom sizes, screen materials, installation structures and OEM/ODM solutions for commercial AV and large venue applications.
TT Series is designed for auditoriums, conference rooms, education, churches, cinema halls, command centers, event venues and other large format projection environments.
Multiple projection materials are available including standard PVC, Acoustic Transparent, Rear Projection, High Gain, Perforated and Ambient Light Rejecting (ALR) fabrics.
Yes. SCREENPRO offers woven and perforated acoustic transparent materials that allow speakers to be installed behind the screen while maintaining excellent image performance.

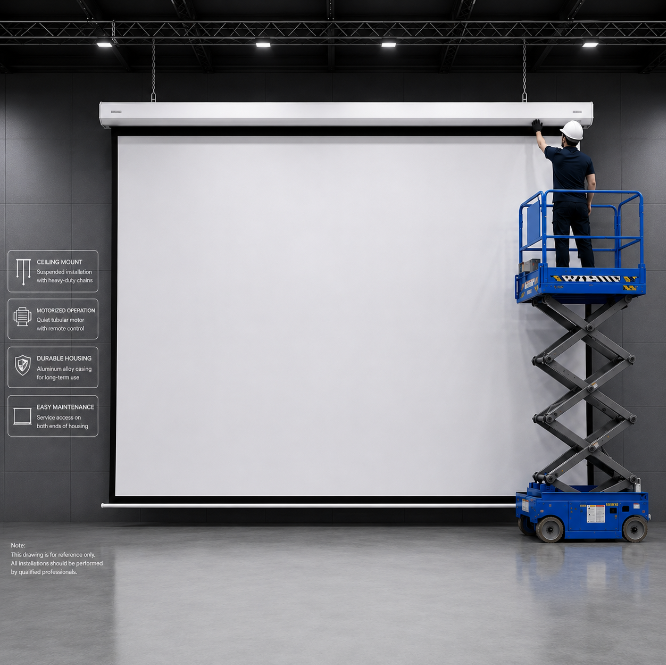

Yes. TT Series supports wall mounting, ceiling mounting, suspended installation and customized installation structures depending on project requirements.
Yes. TT Series is engineered for large format projection applications and supports oversized custom dimensions for commercial and professional AV installations.
Depending on configuration, TT Series can support wall switch control, IR remote, RF remote, trigger integration and RS232 control for commercial AV systems.
Yes. SCREENPRO provides OEM and ODM manufacturing services including customized branding, packaging and project-based engineering support.
Everything you may want to know before choosing a SCREENPRO® projection screen.
No. ALR materials are not recommended for the Quick-Fold series because folding the screen may create creases in the material.
Yes. You can purchase a screen material sample here: Material Sample.
For a primarily nighttime viewing setup, we generally recommend a high-contrast grey screen or an ALR screen, depending on your projector type and room lighting conditions.
Since the screen will retract in front of your OLED TV during projector use, a motorized drop-down or floor-rising screen setup would work well with your room configuration.
SCREENPRO motorized screens are available in 110V / 220V. No power transformer is required. We will ensure the correct voltage is supplied according to your shipping address.
SCREENPRO® mainly produces motorized projection screens, tensioned projection screens, fixed-frame screens, portable folding screens, large-sized stage projection screens, and customized projection solutions.
For project requirements, please contact us.
Yes. SCREENPRO supports customized screen sizes from 60 inches to 500 inches and above, depending on the screen type, material, and installation requirements.
Please contact us for custom sizing.
SCREENPRO specializes in projection screens, motorized screen solutions, theater supplies, projection systems, audiovisual accessories, ALR UST screens, electric screens, manual screens, mobile screens, fixed-frame screens, in-ceiling screens, and customized projection solutions.
We support air transport, sea transport, road transport, rail transport, mail transport, and other shipping methods depending on the destination and order requirements.
For most international orders, we may ship via DHL, FedEx, UPS, TNT, or other suitable carriers. For large-size or project orders, air freight or sea freight can also be arranged.
