How To Hide My Screen?

Name: SCREENPRO Motorized ALR Screen and In-Ceiling ALR Screen Comparison
Brand: SCREENPRO

Views: 2234 Author: SCREEN PRO Publish Time: 2011-06-01 Origin: Site

Before Building a Ceiling Pocket for Your Projection Screen

You might want to hide your projection screen in the ceiling to create a cleaner, more compact, and Zen-style space. Before creating a ceiling pocket during construction, two key points should be considered in advance:

First: Do you have enough ceiling height?
Second: Do you need the screen to be fully enclosed when retracted?

The SCREENPRO in-ceiling series has visible side “wings”, so the ceiling pocket requires more precise planning and installation space.

If you are still worried about the screen’s extended height, we also offer a Full-Screen custom option: HERE

SCREENPRO in-ceiling projector screen ceiling pocket installation concept for ALR screen planning

SCREENPRO motorized ALR screen installation height comparison for home theater ceiling design

Comparison	Motorized ALR Screen - AJ	In-Ceiling ALR Screen - AI
Product Name	MOTORIZED ALR SCREEN - AJ	IN-CEILING ALR SCREEN - AI
Projection Type	A / B (what is it?)	A / B (what is it?)
Color Option	White / Black	White
Video Link	► Take A Peek	► Take A Peek

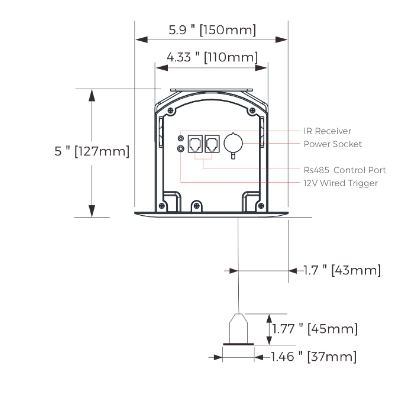

Section Size	Jampo: 88(+15) x 96(+15) / mm Jampo L: 150(+20) x 150(+20) / mm	In-ceiling: 110 x 127(+10) / mm

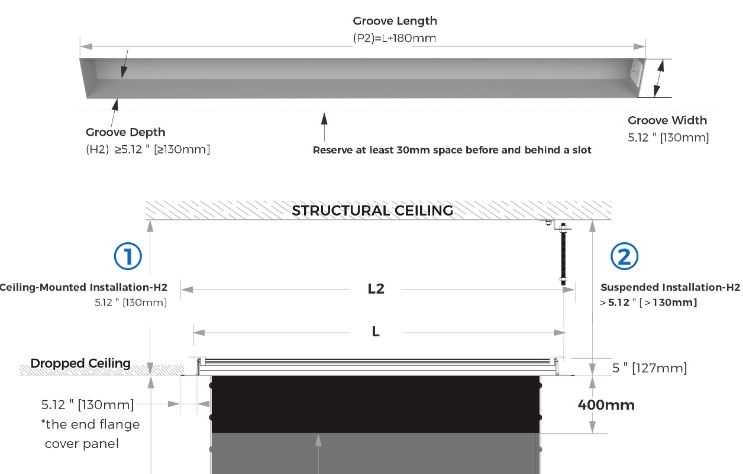

Construction Detail	Jampo L series screen size ＞135 inch in 16:9 ratio, the bottom bar has full retraction. --------------------- Jampo series bottom bar, 40mm height, hangs outside of the housing.
